Output: | 2000W; | 24PIN *1PC: | SATA *10; |
MOQ: | 1PC; | Output Frequency: | 63HZ; |
Packaging Detail: | 6pcs in carton; | Single package size: | 23X15X8.7 cm; |
Input Voltage: | 220V; | Output Voltage: | 170-240V; |
Single gross weight: | 4.5 KG; | Package Preview: | ; |
Model Number: | 18196 2000W PSU; | Output Type: | Multiple; |
Brand Name: | OEM; | Selling Units: | Single item; |
Place of Origin: | Guangdong China; | BIG 4PIN *7: | 8PIN*1; |
Input: | 100-240VAC 50/60Hz; | Output Power: | >500W; |
Output Current: | 12A; |

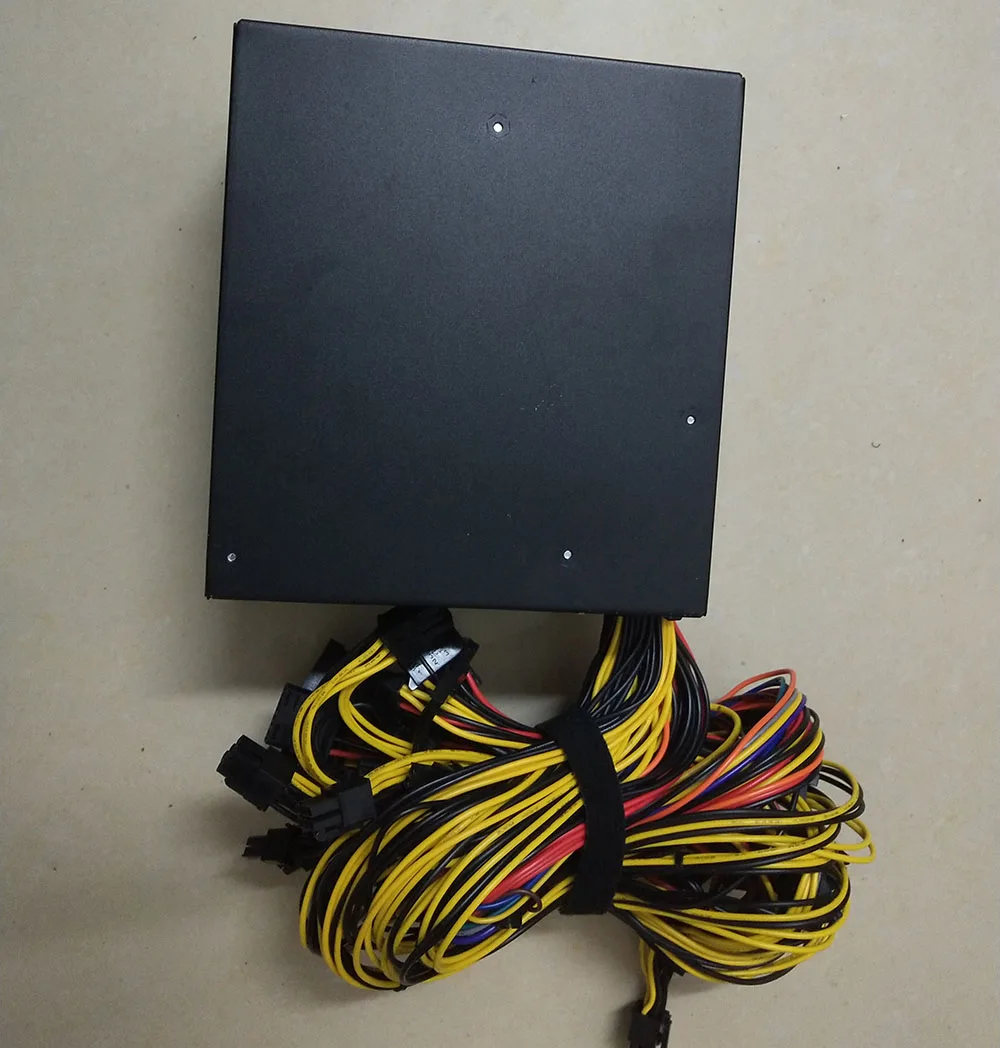

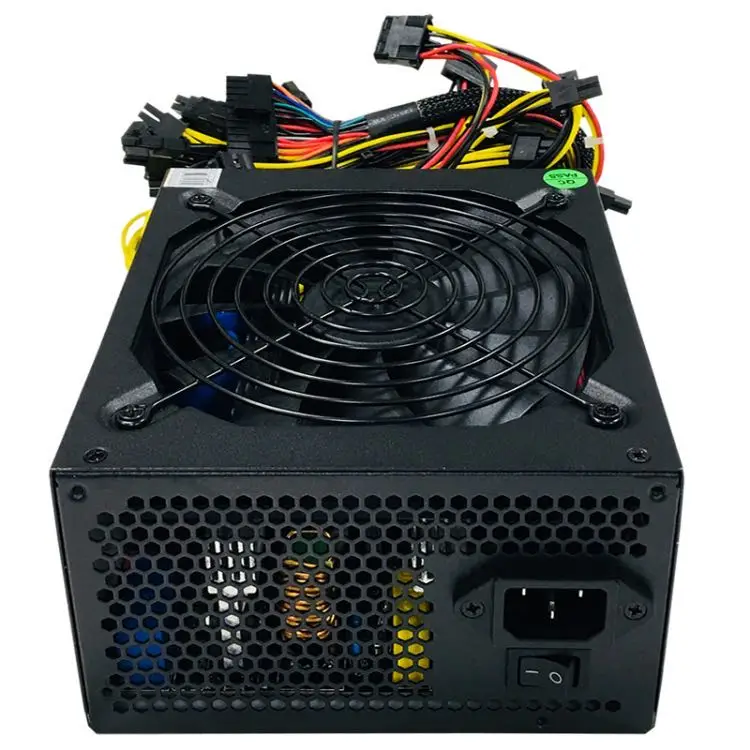

2000w psu
Power level: 90 PLUS GOLD
Input voltage: 176VAC~264VAC
Input current: less than 12A
Input frequency: 47~60
Conversion efficiency: more than 90%
Grounding resistance value: less than 100m Omega
Power factor: more than 0.98
Overvoltage protection: Yes
Short circuit protection: Yes
Over power protection: Yes
Product size: long 230mm* wide 150mm* high 87mm
environment condition
Working temperature: -10 C ~50 C
Storage temperature: -20 C ~85 C
Working humidity: 10%~90%RH, altitude less than 2000m
Storage humidity: 5%~95%RH
Cooling mode (8CM fan):
The line interface is straight out:
Interface:
Main Board:24PIN*1 8pin *1
Video Cards:6+2PIN*12pcs
SATA*10pcs
Big 4Pin *7pcs
Support Graphics Card Type & Quantity:
Graphics Card 1080ti, 1070ti, 10601050 rx580 570480470380...
