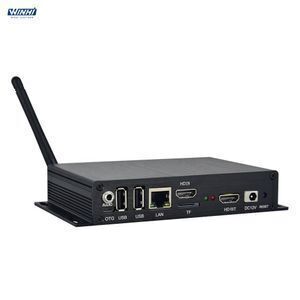

MPC3368-HD HD Video Input and 2160P Output Network CMS 4K Media Player

Supplier: Ningbo Winhi Electronic Co., Ltd.
Region: Zhejiang, China
Contact: Ms Gloria Ren
Price: $124.30 /piece
Min. Order: 1 piece

Click here to contact

Product details

Decode Ability:	1080p (Full-HD);	WiFi:	Wireless Protocol 802.11b/g/n;
Certification:	FCC,ce,UL,RoHS,PES;	MPC3368-HD:	4k media player;
Package Preview:	;	Single gross weight:	1.0 KG;
Type:	HIGH DEFINITION;	LAN:	10/100M Adaptive Ethernet;
Connectors:	usb;	Recording:	No;
Selling Units:	Single item;	Place of Origin:	Zhejiang China;
DDR:	DDR-III 1GB(Option: 2GB);	NAND:	Default is 16GB NAND Flash;
Model Number:	MPC3368-HD;	USB 2.0:	2*USB 2.0 Host Interface;
Power Input:	DC 12V Input;	Photo Support:	BMP,JPEG,PNG,GIF,WEBP;
Packaging Detail:	Welcome customer design;	Single package size:	27X17X9 cm;
Brand Name:	OEM ODM WINHI;

HD Video Input and 2160P Output Network CMS 4K Media Player

Model:MPC3368-HD

Item:4K UHD HD Input Android Network Publishing Video Player

Product Description

Platform and configuration: 1. Hardware Platform: RK3368 Coretex A53 Eight-core, Dominant frequency 1.6GHz 2. Software Platform: Android 5.1 3. Memory: DDR-III 1Gbyte(2GB Optional)
Support 4K UHD Video Decoding
Support HD-MI Output and Input
Screen display area can be devided by yourself, simultaneously achieve 2 Video + N Pictures + N Logo + N Subtitles + N Times + N Weather + N Pages
Supports local playback, remote playback, loop playback, timer playback, automatic content update, auto turn ON/OFF and other CMS operations control
CMS function including material management, template design, program preview, terminal grouping, program upload/play, play statistics, alarm, rights management, etc.
Powerful interactive query editing function, support for picture sliding and jog switch within region, area jump
Support setting the playback task freely, automatically loop playback by day, by week, by month and other modes
Display Content includes web page, video, picture, audio, text, time, date, weather, news, etc.
Built-in with a variety of transition effects
Multi-language OSD: English, French, Spanish, Simplified Chinese, Traditional Chinese
Supports extended functions: camera, microphone, NFC, printer, numeric keypad, fingerprint, scanning gun, touch screen, human body infrared sensor, gyroscope, gravity sensor, etc.
Same series: MPC3188 (HD network player), MPC3288 (4K UHD network player)
Our professional R&D team can customize personalized products for you.

HARDWARE INDEX	CPU	RK3368 Coretex A53 Eight-core, Dominant frequency 1.6GHz
	DDR	DDR-III 1GB(Option: 2GB)
	NAND	Default is 16GB NAND Flash
	HD-MI OUT	HD-MI 2.0 Standard Display Interface, maximum support is 2160P Output
	HD-MI IN	HD-MI 1.4a Standard Input Interface, maximum support is 1080P Input
	Video Support	MPEG-1/2,MPEG-4,H.264/AVC,MVC,H.265/HEVC,GOOGLE VP8,H.263,VC-1,MOTION JPEG
	Photo Support	BMP,JPEG,PNG,GIF,WEBP
	Audio Support	MP1, MP2, MP3,WMA,WAV,APE,OGG,OGA,FLAC,AAC,M4A
	USB 2.0	2*USB 2.0 Host Interface
	LAN	10/100M Adaptive Ethernet
	TF Card	1 Standard TF Card Interface, maximum support is 128G
	WiFi	Wireless Protocol 802.11b/g/n
	Bluetooth(Optional)	Built-in high-performance serial port BT module, support V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
	3G/4G Network(Optional)	External USB_3G/4G Module
	Key	Power Switch and Reset Button (operating status manually reset)
	System Update	SUPPORT USB AND NETWORK UPGRADE
I/O	Power Supply	Input: AC 100~240 V 50/60Hz Output: DC 12V, 1.5A
Others	Shell Color	Metal Black Case
	LED	Power Led, Ethernet Led, IR Led
	IR	Standard Infrared Remote Control Interface
	Storage Temperature	-10℃~90℃
	Operating Temperature	0°~70°
	Operating Humidity	0%~95%, no condensation

Pictures

Same Series Products

About us

FAQ

Q:Can I buy button QTY below this order link?

A:Sure, pls contact our sales person to modify the order for you.

Q:Will the product come with a SD card?

A:Normally no SD card, pls see the description in accessories. If you want to order, pls contact our sales person for order link.

Q:Do you have other button type?

A:Button options:

16#metal blue led button,16#metal no led button,16#red plastic led button,16#red plastic led button.If you have special requirement,pls contact our sales person.

Q:When will make delivery?

A:Sample Order: 2-5 working days after receipt of the full payment.

Bulk/OEM Order pls contact our sales person.

Q:What’s your After-sales Service?

A:1 year free warranty that not caused by human damages;

If you have any problem in using or about product,we will offer immediate technical support and quick solution,as an experienced manufacturer,you can rest assured of the quality and after-sales service.
