Condition: | New; | Brand Name: | mingyang; |
Core Components: | rollers and gears; | Local Service Location: | None; |
Final briquettes size: | 30-70mm; | Marketing Type: | Hot Product 2019; |
Weight: | 1000kg; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
Machinery Test Report: | Provided; | Port: | Any ports in China; |
name one: | small BBQ charcoal briquette making machine; | name two: | coal ball press machine; |
Briquette shape: | ball, square, pillow or bread shape etc; | Key Selling Points: | High Productivity; |
name five: | Charcoal briquette machine manufacturer; | Video outgoing-inspection: | Provided; |
name seven: | coal briquette press machine; | name six: | ball press machine for coal powder; |
name three: | ball press machine; | Warranty of core components: | 2 years; |
Showroom Location: | None; | Certification: | CE; |
name four: | Biomass charcoal and coal briquette machine; | Warranty: | 1 Year; |
After-sales Service Provided: | Engineers available to service machinery overseas,Video technical support,Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service; | Supply Ability: | 100 Set/Sets per Month small BBQ charcoal briquette making machine; |
Voltage: | 380v, 50hz 3phase; | Dimension(L*W*H): | 1.45*1.52*1.75m; |
Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; | Place of Origin: | Henan China; |

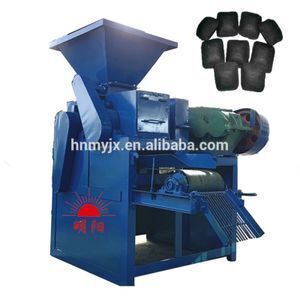

Factory Supply Small Bbq Charcoal Briquette Making Machine Price
hot selling :
1. The general introduction of the small BBQ charcoal briquette making machine price
Our briquette machine are rollers pressing type. This type of briquette presses can apply higher pressures and thus produce higher density briquettes . These briquettes can be designed of oval shape, egg shape, pillow shape, square shape etc. This machine is widely used in coal industry and metallurgy industry.
2. The raw material of the small BBQ charcoal briquette making machine price
A: Coal/coke/charcoal powder.
B: Metal powder: Iron powder, magnesium oxide powder, copper powder, chromium ore, lead, zinc scrap, bauxite, nonferrous metal powder, silicon manganese alloy powder etc.
C. Mineral powder: aluminum powder, toner, gypsum, sludge, desulphurization gypsum powder etc
3. The working principles of the small BBQ charcoal briquette making machine price
This series of Briquette Ball Press will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.
4. The specifications of the small BBQ charcoal briquette making machine price
Model |
Roller Diameter(mm) |
Power (kw) |
Capacity (t/h) |
YQ290 |
290 |
5.5 |
1-3 |
YQ360 |
360 |
7.5 |
4-6 |
YQ430 |
430 |
15 |
6-8 |
YQ 500 |
500 |
18.5 |
8-10 |
YQ650 |
650 |
25 |
10-15 |
YQ800 |
800 |
30 |
15-20 |
YQ1000 |
1000 |
45 |
22-30 |
5. The shape of the final briquettes:round ball shape ,oval shape ,pillow shape ,egg shape ,oblateness ,square shape etc.
Note: the briquettes shape and size are defined by users

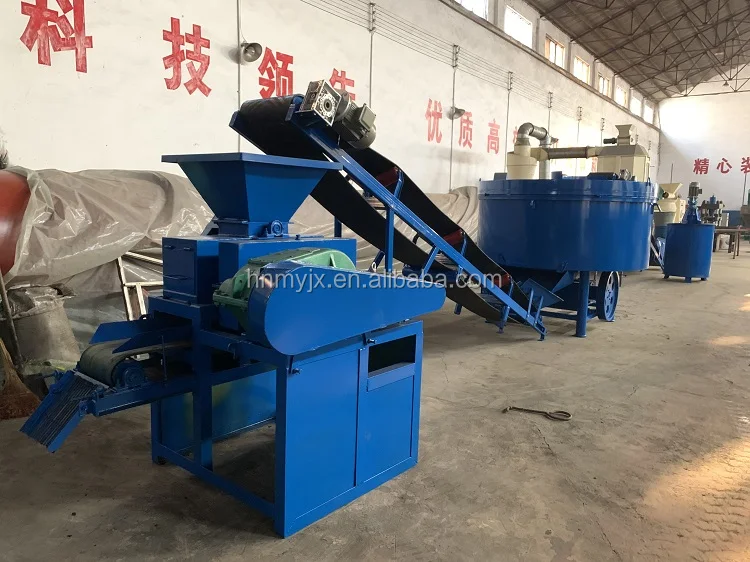

6. The production line of the small BBQ charcoal briquette making machine price
7. The transportations of the small BBQ charcoal briquette making machine price
single machine use wooden case and for the whole production line in container
8.we have different types of the charcoal briquettes machines, if you need other final charcoal briquettes :
if you need more photos and video , please click here to contact me :

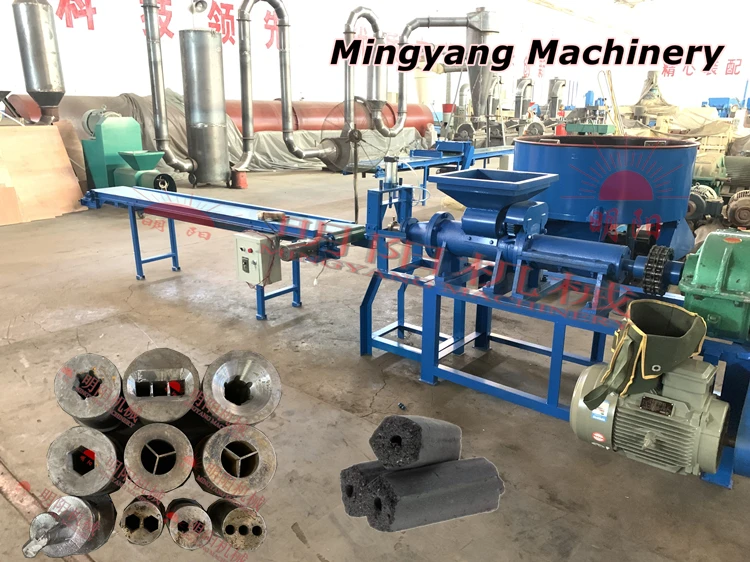

if your raw material is wood sawdust , you need use our wood briquettes machine to get the wood sawdust briquettes :
if you need more photos and video , please click here to contact me :
if you want to get the charcoal briquettes from your wood sawdust briquettes made from above sawdust briquettes machine :
if you need more photos and video , please click here to contact me :

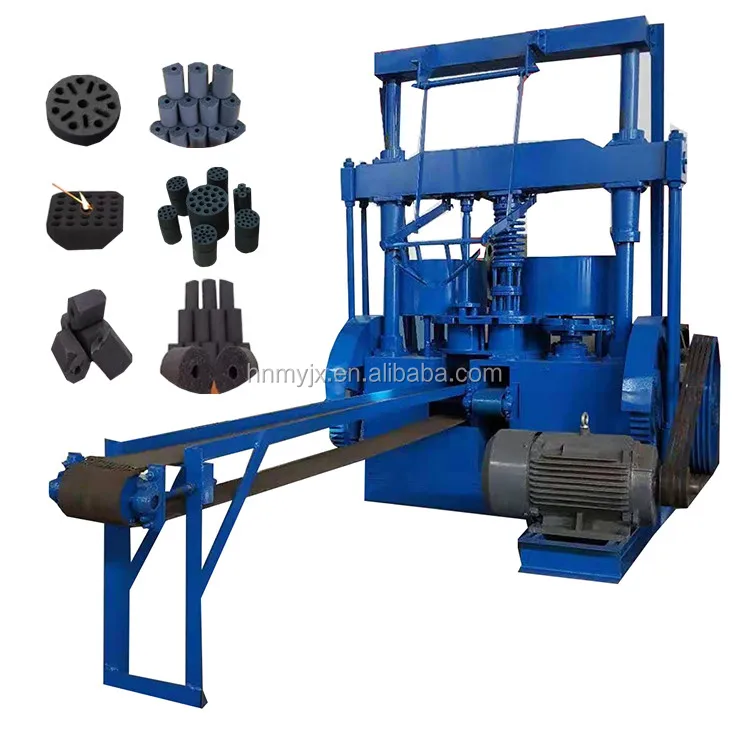

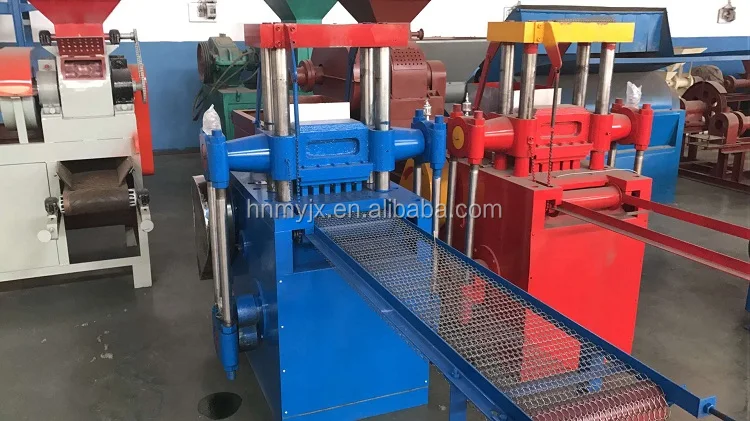

if you want to get the stick shape charcoal coal briquettes , you need use the stick shape charcoal coal briquettes machine below :
if you need more photos and video , please click here to contact me :
if you need more photos and video , please click here to contact me :

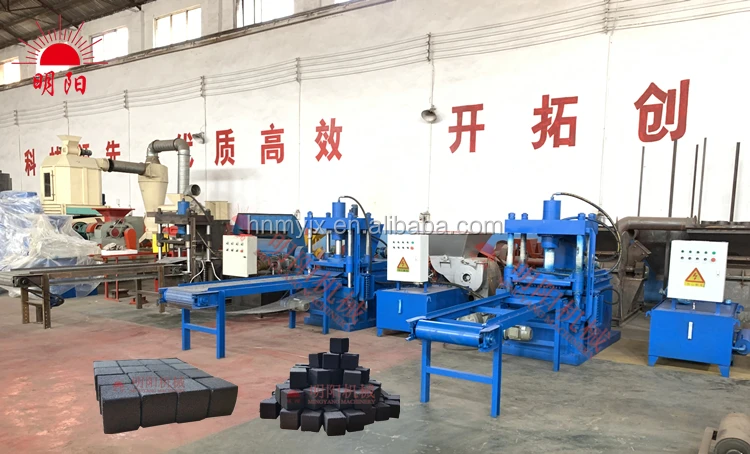

if you want to get the shisha briquettes , you need use our shisha charcoal briquettes machine below :
if you need more photos and video , please click here to contact me :
machines in our warehouse ready for the delivery :
Certifications for the machines :
