Brand Name: | EDUP; | Wi-Fi Transmission Standard: | 802.11n; |
Max. LAN Data Rate: | 300Mbps; | 5G Wi-Fi Transmission Rate: | None; |
Application: | Home; | Certification: | CE FCC RoHS; |
Peak rate: | 300Mbps Cat4; | Function: | FireWall,Voip,QoS,VPN; |
Wired Transfer Rate: | 10/100Mbps; | LTE CHIP: | Marvell Quectel; |
Share: | up to 32users; | Encryption Type: | WPA2-PSK,WPA2,WPA-PSK,WPA; |
Interface: | 1*Wan/ 2*Lan; | Place of Origin: | Guangdong China; |
Supports WDS: | No; | Chipset: | MTK7628; |
With Modem Function: | No; | Supports WPS: | No; |
LAN Ports: | 2; | Type: | Wireless; |
Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Packaging Detail: | Quantity:500PCS/CTN Ctn Size:56.5X45.5X50CM Weight:0.05KGS/PC; 26KGS/CTN; |
Standards And Protocols: | Wi-Fi 802.11b,Wi-Fi 802.11g,Wi-Fi 802.11n; | Product name: | EP-KW7503; |
WIFI Standard: | Support 802.11 b/g/n; | Wi-Fi Supported Frequency: | 2.4G; |
Package Preview: | ; | SIM card slot: | Standard USIM MicroSD; |
Products Status: | Stock,New; | Supply Ability: | 6000000 Piece/Pieces per Month; |
Frequency: | 2.4GHz; | Port: | Shenzhen/ Hongkong; |
2.4G Wi-Fi Transmission Rate: | 300 Mbps; | WAN Ports: | 1; |
300Mbps MTK7628 b310 lte CPE Wifi Router 4G LTE With SIM Card Slot
Router hardware |
||
processor |
MT7628NN |
|
Power input port |
DC 12V---1A |
|
WAN Port |
1 x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u) |
|
LAN Port |
2 x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u) |
|
WPS/Reset Buttons |
Sgort press: WPS,Long press: reset(Used to restore the factory configuration of the router.) |
|
Power button |
Router's power switch (not required) |
|
LED indication |
1,power supply 2,System (dial status, indiscriminate wired or wireless) 3,3/4G:Blue-green light indicates 3G, 4G status 4,WIFI Indication 5,WAN Interfaces; 6,LAN1; 7,LAN2; |
|
Storage |
SDRAM: 64M Bytes Nor Flash: 8M Bytes |
|
Wireless parameters |
||
WIFI Frequency range |
FCC: 2412-2462MHz(Ch1-Ch11) ETSI: 2412-2472MHz(Ch1-Ch13) |
|
Mobile network frequency |
FDD: B1 B3 B5 B8, TDD: B38 B39 B40 B41 TDS-CDMA: B34 B39 WCDMA: B1 B8 |
|
Transmission rate |
11n:270/243/216/162/108/81/54/27Mbps 135/121.5/108/81/54/40.5/27/13.5Mbps 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps |
|
11g:54/48/36/24/18/12/9/6M(Adaptive) |
||
11b:11/5.5/2/1M(Adaptive) |
||
Number of working channels |
13 |
|
Spread Spectrum Technology |
DSSS(Direct Sequence Spread Spectrum) |
|
Data modulation method |
BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM) |
|
Sensitivity @PER (error packet rate) |
270M:-61dBm@10% PER;130M: -61dBm@10% PER;108M:-61dBm@10% PER;54M:-65dBm@10% PER;11M:-85dBm@8% PER;6M:-88dBm@10% PER;1M:-90dBm@8% PER |
|
Transmission distance |
Up to 50 meters in the room and up to 200 meters in the outdoors (depending on the environment) |
|
RF Power |
11n : 15±dBm; 11g : 17±1dBm; 11b : 19±1dBm(Typical value) |
|
LTE related hardware |
||

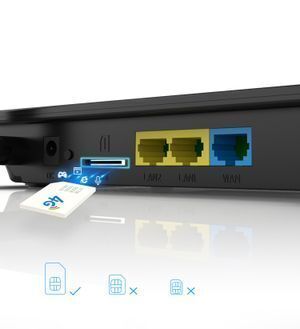

SIM Card Slot |
Rear flip SIM card Slot |
|
Antennas |
External 4 antenna, corresponding to 4G main antenna, wifi dual antenna |
|
Router software features |
||
IP Address |
Static or dynamic |
|
PPP over Ethernet |
YES |
|
The maximum number of users |
32 (Simultaneous Internet access) |
|
Routing Protocol |
Static route, RIP1/RIP2 |
|
Configuration & Management |
Based on WEB interface management (HTTP) |
|
DHCP |
Support Server and Client |
|
Firewall protection |
Built-in NAT firewall |
