ODOELEC High Load Current High Voltage Auto DC Contactor Relay EVQ200 450Vdc 200A 200 amp contactor

Supplier: Yueqing Wodu Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms Kaylin Li
Price: $5.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Product Name:	200A DC Contactor;	Coil Voltage:	12-900VDC;
Model Number:	ODO-200A;	Place of Origin:	Zhejiang China (Mainland);
Certificate:	CB CE ROHS;	Supply Ability:	10000000 Piece/Pieces per Month;
Contact form:	1H;	Electrical life:	20.000times;
Packaging Detail:	standard export package or as per your repuirement;	Phase:	2;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;	Brand Name:	odoelec;
Main Circuit Rating Current:	200A;	Rated load current:	200A;
Electricity Type:	DC;	Port:	Ningbo or Shanghai;
Number of Pole:	2;	Main Circuit Rating Voltage:	High Voltage;
Mechanical life:	1,000,000 times;

Product Description

High Load Current High Voltage Auto DC Contactor Relay EVQ200 450Vdc 200A 200 amp contactor

ODOA series HV DC Contactor are widely used in Electric Vehicles, hybrid electric vehicles, fuel cell cars, construction machinery, photovoltaic power generation, wind power, battery charging and discharging system, dc voltage power supply control, and other areas of the dc high voltage.

Feature

High Load Current High Voltage Auto DC Contactor Relay EVQ200 450Vdc 200A 200 amp contactor

Used in electric vehicles, hybrid electric vehicles, construction machinery, photovoltaic, DC voltage power supply control system.

1. Nonpolarity-The connection of contact and coil need to be nonpolarity.
2. Epoxy Sealant-Sealed by epoxy resin. It can work in the hostile environment, Coil and contact cannot be oxidized and polluted.
3. Efficient Coil – Optional built-in energy-saving coil,retentive power is only 1.7-2.0W, counter electromotive force is 0V.
4. ROHS authentication is totally meet the requirement of ROHS, It is benefit to body health and the environment protection.
5. Compare to the similar products, this product is smallest and ligtest.
6. The coil has no counter-force of electromagnetism.

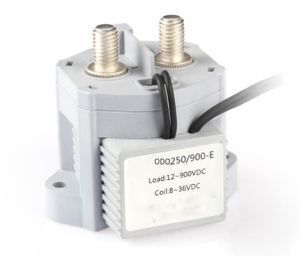

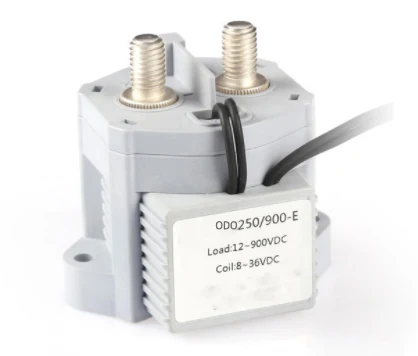

Detailed Images

High Load Current High Voltage Auto DC Contactor Relay EVQ200 450Vdc 200A 200 amp contactor

1) Rated Load voltage: 12-900VDC

2) Contact circuit rated load current: 200A

3) Leading-out: M8 internal thread

4)IP grade:IP67

Parameters	Standard Type Voltage
Parameters	12VDC	24VDC
Work voltage	9~16	18~32
Max voltage	16	32
Action voltage	≤9	≤18
Release voltage	≥1	≥2
Coil Resistance	25	94
Min start current	0.48A	0.26A
Transient surge current	-	-
Average holding current	0.48A	0.26A
steady state time	5.8W	6W
Actuation time	≤50ms	≤50ms
Release time	≤10ms	≤10ms
Bounce time	≤5	≤5

Parameters

Contact form	1H	Leading-out	M8 internal thread
Contact resistance	0.2 mΩ(200A)	Rated load voltage	12~900VDC
Maxmum switching current	2000A 320VDC ( over 1 times)	Maximum Switching power	640KW
Rated load current	200A	Rated Electric life	10000 (times)
Min load	1A12VDC	Standards for electric current (10mm2 line0	200A
short time overload current		320A 5min, 400A 2min 500A 30s
