Packaging Detail: | Kraft Paper; | Service: | OEM/ODM; |
Keyword: | wirecast for streaming live; | Audio encoding: | AAC/MP3/MP2; |
Audio rate: | 64Kb/s-384Kb/s; | Single gross weight: | 1.0 KG; |
Selling Units: | Single item; | Network protocol: | Supports RTSP, HTTP, RTMP, UDP, multicast and unicast; |
Package Preview: | ; | Certification: | FCC, CE, FCC; |
OSD: | LOGO, size, etc.; | Output: | RJ45 Ethernet; |
Model Number: | HV-HE01; | Size after encoding: | 640x360-1920x1080 (adjustable); |
Input resolution: | 1920x1080@60Hz; | Encoding standard: | H.265/H.264; |
Single package size: | 27X20X8 cm; | Brand Name: | CreHiVi/OEM; |
Place of Origin: | Guangdong China; |

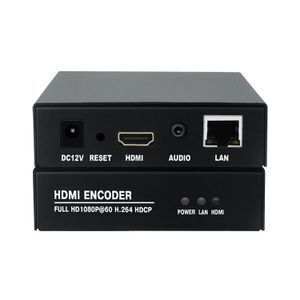

HD IP Video Encoder H.264/H.265 Encoder for live streaming
We also offer IP encoders support one-channel, four/eight channels HDMI/SDI/VGA optional, output dual stream H.264/H.265 format, audio ACC format. Users can adjust in the web control panel. The product is highly integrated, with low latency,low rate, low delay.It supports RTSP, RTP, HTTP, RTMP, UDP protocols.
Five service butlers:
1.IP Matrix on Monitoring system
2.Hotel IPTV system live solution
3.Video conferencing system
4.Educational Recording System Solution
5.Digital Signage HD stream server
Parameters:
Input |
1-channel HDMI input |
|
Output |
1-channel IP output |
|
Video |
Input resolution |
1920x1080/1680x1050/1280x720/1600x1200/960x540/720x576/704x576, etc. |
Encoding standard |
H.264/H.265 |
|
Size after encoding |
640x360-1920x1080 (adjustable) |
|
Code rate |
CBR/VBR control 32KBIT/S~32MBIT/S |
|
Frame rate |
30/60 frame |
|
Audio |
Input |
1-channel HDMI embedded audio |
Audio encoding |
AAC/MP3/MP2 |
|
Audio rate |
64Kb/s-384Kb/s |
|
Sampling rate |
32000, 44100 etc |
|
OSD |
Text, picture |
|
IP output |
1 RJ 100M Ethernet port, TS standard stream, four code streams, Onvif protocol. 265 version is 1000M. |
|
System |
Network protocol |
Supports RTSP, HTTP, RTMP, UDP, multicast and unicast |
Configuration management |
Support IE configuration, remote upgrade |
|
Common |
Power supply |
220/110V-2A |
Power consumption |
5W |
|
Size |
100mm x 70mm x 32mm (LxWxH) |
|
Working temperature |
-20℃-+ 60℃ |
|
Working humidity |
<90%, non-condensation |
|
Weight |
0.2KG |
|
Our company have the right to adjust the parameter without notice, if has any question, please contact us for update. |
1.Can this support HLS protoclo?
Yes, it can support with HL S(Any iOS browsers are able to have streams from IPTV Streaming Encoder in Any-time, Anywhere without install any software players),HTTP/UDP/RTSP, RTMP(Best choice for the Facebook,YouTube Live) ONVIF protocols.
2. Can this device stream to the Facebook, YouTube and so on?
Our Streaming encoder series products have been working closely with the world-renowned StreamingMedia Platform for many years. With perfect compatibility,It could be pushing stream to the Facebook, YouTube,Ustream, Wowza server
3. How and where can I set up the device? Is by software?
The Streaming encoder is set up by Web-management. lt's very easy for operation.
An User Manual which has detailed t-utorial will be shipped with encoder. Also our professionaltechnical are willing to be of help
4.How is the delay?
Over the years, our R&D department keeps working on decrease the delay. Now the delay of our encoder is lessthan 100 msec(teseted by LAN, except the HLS protocol).If the result turns out the delay is more than that, could becaused by the internet or decoder.
