TS Protocols: | HTTP / HLS / FLV / RTSP / UDP / RTMP / ONVIF; | Selling Units: | Single item; |
Place of Origin: | Guangdong China; | Video encoding: | AVC/H.264; |
Brand Name: | Mine; | display output: | hdmi to ip output; |
output interface: | RJ45; | Input: | 4 channel hdmi input; |
warranty: | 1 year; | Model Number: | 5001; |
Single package size: | 20X15X5 cm; | Application: | hotel iptv solution; |
Certification: | ce; | Single gross weight: | 0.5 KG; |
Packaging Detail: | retailed carton box; |
4K H.265 4CH HDMI Video Encoder - which supports input HDMI max resolution at 3840×2160@30fps, and output stream resolution up to 3840×2160@30fps. This Encoder works with HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF. Also the Encoder works with online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc.
Product features:
1. Support 1-4 Channels HDMI input and encoding simultaneously.
2. Adopts professional encoding chip, embedded HiLinux System, high stability and efficiency.
3. Friendly Web Control UI, default IP is 192.168.1.168.
4. Support HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF.
5. Support output Multi RTMP(S) (Main stream & Sub stream) to different Media Streaming Server.
6. Provide custom resolutions, Main Stream Preset Resolutions – 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270, etc.
7. Support Text and image insert as Stream Logo for Main stream & Sub stream.
8. Support TF/USB Recording.
9. Automatic detect the input video signals, output stream will show no signals when input signals interrupted.
10. Output Stream bitrate adjustable.
11. Support External Analog audio input.
12. Support Audio digital gain.
13. Support firmware upgrade.
14. Support remote control via router port forward.
Specification:
Interfaces |
|
Video Input |
4*HDMI input, HDMI 1 & 2 Max supports 3840*2160@30FPS, HDMI 3 & 4 Max @1080P 60FPS |
Audio Input |
HDMI embed audio & 2* Analog audio Line-in |
Ethernet |
1000Mbps, RJ-45 |
WiFi |
Option – 2.4G |
Video Encoding |
|
Video Format |
H.264/AVC High/Main/Baseline Profile H.265/HEVC main profile MJPEG/JPEG baseline |
Video Resolution |
support 2 channels 4k@30fps plus 2 channels 1080p@60fps or 4 channel 1920x1080P@60fps |
Video Bitrate |
0.1~32Mbps |
Video FPS |
5-60FPS |
Bitrate Control |
VBR/CBR |
Streaming Protocols |
HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) ONVIF |
Audio Encoding |
|
Audio Format |
AAC/AAC+/AAC++/MP3/MP2/AC3 G711 |
Sample Rates |
44.1kHz/48kHz |
Bitrate |
12~640kbps |
System |
|
Control Method |
Web based management – IP 192.168.1.168 |
Language |
Chinese-English control interface |
Firmware |
Ethernet software upgrade |
Working environment |
|
Operating temperature |
-10 to 70 deg C |
Storage temperature |
–20 to 80 deg C |
Relative Humidity |
5% to 90% non-condensing |
Miscellaneous |
|

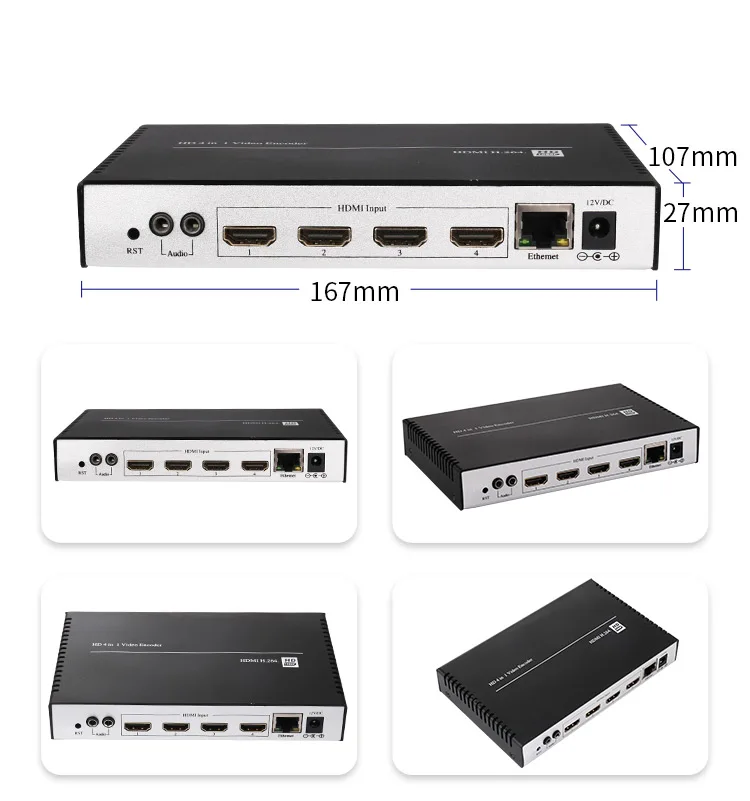

Dimension (L× W× H) |
167*107*27mm |
Approx weight |
350g |
Power adapter |
AC input 100-240V 50/60Hz DC output 12V 1A |
Q1, Your Method of shipment?
A1, Transportation by International Express like FedEx, UPS, DHL, TNT, EMS etc, takes 3-7 days from China to you, we will choose the best way for you based on our history data, ensure the package will be received safely and smoothly.
Q2, Can I get some Samples?
A2, Yes, sure, we are honored to offer you samples to test, but sample is not free.
While to ensure the products are bought correctly and safely, we will offer online test.
Q3, Can you provide OEM service as per our request? Is it free?
A3, With our professional & experienced design team, we can provide OEM service by replacing your company logo on chassis, software interface as well as carton.
Q4, What about your Warranty?
A4, 1 year warranty for free repair or replacement.
We offer technical supports online by remote help, repair services by our experienced after-sales specialist.
