Heat shrink low voltage electrical application and insulation sleeving type cable end caps
-
Supplier: Suzhou Jiuwei Electric Made Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Kitty Luo -
Price: $0.026 / >=50 pieces -
Min. Order: 50 pieces
| Payment Terms: | L/C,T/T; | Model Number: | VFSM-160/82; |
| Port: | Shanghai; | End Caps Color: | Black; |
| End Caps Material: | PE; | End Caps Environmental Standard: | RoHS; |
| End Caps Usage: | Cable sealing and waterproof; | End Caps With Valve: | Available; |
| End Caps Sizes: | 12mm-200mm; | Material: | PVC; |
| Brand Name: | 9V; | Supply Ability: | 10000 Piece/Pieces per Week; |
| Packaging Detail: | Carton or accoroding to customers' requirements .; | End Caps Shrinkable Temperature: | 120°C; |
| Place of Origin: | Jiangsu China; |

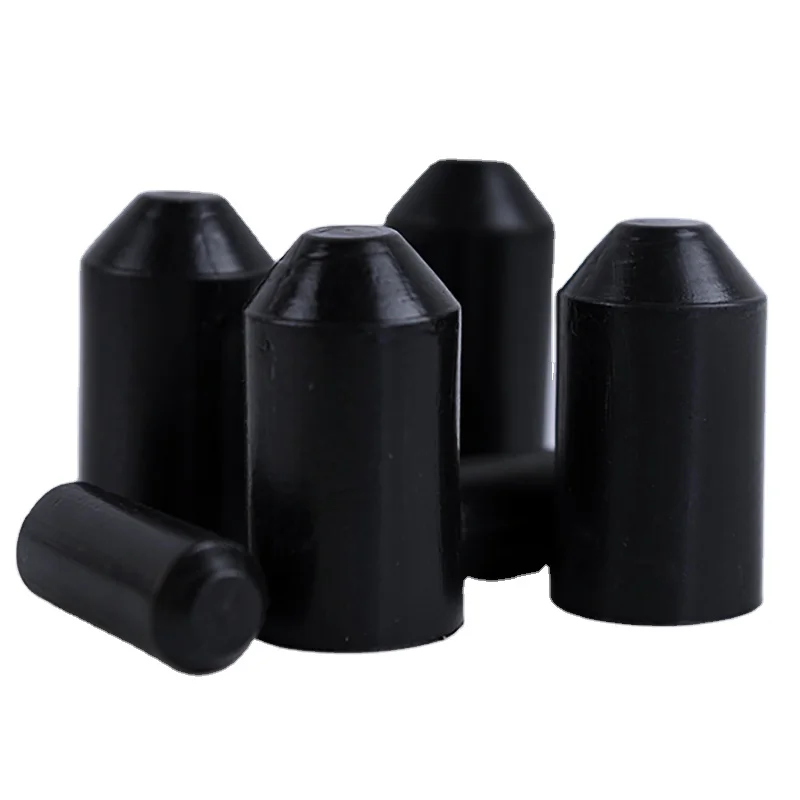

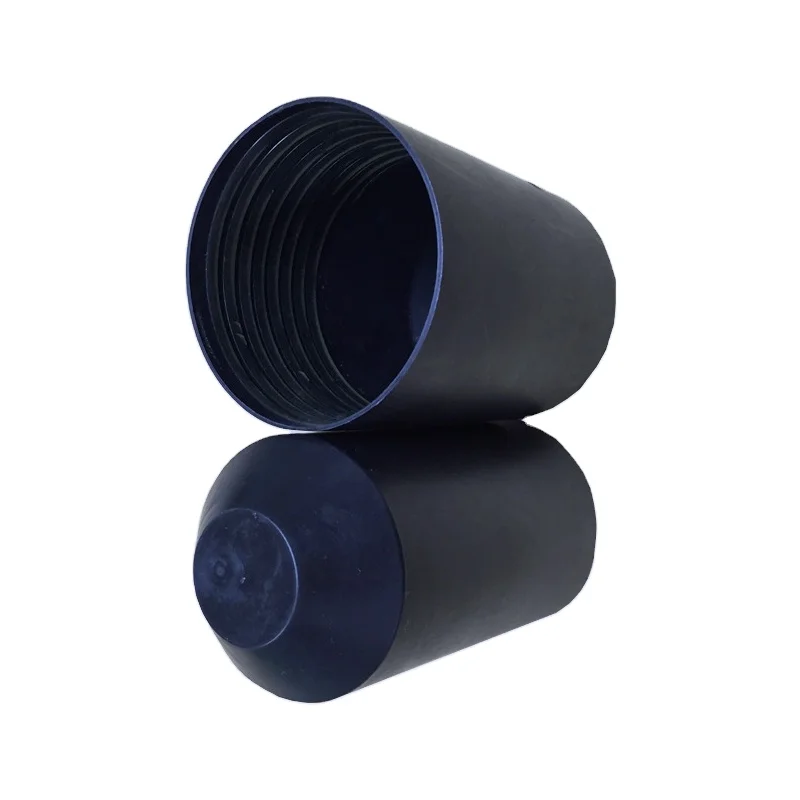

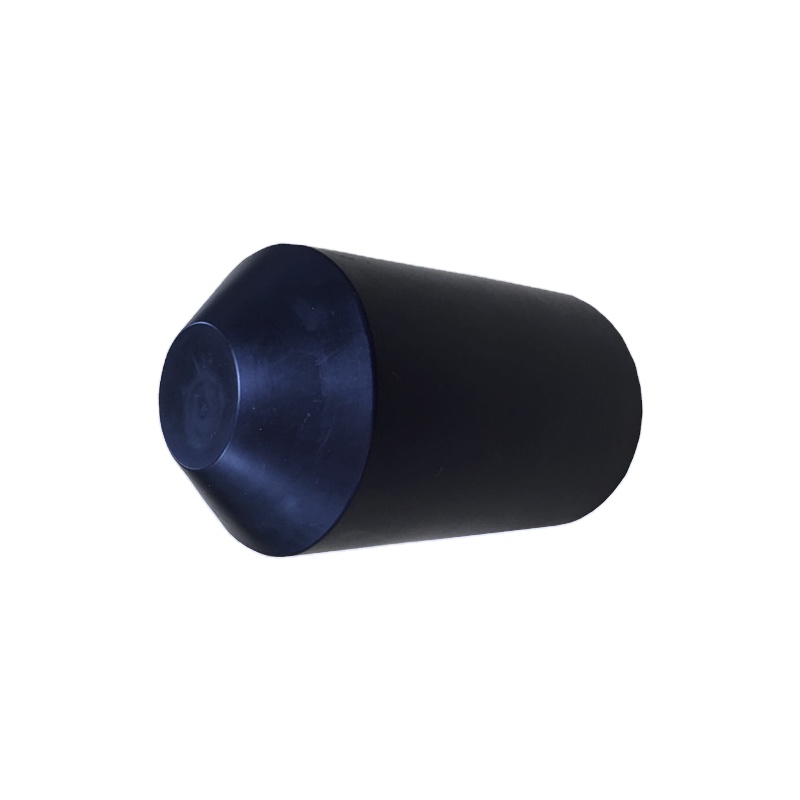

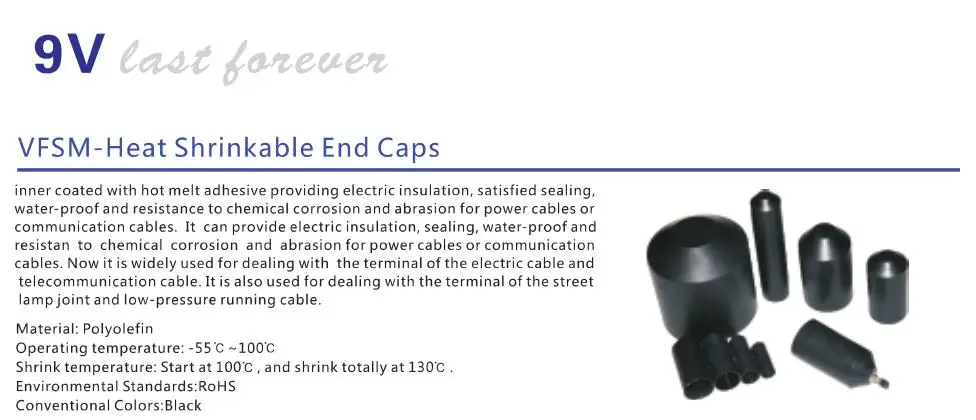

Heat Shrinkable Cable End Caps/plastic end cap/round plastic end cap
1.lSpiral adhesive coating insider of VFSM ;
2.Stealing ,waterproof ,UV fading

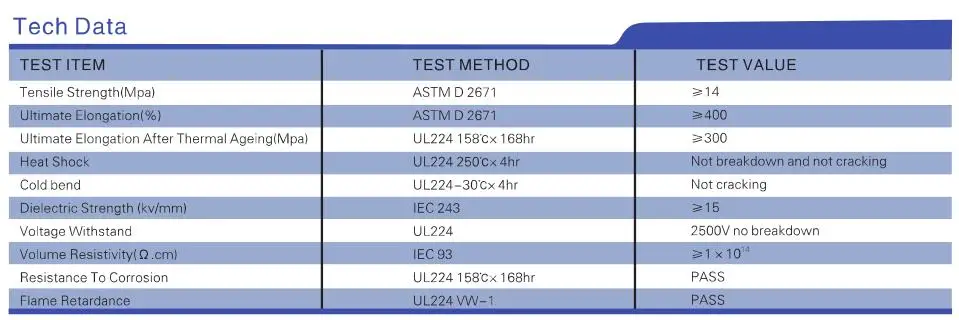

Technical Data: | ||
Property | Test Method | Standard |
Operating temperature | IEC 216 | -55°C~110°C |
Tensile Strength | ASTMD 638 | >14MPa |
Ultimate elongation | ASTMD 638 | >400% |
Heat aging Ultimate elongation | 150°C/168hrs | >300% |
Density | ASTMD 792 | 1.05 |
Breakdown strength | IEC 243 | >15KV/mm |
Volume resistance | IEC 93 | >1014Ω.cm |

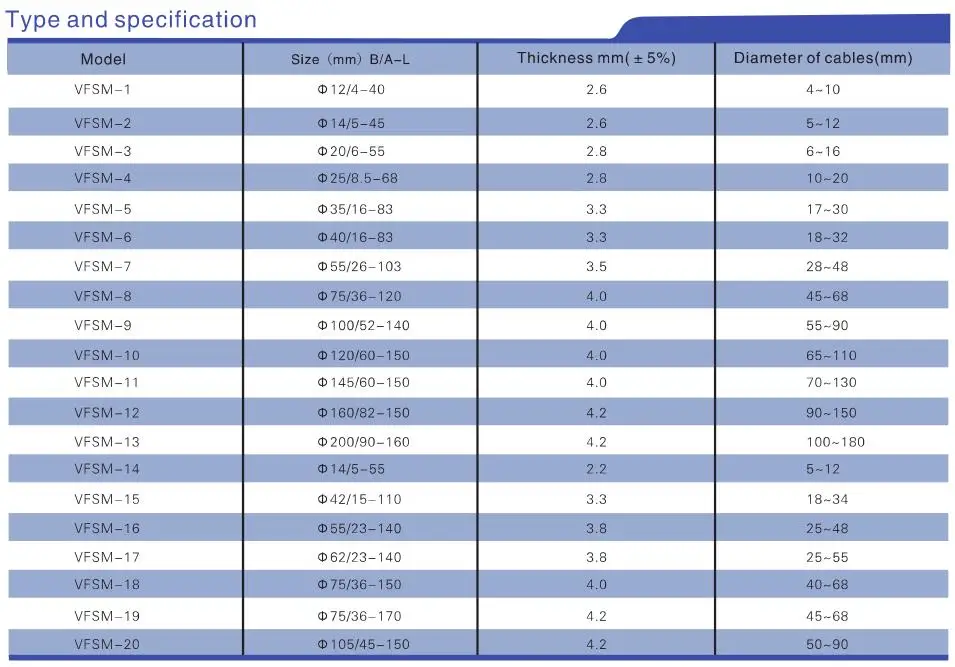

size&spec
Specification unit(mm) | ||||||
Order Ref. Number | As supplied | After fully recovered Length | Cable diameter | |||
Diam (min) | A(±10%) | Diam (max) | Length (±10%) | Width (±5%) | ||
VFSM-12/4 | 12 | 15 | 4 | 40 | 2.6 | 4-10 |
VFSM-14/5 | 14 | 18 | 5 | 45 | 2.2 | 5-12 |
VFSM-20/6 | 20 | 25 | 6 | 55 | 2.8 | 6-16 |
VFSM-25/8.5 | 25 | 30 | 8.5 | 68 | 2.8 | 10-20 |
VFSM-35/16 | 35 | 35 | 16 | 83 | 3.3 | 17-30 |
VFSM-40/16 | 40 | 35 | 16 | 90 | 3.3 | 18-32 |
VFSM-55/26 | 55 | 50 | 26 | 103 | 3.5 | 28-48 |
VFSM-75/36 | 75 | 55 | 36 | 120 | 4.0 | 45-68 |
VFSM-100/52 | 100 | 70 | 52 | 140 | 4.0 | 55-90 |
VFSM-120/60 | 120 | 70 | 60 | 150 | 4.0 | 65-110 |
VFSM-145/60 | 145 | 70 | 60 | 150 | 4.0 | 70-130 |
VFSM-160/82 | 160 | 70 | 80 | 150 | 4.2 | 90-150 |
VFSM-200/90 | 200 | 90 | 70 | 160 | 4.2 | 100-180 |
Lengthened End Cap | ||||||
VFSM-14/5 | 14 | 30 | 5 | 55 | 2.2 | 5-12 |
VFSM-40/15 | 40 | 40 | 15 | 90 | 3.3 | 18-34 |
VFSM-55/23 | 55 | 70 | 23 | 140 | 3.8 | 25-48 |
VFSM-62/23 | 62 | 70 | 23 | 140 | 3.8 | 25-55 |
VFSM-75/36 | 75 | 70 | 36 | 150 | 4.0 | 40-68 |
VFSM-75/36 | 75 | 70 | 36 | 170 | 4.2 | 45-68 |
VFSM-100/47 | 100 | 65 | 47 | 155 | 4.0 | 50-90 |
Featured Products:
Mainly Produces cable accessories and heat shrinkable products

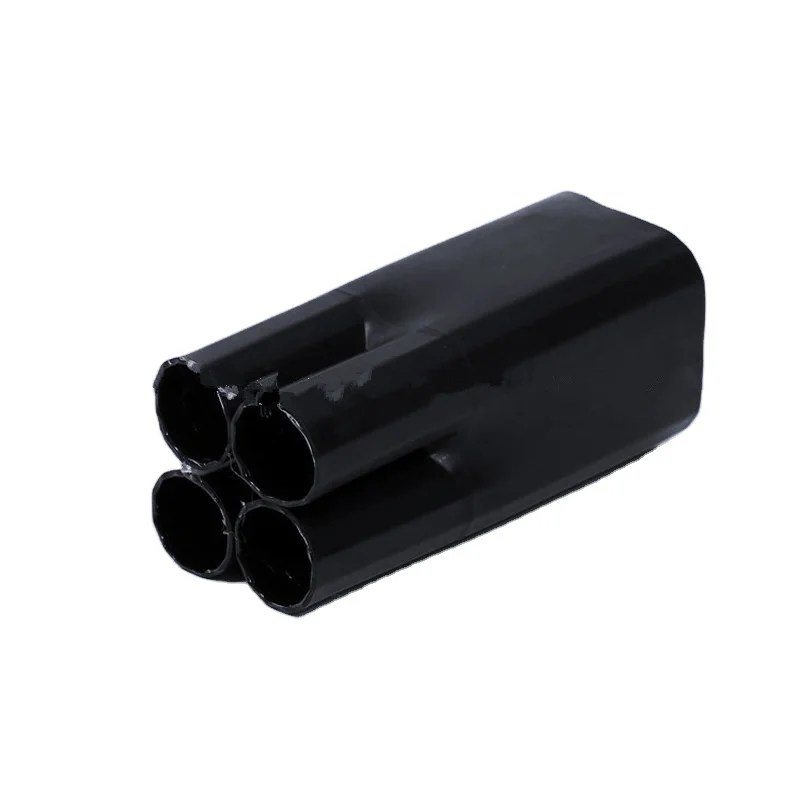

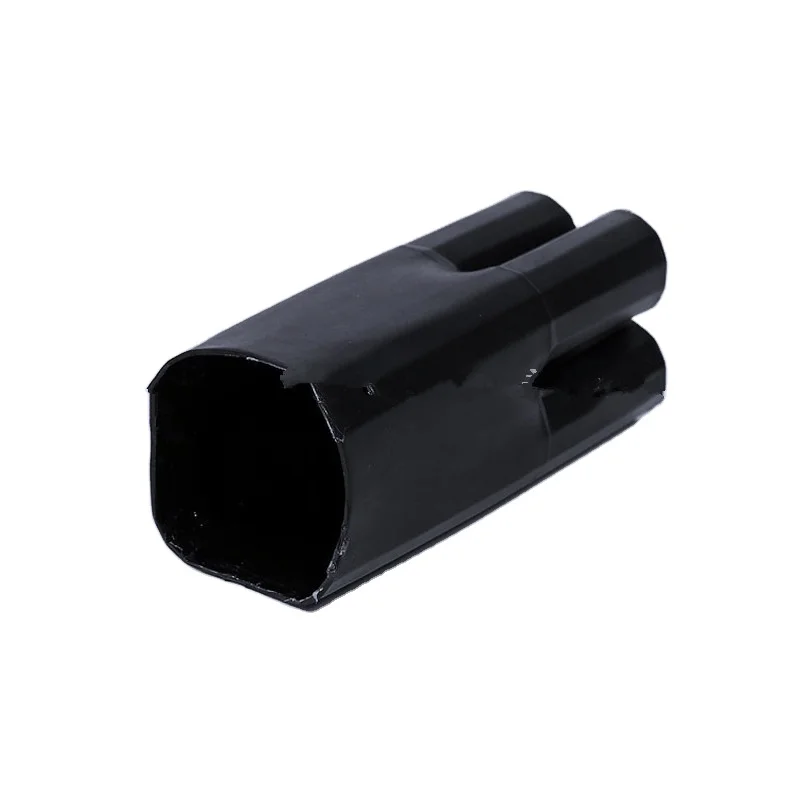

Cold/Heat Shrinkable Cable Accessories Termination Kits/Joint Kits.
1kV,10kV,20kV,35kV, 25-630mm2 Cold/Heat Shrinkable Indoor/Outdoor Termaination Kits/ Straight Joint Kits
European type/American type Separable Cable Connector.
Tee Separable Connector/Elbow Connector/Deadbreak Straight Connector.Butt Splice Connector.
Wrap-around Sleeve,(Heat Shrinkable Cable Repair Sleeve ),Fiberglass Reinforced Sleeve.
RSBJ / RSBA / RSB /RSWP/ RSWJ/ RSWA / RSQA /RSDA
Heat Shrinkable Sleeve Series:Heat Shrinkable BusBar Tubing, Medium/Heavy Wall Heat Shrinkable Tubing,PVC Heat Shrinkable Sleeve, PET Heat Shrinkable Plastic Tube, Green-Yellow Heat Shrinkable casing, Heat Shrinkable Insulation Tape, End Caps, Breakout, Heat Shrinkable Bus Bar Cover ,etc more than 10 varieties and 56 series, 2000-odd specifications.
Packaging
Normal package, Packed in Roll, Plastic film winding, Standard export carton, Or based on your demands.
Shipping
Sea freight: Shanghai portis best or up to you. CRF is best.
Air freight:suggest CRF Or CIF
Express:We have a cooperation with several international express,so can offer a good price.Or can send to you by your own express.
1.About Sample.
Less than 50USD,We won't charge you the samples fee,you Just offer your express number or pay for the express fee.
Within 2-3days normally, special products( custom-made ) maybe 7 days.
2.About Order.
Time of delivery is 15-20days based on your Qty,Special products maybe 20-25days.Jan,Feb,The before and after of Chinese New Year ,Maybe need longer time.
3.About Payment.
Payment,.First time,T/T 30% pre-payment and 70% paid off before shipment.
And if we cooperate for a long time,We can make the contract of Quarter settlement Or Haf-year settlement.
4.About Service.
Technical Support.If need Technical personnel on-site guidance,You just need pay for the traveling allowance.
If the products have quality problems,We will replacement double Qty for you with your next order.But if the problem is caused by yourself,we won't be responsible for that.
5.About Worktime.
Beijing time From 8am- 23pm * 5 .12am-1pm 5pm-8pm is out. You can leave message or email 24 hours.
-
