6 Gang Switch Panel with Universal Circuit Control Box Button Switch Pod Touch Switch Box

Product details
Quality:100% Professional Test;Feature:waterproof;
Single gross weight:0.9 KG;Car Make:normal car;
Function:ON-OFF;Application:Boat, camper, caravan;
Place of Origin:Guangdong China;voltage:12/24v;
Warranty:2;Model Number:YJ-SR5U6P;
Material:PET;Single package size:35X35X55 cm;
Panel dimensions:3.15'' x 3.94'' x 0.39'';Packaging Detail:1pcs in a white box, normal carton;
Brand Name:YUJIE;Selling Units:Single item;
OE NO.:NORMAL;Item:6 Gang Switch Panel with Universal Circuit Control Box Button Switch;
Type:Combination Switch;pin:6PIN;

6 Gang Switch Panel with Universal Circuit Control Box Button Switch ( Remark: Every Price is not real price, the real price need ask me directly)



  • OVERVIEW - The switch panel allows you to control 6 set of LED lights or devices with the push of a button. With 6 circuits rated at 40A each, can powered all types of 12V/24V accessories. Includes 24 switch legend options, you can customize the panel to specific accessory set up. With high stability, strong anti-vibration and anti-interference ability, it won't be affected by the shaking environment.
  • APPLICATIONS - The universal switch pod and control box can be installed in any location you see fit so that no matter what make and model you drive, you’re sure to find the perfect position for controlling your electronics.
  • CLEAN & EASY - Plug-n-play, easy to install, looks super clean in the cab and under the hood. This is a professional quality power distribution system and it designed for use in any vehicle, allowing you to add professional control for your electronic devices in an easy-to-install system that doesn’t force you to splice into factory wiring.
  • SAFETY & DURABILITY - No need to worry about over-current or over-temperature conditions(even 200° max). Come with high-temp and abrasion resistant wiring cables, relays, fuses, and temperature protection switch, if the internal temperature crosses 100 °C, the circuits will shut down and attempt to reset.

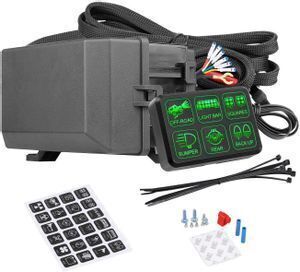

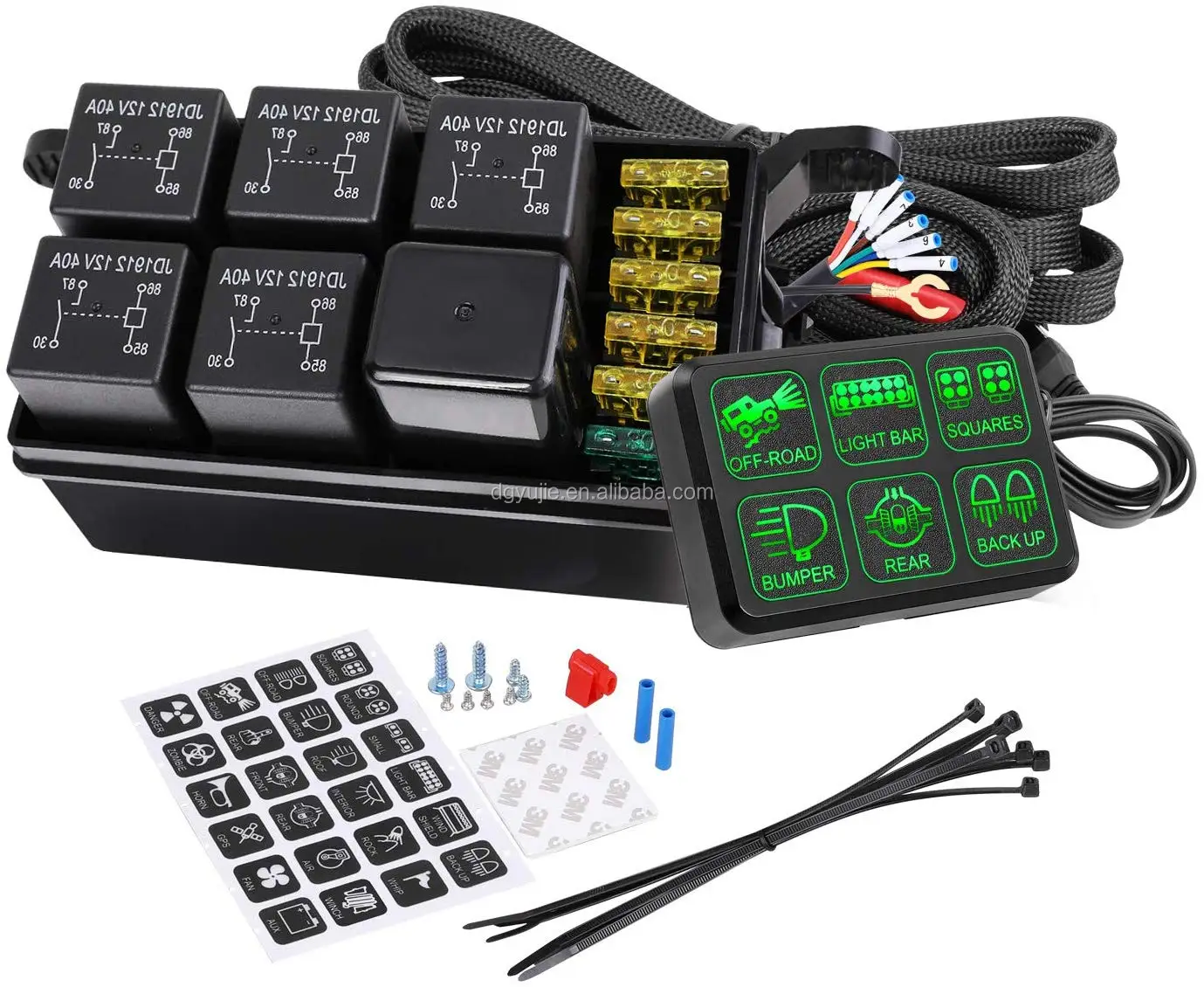

  • BOX COME WITH - 6 gang switch panel, control box, 24pcs stickers, long enough and durable nylon wiring harness, 6 color coded output wires for hooking up accessories, 6 plug-in style 40A relays, 1 ATO style 30A and 5 20A fuses for protection. Accessories included panel bracket, 3M double-sided tape, wire splice connector, butt splice connectors, screws, zip ties, manual. Quickly email responded within 24 hours and good after-sales service.



waterproof   IP67
voltage rating 12/24v










Installation Instructions:
1.Place the template provided on the desired panel position and cut the hole accordingly.

2.From the back of dashboard, insert the micro USB plug to the front. Connect the micro USB plug to the socket to the back of panel.

3.Mount the panel firmly onto the dashboard with self-adhesive in the back.

4.Install the Control Box properly with the included screws.
Insert the other end of the micro USB cable into the Control Box. Squeeze the cable into the strain relief hook on the box as illustrated.

5.Crimp the DC positive wire (+) with the included round terminal. Pass the
wire through the included insulator and connect to the screw terminals. Cover the terminals with the insulator properly. Crimp the DC negative wire (-) with the insulated 0.250" female terminal and insert into the negative quick terminal on Control Box.
Connect the load terminals to the desired devices.The numbers on top of the load terminals correspond to the numbers on the membrane touch 1 2 3 panel as shown in the left.

6.(Momentary Button Set-up) To set up a specific button to be momentary
(Push-On), press the button and the backlight button simultaneously for
more than 5 seconds until the button blinks. All buttons can be set to be
momentary. To undo this (change the button back to ON-OFF), simply repeat the process again on the same button.
