Universal 8 Gang LED Touch Switch Panel Control System 12V 24V Auto Boat Marine

Supplier: Dongguan Yujie Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Lily LUO
Price: $50.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packaging Detail:	Paper Box/Polybag/Blister package/OEM package;	Panel Size:	4.53 x 2.6 x 0.6 Inch;
Place of Origin:	Guangdong, China;	Circuit Box Size:	6.37 x 4.2 x 1.3 Inch;
Port:	shenzhen;	Operating Temperature:	- 40°C ~ + 150°C;
Panel Material:	High quality ABS;	Payment Terms:	T/T,Western Union,Paypal;
Max power:	600W-1200W;	Circuit Box Material:	Die-cast aluminum;
Operating voltage:	DC 12-24V;	Supply Ability:	20000 Pieces per Week;

Product Description

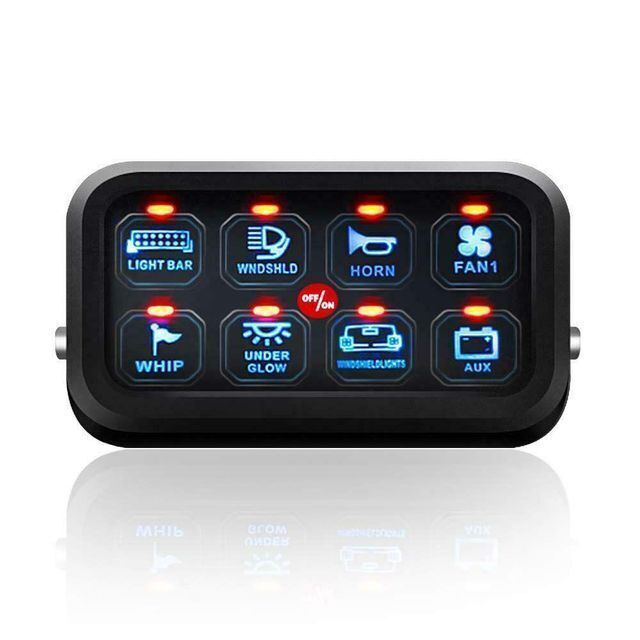

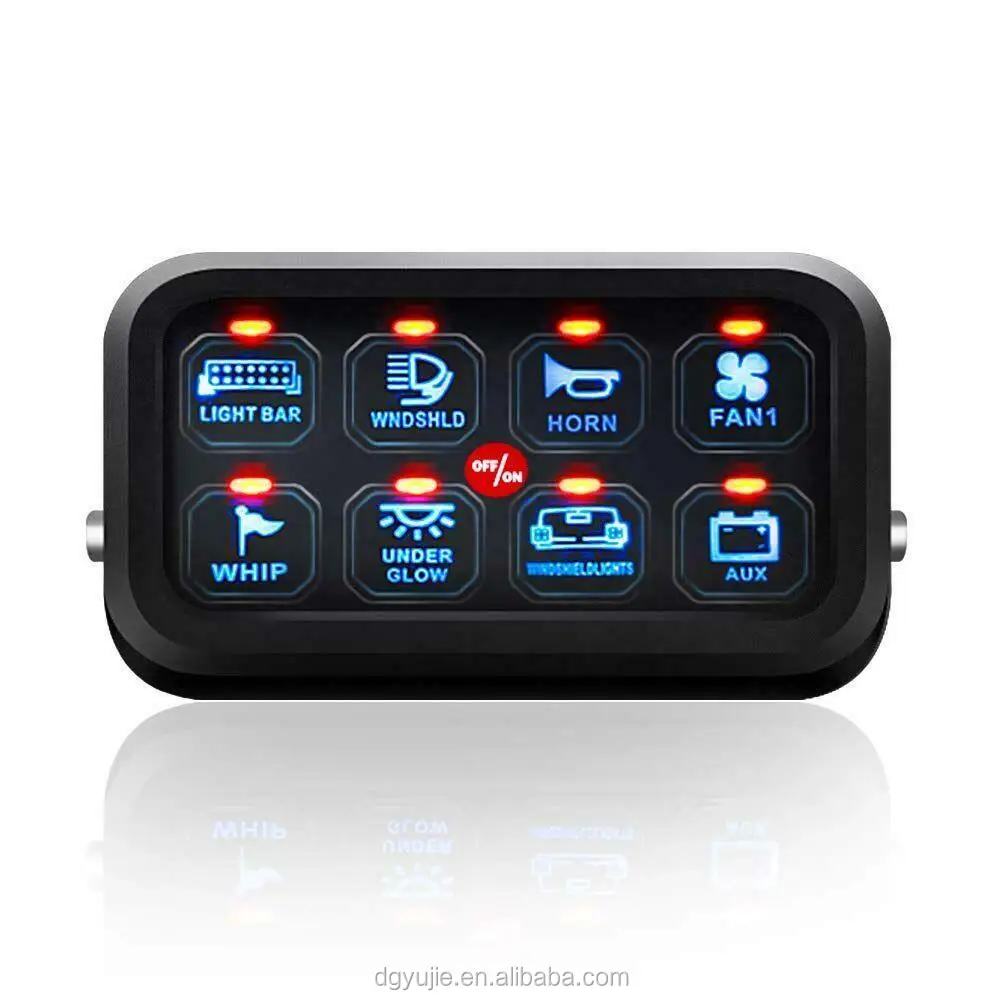

Universal 8 Gang LED Touch Switch Panel Control System 12V 24V Auto Boat Marine

Specifications:
Input Voltage : 12-24V
DC Voltage : 30A
Rated voltage:12V 20A / 24V 10A
Operating temperature: -25°-80°
Waterproof rating:IP68

Installation Guide:
Total power will go to 600w at 12V, 1200W at 24V and the maximum current is 60A.
The maximum output current of groud 1 & 2 is 30A, the maximum output current of ground 3-8 is 20A. The recommended connection method is to decrease the current gradually from groud 1 to 8 groud.
Make sure all the lamps are connectly before connecting the power cable.

Guideline for connecting the red, yellow and white control cables:
1. The red cable connects the master switch power cable to the ACC. If you want to light up the LED lamps before the car start-up, please connect the recommended because the higher the power is, the more the power of the battery will be consumed.
2. The yellow cable connects the width lamp to the master switch panel.
3. The white cable is the panel light brightness control cable. It can controls 3 brightness levels by each switching. You can disconnect the white cable in order to have the most brightness swicth panel if require.

Package Included:

1 x 8 Gang switch Panel Screen
1 x Circuit control Box
1 x Sheet of 50 Self-Adhesive Labels
3 x Mounting Brackets
10 x Zip Ties
Voltage Protection Breaker
Wiring Harness and Screw Sets
