FMZ Series Full Automatic Sheet Fed Flute Laminating Machine

Supplier: Shanghai Printyoung International Industry Co., Ltd.
Region: Shanghai, China
Contact: Ms Wendy Wen
Price: $45000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Max sheet size:	1300*1300mm;	Application:	Food,Beverage,Machinery & Hardware;
Local Service Location:	Egypt,Italy,Morocco,Algeria,South Africa;	Weight:	5.8t;
After-sales Service Provided:	Engineers available to service machinery overseas,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;	Weight of top paperboard:	Weight of top paperboard;
Marketing Type:	Hot Product 2019;	Certification:	CE;
Payment Terms:	L/C,T/T;	Warranty:	1 Year;
Supply Ability:	10 Set/Sets per Month;	Laminating precision:	±1.5;
Video outgoing-inspection:	Provided;	Product name:	FMZ Series Full automatic sheet fed laminating machine;
Max speed:	5000sph;	Automatic Grade:	Automatic;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Packaging Material:	Paper;
Core Components:	Engine,Motor;	Condition:	New;
Packaging Detail:	wooden case each FMZ Series Full automatic sheet fed laminating machine;	Min sheet size:	400*400mm;
Showroom Location:	Egypt,Italy,Morocco,Algeria,South Africa;	Packaging Type:	Cartons;
Applicable Industries:	Hotels,Garment Shops,Food & Beverage Factory,Restaurant,Home Use,Food Shop,Food & Beverage Shops,Other,Advertising Company;	Place of Origin:	Shanghai China;
Port:	Shanghai;	Voltage:	380V;
Brand Name:	Printyoung;	Machinery Test Report:	Provided;
Key Selling Points:	High Productivity;	Dimension(LWH):	1150019002500mm;
Type:	Laminating Machine;	Driven Type:	Electric;
Warranty of core components:	1 Year;

Product Description

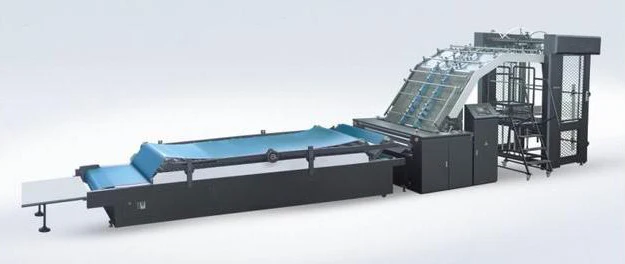

FMZ Series Full automatic sheet fed laminating machine

Specifications:

1.CE certificate

2.The flute laminator is economic and high speed
3.excellent quality and competitve price
4.easy to operate

Features:

1. Automatic feeding for top sheet and bottom sheet.

2. Integrated control with PLC can provide easy operation & trouble shot during production. Safety for user is considered and widely used in the machine design.

3. Famous international brand of components like bearing, electrical parts are used in the critical functioning part of the machine.

4. Elastic front register positioning, the bottom sheet does not exceed the top one, the front-and-back distance between the top sheet and the bottom sheet can be adjusted.

5. suitable for laminating bottom cardboard more than 450g/m2 with top paperboard, laminating paperboard with A/B/C/D/E flute corrugated cardboard, and laminating corrugated board.

6. Standard top the paper correction system, to inprove the accuracy of the laminating.

Technical parameters:

Model	FMZ-1300	FMZ-1450	FMZ-1600
Max sheet size	1300×1300mm	1450×1450mm	1600×1600mm
Min sheet size	400×400mm	400×400mm	400×400mm
Total electric consumption	15kw	15kw	15kw
Weight of top paperboard	≥200GSM	≥200GSM	≥200GSM
Laminating precision	±1.5	±1.5	±1.5
Max speed	5000sph	5000sph	5000sph
Weight	5.8t	6.5t	7.2t
Overall Dimensions	11500×1900×2500mm	11500×2100×2500mm	11500×2450×2500mm
