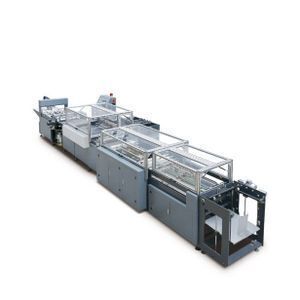

Automatic Case Making Machine 1 YEAR Online Support Field Installation Video Technical Support Commissioning and Training

Supplier: Shanghai Printyoung International Industry Co., Ltd.
Region: Shanghai, China
Contact: Ms Wendy Wen
Price: $45000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Selling Units:	Single item;	After-sales Service Provided:	Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Brand Name:	PRINTYOUNG;	Speed:	0-25pcs/min;
Single gross weight:	2500.0 KG;	Weight:	2500kg;
Single package size:	760X215X150 cm;	Automatic Grade:	Automatic;
Model:	QFM-460;	Dimension(LWH):	L7600W2150H1500mm;
Application:	Machinery and Hardware;	Voltage:	380V;
Packing:	Plastic, Wood;	Condition:	New;
Warranty:	1 Year;	Place of Origin:	Zhejiang China;
Product name:	Case Making Machine;	Type:	case making machine;
Packaging Detail:	Plastic, Wood;	Certification:	CE certification;

Case Making Machine Main Features :

1. The feeder adopts back-push feeding system, which is controlled pneumatically and server motor.
2. The particular function of positioning and correcting an error for cardboard can make it locating on the cover sheet accurately, and the positioning error . brought by glue paper excursion is settled completely.
3. The air draft device of product line avoid powdery paper bend and air bubble, and its tail is equipped automatic smoother device.
4. The delivery table is a lifting table of automatic control, smooth delivery.
5. Intelligent touch screen display and operate. It is more expediently, more directly for man-machine conversation.
6. It adopts Japan OMRON PLC intelligence software control system, automatic checking trouble, debugging is convenient and quick, decrease waste of raw and processed materials.

Case Making Machine Advantage & Services:

1.Has several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.

2.Machines with good quality in one year, life-long maintenance.

3.Have many machines can be monitored via the Internet, solve customer requirements in a timely manner.

4.Has several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.

5.Undertake various non-standard machinery, solve the customers' requirements.
