CNC or Not: | yes; | Supply Ability: | 30 Set/Sets per Month for 375nm free space UV diode laser module; |
Delivery Detail: | 1-2weeks(noinal, urgent service pls contact with sales); | After-sales Service Provided: | No overseas service provided; |
Place of Origin: | Shanghai China; | Payment Terms: | T/T; |
Port: | shanghai, China; | Laser Type: | DIODE; |
Brand Name: | SFOLT; | Certification: | CCC,ce; |
Model Number: | DL-375-180; | Application: | Other; |
Packaging Detail: | anti-static electricity package; |
DL-375-180 | |||||||||
Optical Parameters[1] | |||||||||
Parameters | Symbol | Typical Value | Unit | ||||||
Central Wavelength | λc | 375 | nm | ||||||
Wavelength Tolerance |
| +/-5 | nm | ||||||
Output power | P | 50 | 180 | mW | |||||
Power stability | Ps | <3%[2] | <3%[2] | % | |||||
Transverse mode |
| TEM00 | - |
| |||||
Beam diameter(1/e2) | D⊥ | ≤2mm | ≤3.5mm | mm | |||||
D// | ≤1mm | ≤1.5mm | mm | ||||||
Beam divergence(1/e2, full angle) | D⊥ | ≤0.5 mrad | ≤1 mrad | mrad | |||||
D// | ≤1mrad | ≤1mrad | mrad | ||||||
Expected operating lifetime | MTBF | 10000 | hrs | ||||||
Warranty time |
| 1[3] | year | ||||||
Environmental Parameters[4] | |||||||||
Operating temperature | Top | 0~40 | ℃ | ||||||
Storage temperature | Tst | -40~85 | ℃ | ||||||
Note: [1]: Test data under 25℃. [2]: High power stability value available upon request. [3]: 2-year warranty available upon request. [4]: case temperature. | |||||||||
Part Number | |||||||||
Free space laser | |||||||||
DL-375-AAA-BB | |||||||||
AAA | Output power: 30mW,50mW,100mW etc. | ||||||||
BB | Package type | ||||||||
T: laser head and driver separated, head size: 35*35*102mm, temperature stabilized | |||||||||
T2: laser head and driver separated, head size: 49*42*140mm, temperature stabilized | |||||||||
T7: 5 or 12 VDC driver included, head size: 49*42*140mm, temperature stabilized | |||||||||
00: to be customized | |||||||||
Package and legend | |||||||||
T-serial package: laser head size: 35*35*102mm, laser driver separated, temperature stabilized | |||||||||

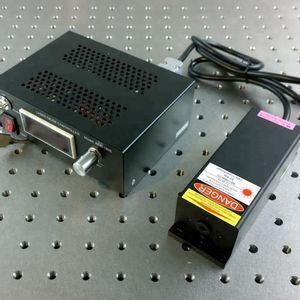

T2-serial package: laser head size: 49*42*140mm, driver separated, temperature stabilized | |||||||||
ADR-1805 laser driver, 90-240VAC power supply, with power adjustor and digital display | |||||||||
T7-serial package: laser head size: 49*42*140mm, driver separated, temperature stabilized | |||||||||
