Fangyuan new automatic eps expandable polystyrene wall panel block moulding machine equipment

Supplier: Hangzhou Fangyuan Plastics Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms ying huang
Price: $57000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Method:	Thermoforming;	Video outgoing-inspection:	Provided;
Voltage:	380V;	Warranty:	1 Year;
Warranty of core components:	1 Year;	Place of Origin:	Zhejiang China;
Showroom Location:	Egypt,Turkey,Viet Nam,Saudi Arabia,Indonesia,Thailand,Algeria,Nigeria,Malaysia;	Package Preview:	;
Type:	EPS Block Making Machine;	Brick size:	Other;
Marketing Type:	Ordinary Product;	Condition:	New;

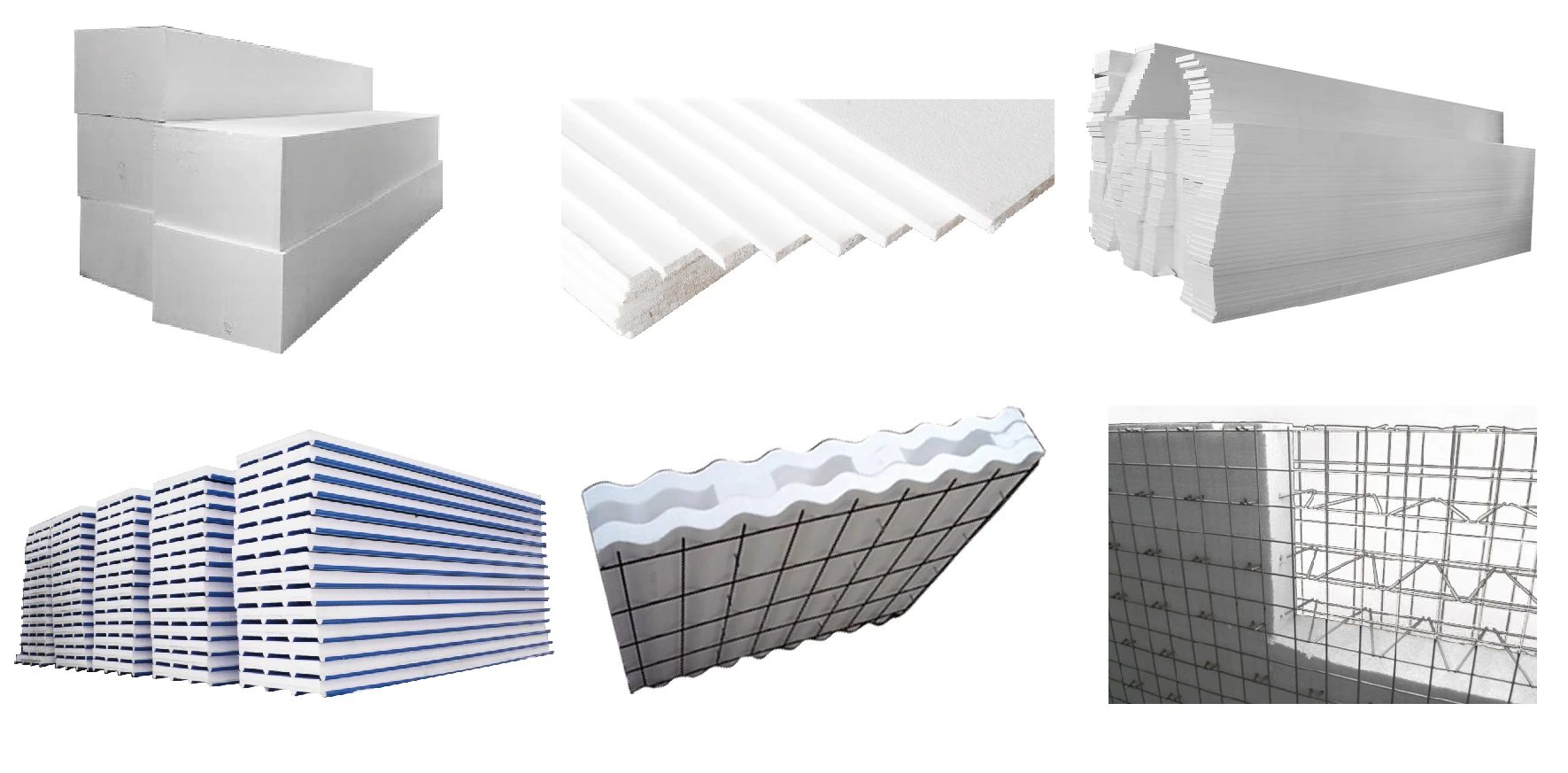

Port:	Shanghai;	Application:	3d panel,sandwich panel,wall panel insulation;
Weight:	6.00-18.5t;	Brick Raw Material:	EPS Foam;
Advantages:	with three ballvalves;	Machinery Test Report:	Provided;
Packaging Detail:	wooden.HS:84774010. automatic block making machine;	Supply Ability:	2000 Set/Sets per Year;
Processing:	Brick Production Line;	Block size:	200012001000;
Payment Terms:	L/C,T/T,20% T/T, balance L/C;	Processing Type:	Foaming Machine;
Mould cavity size:	204012401030;	Local Service Location:	Egypt,Turkey,Brazil,Peru;
Key Selling Points:	High Safety Level;	After Warranty Service:	Field maintenance and repair service;
Name:	automatic block making machine;	Brand Name:	FANGYUAN;
After-sales Service Provided:	Overseas service center available,Field installation, commissioning and training;	Certification:	CE ISO9001:2015;
Core Components:	PLC,Motor,Pump;	Production Capacity (Pieces/8 hours):	Other;
Applicable Industries:	Foam Factory;	Compressed air:	1.5-2m3/cycle;
Automatic:	yes;	Color:	Blue automatic block making machine;

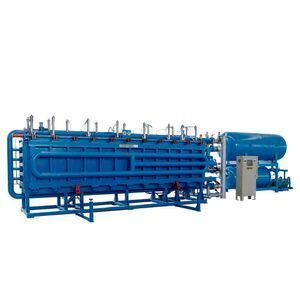

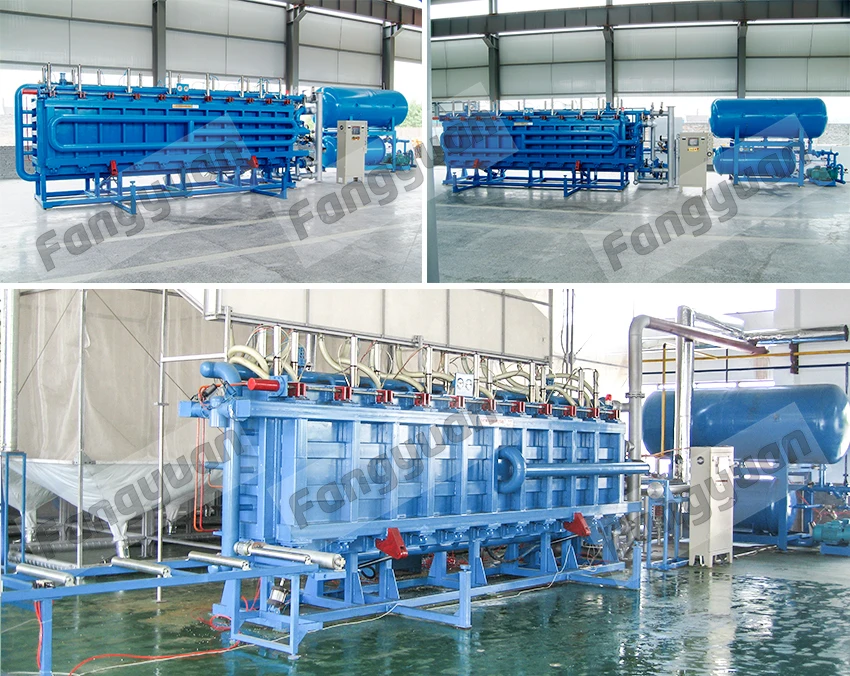

SPB200-800DZ automatic block making machine

1.Machine structure:

- The sandwich panel machine mould are welded by strong rectangle tube and steel plate with high strength frame, keep more safety;

- All block mould frame are treated by heat-treatment to release the welding stress, so that the frames would not deformed.

- After heating treatment, all mould frame are processed by sand blasting treatment to get rust prevention, so under coat and finishing coat are greatly improved anticorrosion performance and long life;

- Adopts three Germany gauges and safety valve for double protection, the sandwich panel machine will be water pressure and steam many testing, ensure the machine more stable and safety.

2. Steam system:

- Adopts three ball valves to take place of one big steam valve (save steam 20%) with ISO-standard butterfly valves, greatly improved stably and long life;

3. Control system:

- Adopts PLC(Japan Mitsubishi) and touch screen (French Schneider) with easily operation;

- Equipped with material level sensor for control the filling, the block cooling is controlled by foam pressure sensor, it is realize the filling, heating, cooling and open block mould, the whole working procedure automatically.

Note:

- As for economic type which is without Germany gauge ,foam pressure sensor ,ISO-standard butterfly valve.

Item			SPB200/DZ	SPB300/DZ	SPB400/DZ	SPB600/DZ	SPB800/DZ
Mould Cavity Size			2040×1240 ×1030mm	3060×1240 ×630mm	4080×1240 ×1030mm	6100×1240 ×1030mm	8120×1240 ×1030 mm
Block Size(12g/L)			2000×1200 ×1000mm	3000×1200 ×1000mm	4000×1200 ×1000mm	6000×1200 ×1000mm	8000×1200 ×1000mm
Throughput	15kg/m³		5min/cycle	6min/cycle	7min/cycle	8min/cycle	8min/cycle
Connected Load			20.5-24.5kW	20.5-24.5kW	24.5-35.5kW	24.5-35.5kW	35.5-43.5kW
Outside Dimensions		L × W× H	5700×4000 ×2850mm	7200×4500 ×3000mm	11000×4500 ×3000mm	12600×3960 ×2906mm	15700×4600 ×3400mm
Weight			6.00t	7.20t	12.0t	15.0t	18.5t
Room Height Required			6000mm	6000mm	6000mm	6000mm	6000mm
Note: We custom make machines according to customer's requirement.
