API 16C kill and choke manifold

Supplier: Goldenman Petroleum Equipment Co., Limited
Region: Shandong, China
Contact: Mr Shine Lee
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Selling Units:	Single item;	Video outgoing-inspection:	Provided;
Color:	Red;	Certification:	API;
Place of Origin:	Shandong China;	Feature:	High Drilling Efficiency;
Working Pressure:	3000PSI15000PSI;	Condition:	New;
Material:	Carbon Steel;	Processing Type:	Forging;
Package Preview:	;	diameter:	2-1/16 4-1/16;
Local Service Location:	Saudi Arabia,UAE;	After-sales Service Provided:	Engineers available to service machinery overseas;
Marketing Type:	New Product 2020;	Standard:	API 16C;
Use:	Well Drilling;	Application:	wellhead;
Product name:	API 16C kill and choke manifold;	Single package size:	210X210X50 cm;
Applicable Industries:	Manufacturing Plant;	Machinery Test Report:	Provided;
Single gross weight:	2200.0 KG;	Type:	Bop;
Machine Type:	Drilling Equipment;	Packaging Detail:	plywood case;
Warrenty:	one year;	Showroom Location:	Saudi Arabia,UAE;
Warranty:	1 Year;	Brand Name:	GM;

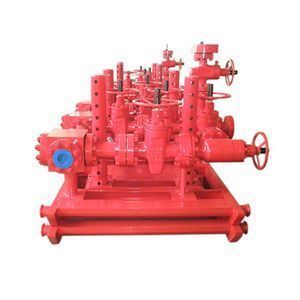

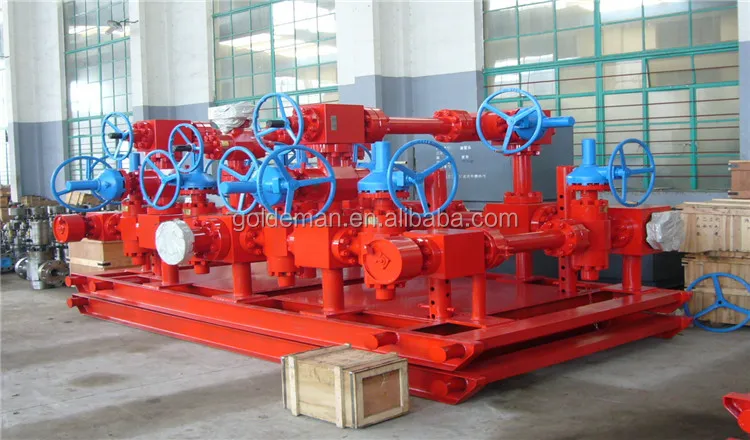

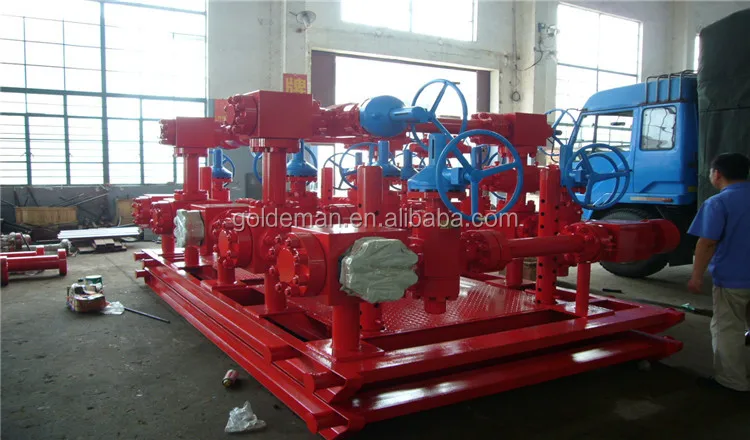

API 16C kill and choke manifold

Product Description

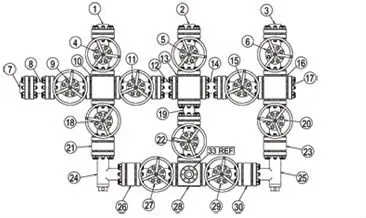

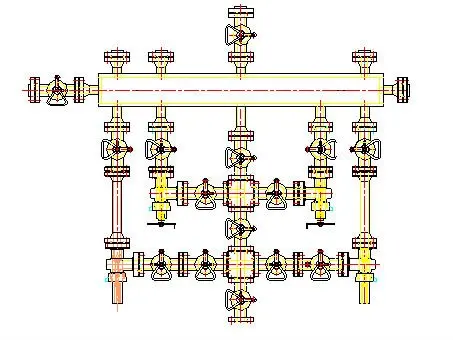

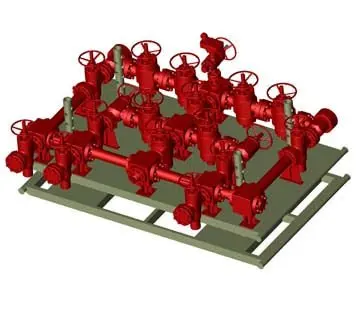

Detailed introduction of the api 16c wellhead choke manifold:

Choke Manifold comply with API Spec 16C

·Working Pressure3000PSI15000PSI

·Nominal Bore2-1/164-1/16

·The choke manifold is support equipment of hydraulic BOP for controlling well blow out and well pressure.

·Furnished with hydraulic control panel to achieve remote control.

·Through the choke valve, perform well killing, replacing polluted slurry in well, and control wellhead pressure of casing and standpipe, restoring mud to control pressure at well bottom to stop overflow.

·Through relief pressure, decrease wellhead pressure to perform Flexibility Shut off Well.

·Through drain valve, decrease casing pressure of wellhead to protect BOP stack.

·Meet special services requirements for balanced drilling, under-balanced drilling and offshore drilling.

·Furnished with manual/hydraulic cylindrical gate and seat drilling choke or wafer-type drilling choke which has functions of choke flow and shut off fluid.
