Oilfield Equipment Shale Shaker

Supplier: Goldenman Petroleum Equipment Co., Limited
Region: Shandong, China
Contact: Mr Shine Lee
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	20 Set/Sets per Month;	Key word:	shale shaker;
Marketing Type:	New Product 2020;	Certification:	API;
Machinery Test Report:	Provided;	Brand Name:	Goldenman;
model:	Linear motion;	Usage:	Solids Control System;
Application:	Well Drilling .;	Warranty of core components:	1 Year;
Packaging Detail:	export packing;	Local Service Location:	None;
Features:	High Efficiency;	Condition:	New;
Place of Origin:	Shandong China;	Warranty:	1 Year;
Showroom Location:	None;	adjustment range:	-1~+5;
Product name:	Oilfield Equipment Shale Shaker;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Avaliabe brand of shale shaker:	Brandt;	Video outgoing-inspection:	Provided;
G force:	7.3 (6.8 ~ 7.8 adjustable);	Core Components:	Motor;
Applicable Industries:	Energy & Mining;	Port:	Any chinese port;
Shale Shaker Screen type:	Pre-tensioned;

Product Description

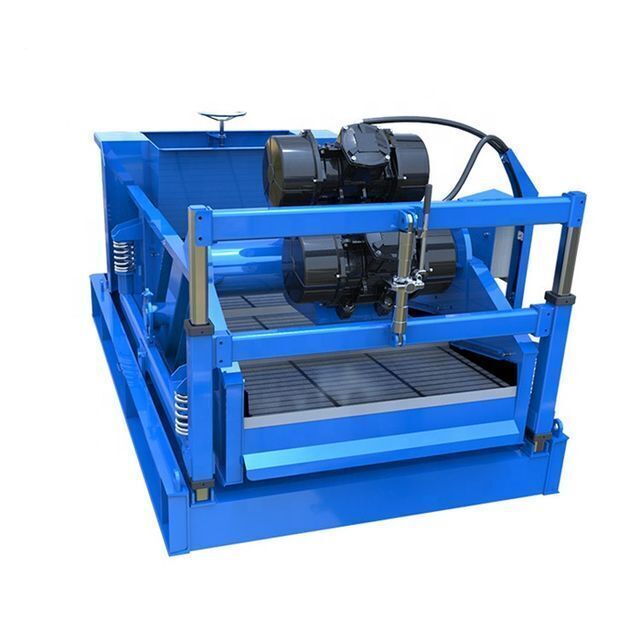

Oilfield Equipment Shale Shaker

FC-313, GX-I and GX-II series Shale Shaker

The motor is 2.5 KW explosion-proof motor.

Model	FC-313	GX-1	GX-II
Amplitude of Vibration (P-P value)	5	5	5
Excited Rotation Velocity (RPM)	1,450	1,420	1,420
Type of Vibration	Linear	Linear	Linear
Area of Screen (mm2)	SC36-30	4-1053*697	3-1053*697
Max. Handling Capacity (GPM)	695.4	768.6	732

S230-3 special track shale shaker is used in the drilling liquid first phase purification in petroleum exploration and exploitation. The relative position between the vibrator rotation center and the shaker basket centroid leads to a special vibration track that ensures good screening efficiency, quick disposal and prolonged screen life. It has three types:S230-3, S230-3×2 and 230-3×3 that can cope with all kinds of the drilling rigs and drilling liquid circulation systems made in China.

Model	S230-3	S230-3X2	S230-3X3
Amplitude	A≥2 mm
Rotating Speed of exciting vibrator(rpm)	1068, 1252 with double-speed pulley
Projective Index	G=4.8 when n=1068 r/min G=5.9 when n=1252 r/min
G Force P	P=33 kN when n=1068 r/min P=41 kN when n=1252 r/min
Area of Single Screen()	2.3	4.6	6.9
Screen Angle	1st 0°,2nd 5°, Screen API 20, 40, 60, 80,100 Mesh
Handling Capacity of Single Screen	Q≥501/s when drilling liqiud clone velocity≤40 Second
Motor	Model Y112M-4, Rotation Rate 1440rpm,Power 4kW
Overall Dimension(mm)	2900x1850x1320	4200x2675x1340	4200x2675x1340
Weight(Kg)	1588	3323	4570

S250-2 Balanced Elliptical Motion Shale Shaker is designed for various mud conditions with MARTIN Vibrator. Its shaking track is balanced elliptical, which is the most advanced in the world with features of quick disposal, high capacity, good screening efficiency with prolonged screen life, and easy to install and maintain. It has two structure models:S250-2 and S250-2×2.

Model	S250-2	S250-2x2
Basket	3 Screen Structure	2x3 Screen Structure
Screen Area ()	2.5	5
Incline Angle of Screen	-1°~3°
Screen Type	Tension Hook Screen
Screen Underlay	Rubber Strip Underlay
Screen Tension	Landscape Orientation Hook Strip Tension
Track	Balanced Elliptical Motion
G Force	6.3g (set when leave factory)
Drive Form	Electric Vibrators Drive
Motor Type	Special
Power of Vibrators(kW)	2x1.84	2x2x1.84
Voltage(V)	380
Rotation Rate (rpm)	1500
Performance	Explosion Proof
Overall Dimension(mm)	2700x1756x1350	2700x4000x1300
Weight(Kg)	1780	3200

S310-1 Linear motiion Shale Shaker is designed to cope with various mud conditions with features of big screen area, big handling capacity,and easy maintenance. The Screen Vibrator is from Martin of USA.

Model	S310-1	S310-1x2
Basket	2Screen Structure	2x2 Screen Structure
Screen Area ()	3.096	6.192
Incline Angle of Screen	-3°~3°
Screen Type	Tension Hook Screen
Vibration Track	Linear
Motion Track	Linear Vibration
G Force	4g~6g (original set 90% exciting force)
Drive Am	≥4mm
Drive Form	In-Phase Direct Drive of Vibrator
Power of Motors(kW)	2x1.84	2x2x1.84
Voltage(V)	380
Rotation Rate (rpm)	1500
Performance	Explosion Proof
Overall Dimension(mm)	2978x1756x1395	2978x4320x1395
