High quality 3inch 80mm stainless steel 0-15 PSI pressure gauge 1 bar
-
Supplier: Ningbo Beilun GC Bob Instrument Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms billie English -
Price: $10.00 / >=20 pieces -
Min. Order: 20 pieces
| OEM: | Acceptable; | Material: | Stainless steel case; |
| Model Number: | 0 - 15 PSI; | Port: | Ningbo,Shanghai; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,0 - 15 PSI pressure gauge 1 bar; | Quality: | 100% Inspection; |
| Mount: | Bottom or back for option; | Brand Name: | GC; |
| Packaging Detail: | Each pcs with one polybag and one small carton,outside is 5 layer carton,shipping with pallet for safety.; | Accuracy: | 1%, 1.6%,2.5%; |
| Item name: | 3inch 80mm stainless steel pressure gauge; | Standard: | EN837-1; |
| Supply Ability: | 50000 Piece/Pieces per Month 0 - 15 PSI pressure gauge 1 bar; | Dial: | 1.5", 2", 2.5", 3", 4", 6", 8", 10"; |
| Place of Origin: | China; |
High quality 3inch 80mm stainless steel 0 - 15 PSI pressure gauge 1 bar
0 - 15 PSI pressure gauge 1 bar description:
•outdoor and severe ambient and process conditions
•Use where harmful vibration and pulsation are present
•Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems
0 - 15 PSI pressure gauge 1 bar features:
-All stainless steel
-According to EN837-1
-Bayonet ring(Inside or outside)or crimped ring
-Highly corrosion resistant measuring system
-Highest pressure up to 4000bar(for 4”, 6”)
1600bar for 2.5”
0 - 15 PSI pressure gauge 1 bar options:
Lower or back entry, panel mount or surface mount.
Micro adjustable pointer (only for 4”,6”)
Blow out disc at the back (for 4” & 6”)
Restrictor screw Ø 0.5 (for fittings > 1/4")
Accuracy class 0.6 ((for dial size ≥ 4")
Connection method: Lasing welding or two split
0 - 15 PSI pressure gauge 1 bar specification:
|
Dial: |
1.5", 2", 2.5",3”, 4",6",8"10" |
|
Scale ranges: |
-1 to 4000bar |
|
Accuracy class: |
1.6%(≤63):1.0%(≥100,150,200) |
|
Process connection: |
NPT OR BSPT ect. |
|
Burdon tube: |
316LSS,drawn seamless |
|
Wetted parts/socket: |
Stainless steel 304 or 316 or 316L |
|
Movement: |
304SS |
|
Dial |
Aluminum |
|
Pointer: |
Aluminum, micrometer adjustable |
|
Welding: |
TIG ,Laser Welding |
|
Case material: |
stainless steel 304, mat or polished |
|
Window(lens): |
safety glass or tempered glass, PC |
|
Fill: |
Glycerin or Silicone |
|
IP class: |
IP 65 |

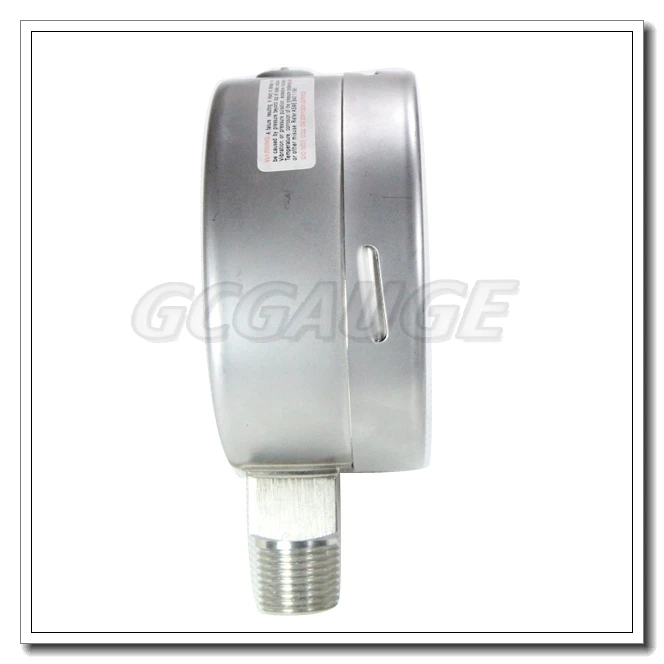

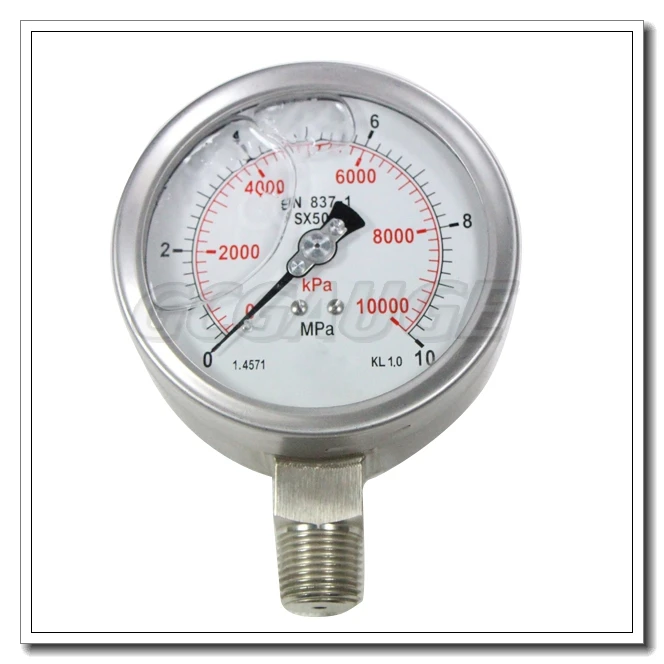

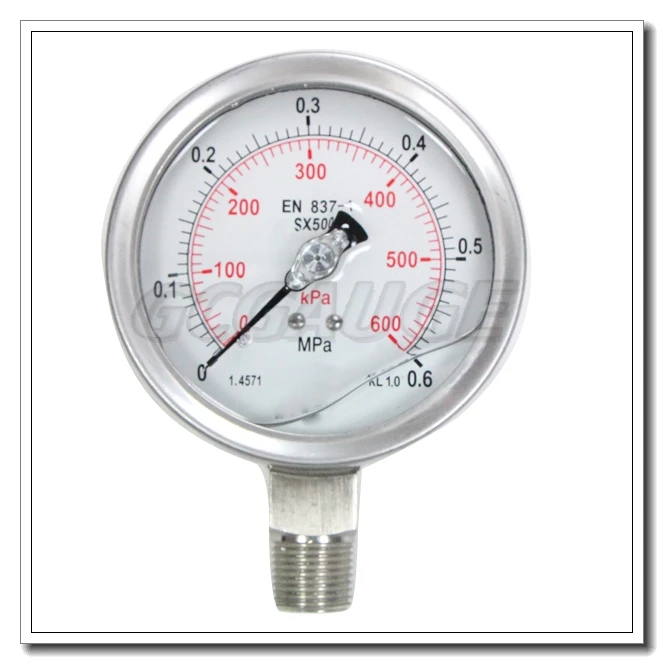

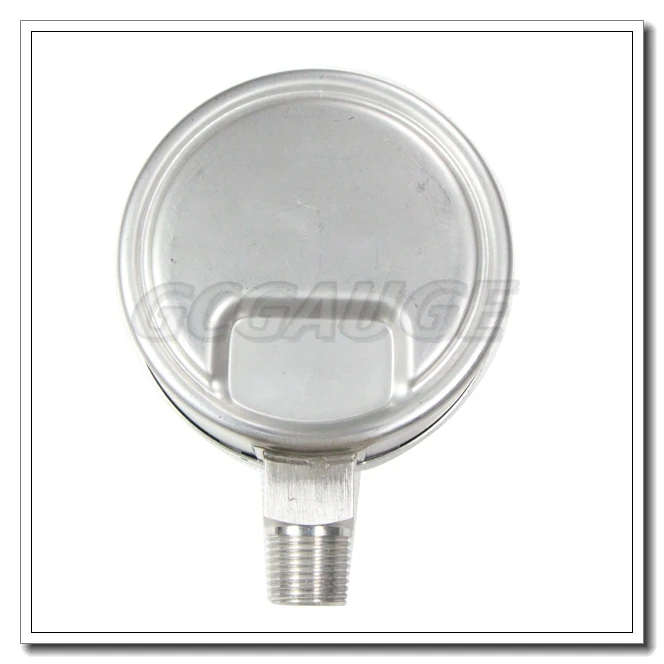

0 - 15 PSI pressure gauge 1 bar pictures:

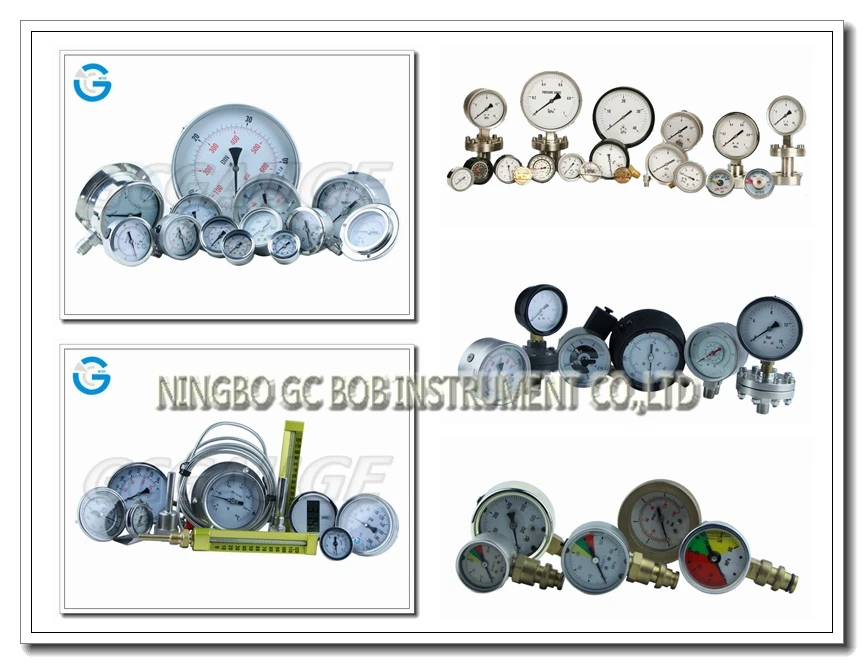

These all are different types pressure gauge, we are committed to offer the good quality gauge for all over the world especially USA and European market.
Based on the advanced equipment, high technology, serious inspection procedure, best after-sales service, our professional level and unremitting efforts, gaining the best reputation and response from the customers.

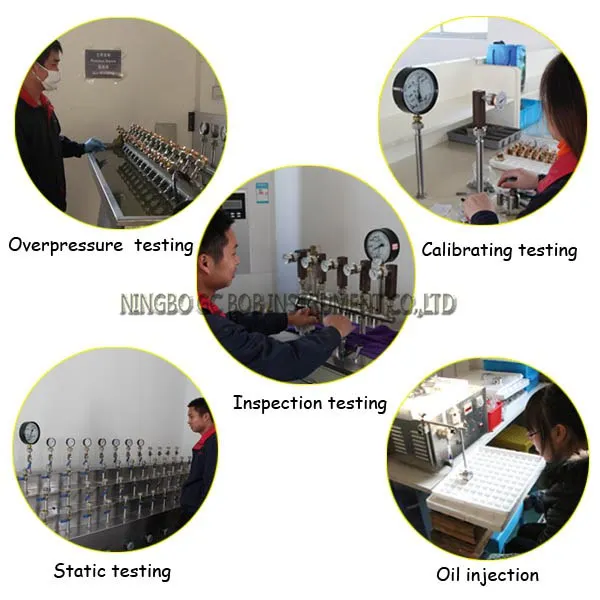

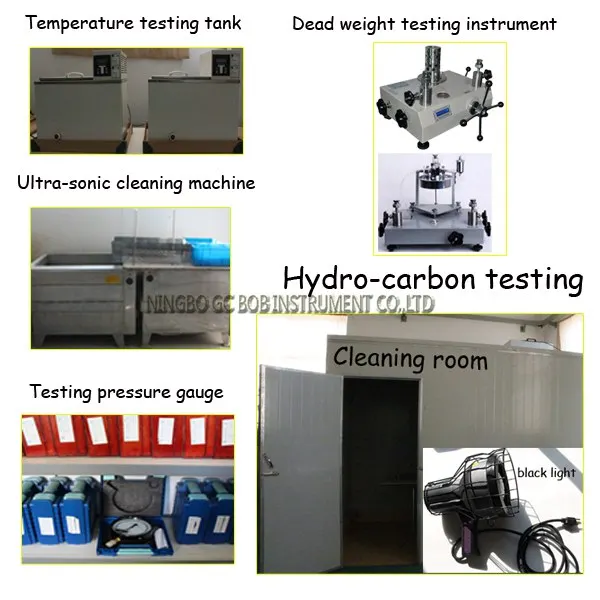

Testing

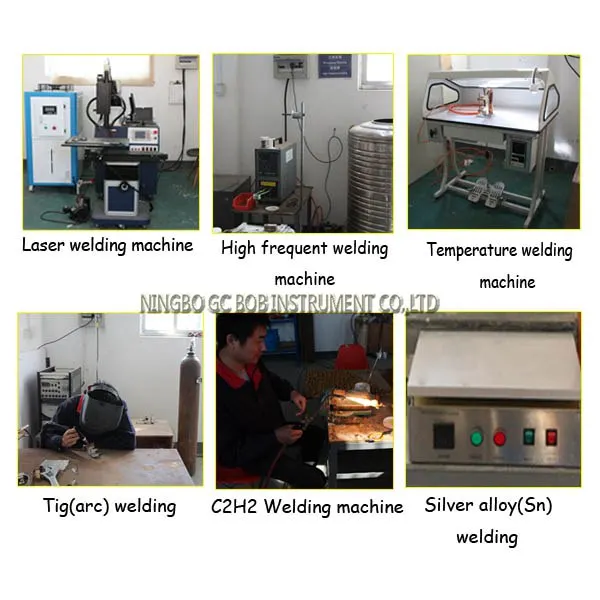

Welding
Quality Control
From the raw material to the finished production we have the very strict and serious procedure to guarantee our products get to the different quality requirements.
Ningbo GC-BOB Instrument Company is a professional pressure gauge & thermometer manufacturer which located in China main port Ningbo, cover an area of 2000 square.
Main Products:
Mass production:
Exhibition:
Why choose us? ------- Ningbo GC Bob Instrument Co.,Ltd.
------------------------------------------------------------------------------------------------
1) Advance Equipment and Professional Technology: we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.
2) Best After-sales Service : Our company provide best after-sale service all the time , for our goal is a long trade cooperation term.
3) Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated.
4) Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs.
5) Convenient Purchase And Save Cost: GCBob is a direct exporter and skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price.
6) Best Reputation : Our factory have ten years experiences and have already gaining the best reputation and response from the customers from all over the world.
7) OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .
8) Multilingual: We can provide all kinds of languages, English, Spanish, French, Arabic, Japanese, Russian, meet the different needs of our customers.
Welcome OEM orders and process according to customer’s sample or drawing. We will constantly develop new products, new technology of application and consistently focus on product quality and after-sales service with the company's image,our goal is a long trade cooperation term.
-
