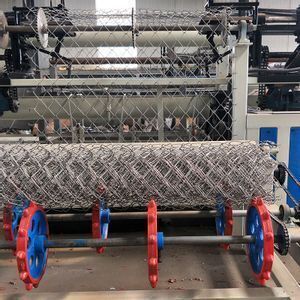

2 worms fully automatic chain link fence making machine with compact roll

Supplier: Anping County Second Barbed Wire Factory
Region: Hebei, China
Contact: Ms qian li
Price: $2500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Machine Type:	Chain Link Fence Making Machine;	Marketing Type:	New Product 2020;
Warranty of core components:	1 Year;	After-sales Service Provided:	Online support,Video technical support,Field maintenance and repair service;
Key Selling Points:	Easy to Operate;	Condition:	New;
Core Components:	PLC;	Weight (KG):	2000;
Model Number:	OLT-CLFM-C1;	Warranty:	18 months,1 Year;
Production Capacity:	20-150m2/h;	Power (kW):	5.5;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Power:	5.5kw;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Mesh width:	0.5-6m;
Woven wire diameter:	1.5-5.0mm;	Place of Origin:	Hebei China;
Brand Name:	OLT;	Machinery Test Report:	Provided;
Applicable Industries:	Manufacturing Plant;	Application:	weaving diamond wire mesh;

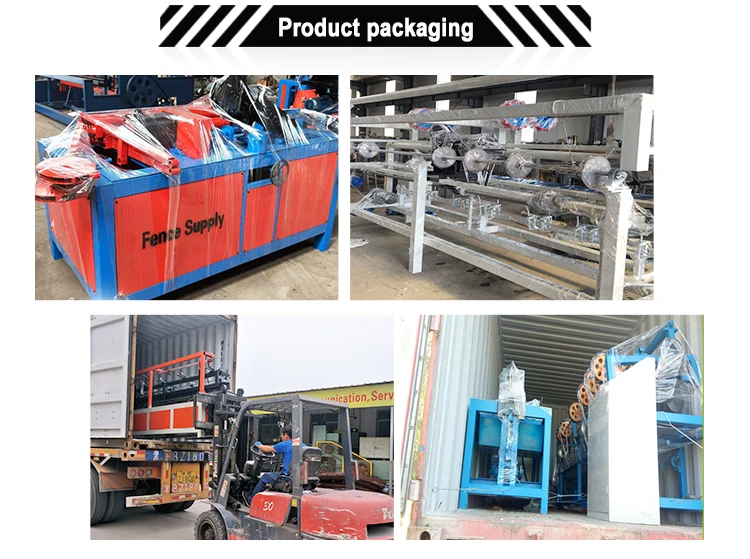

Video outgoing-inspection:	Provided;	Packaging Detail:	Chain link fence machine package with waterproof paper outside for full container loading.;
Showroom Location:	None;	Product name:	fully automatic chain link fence making machine with compact roll;
Mesh size:	2525-150150mm;	Port:	TIANJIN;
Package Preview:	;	Mesh length:	1-50m;
Local Service Location:	None;	Wire feeding system:	double wire/single wire;
Supply Ability:	60 Set/Sets per Month Chain link fence machine;	Type:	fully automatic/semi automatic;

2 worms fully automatic chain link fence making machine with compact roll

Detailed Information:

1. Fully Automatic Chain Link Fence Machine:
can produce many different hole size of the mesh with different molds.The machine is controlled by PLC,we can set the length of the fence by PLC.The machine only need one worker for operating.

Chain link fence machine performance:
1.It could work both of galvanized wire and pvc coated wire.
2.With alarm system for emergency matters occure.
3.Stop automaticlly.
4.With single/double wire feeding system.
5.It could adjust the mesh width automaticlly.
6.With high working efficiency and low noise.

Item	Single wire Fully automatic chain link fence machine			Double wire Fully automatic chain link fence machine
Wire Dia.	1.5-5.0mm			1.8-5.0mm
Hole Size	2525mm-120120mm			3030mm-120120mm
Material	galvanized wire, pvc wire			galvanized wire, pvc wire
Width	2m	3m	4m	2m	3m	4m
Capacity	20-130M2/h			30-150M2/h
Power	3.8kw/h			5.5kw/h
Mould	4set mould for free			4set mould for free
*Size(LWH)*	3.83.21.5M	4.83.21.5M	5.83.21.5M	52.21.7M	62.21.7M	72.21.7M
Weight	1.7T	1.8T	1.9T	1.9T	2.0T	2.1T
Warranty	One year
Operation	one person control 2 machine

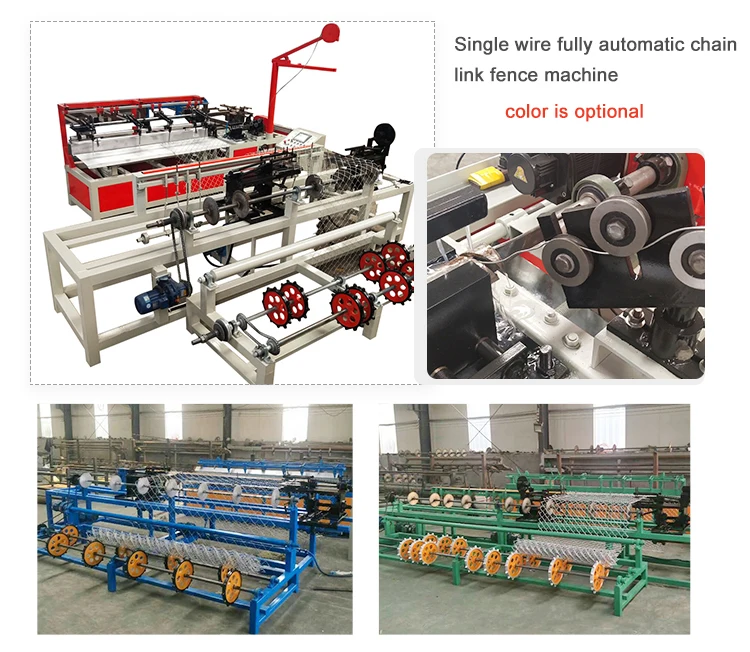

Single wire full automatic chain link fence machine adopts single wire feeding system.It can weave hole size from25mm*25mm to 120mm*120mm with wire diameter from 1.5mm to 5.0mm.This type machine is popular in India market.It can work with hard wire and working performance is very good.

Single Wire Machine detail introduction info, please CLICK HERE to check.

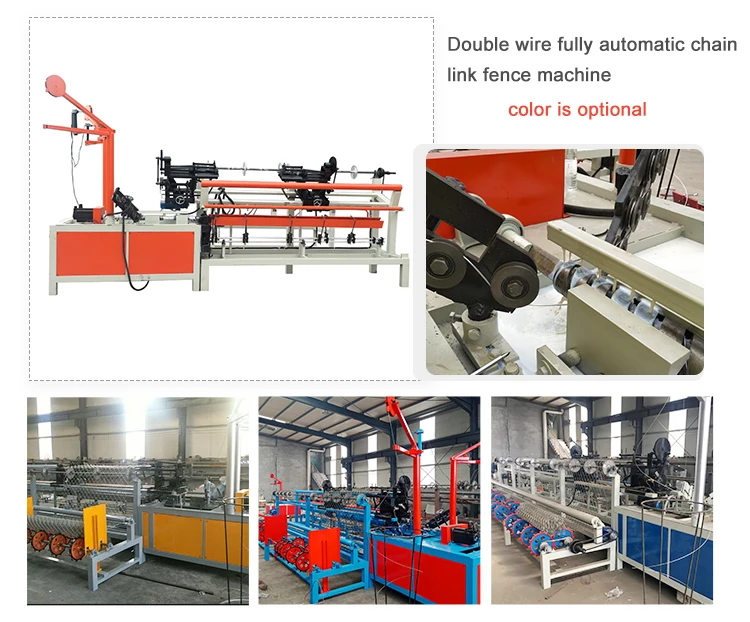

Double wire full automatic chain link fence machine adopts double wire feeding system,it can weave hole sizefrom 30*30mm to 120*120mm with wire diameter from 2.0mm to max 5.0mm.The machine need to working with soft wire and has high production capacity.

Double Wire Machine detail introduction info, please CLICK HERE to check.

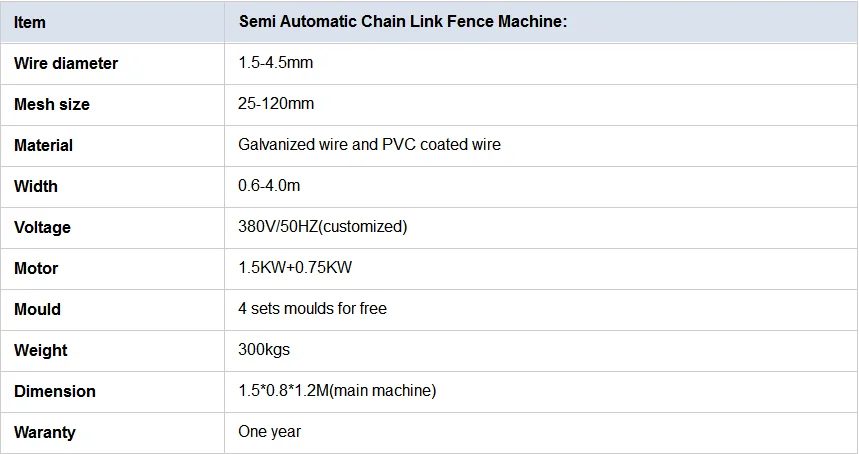

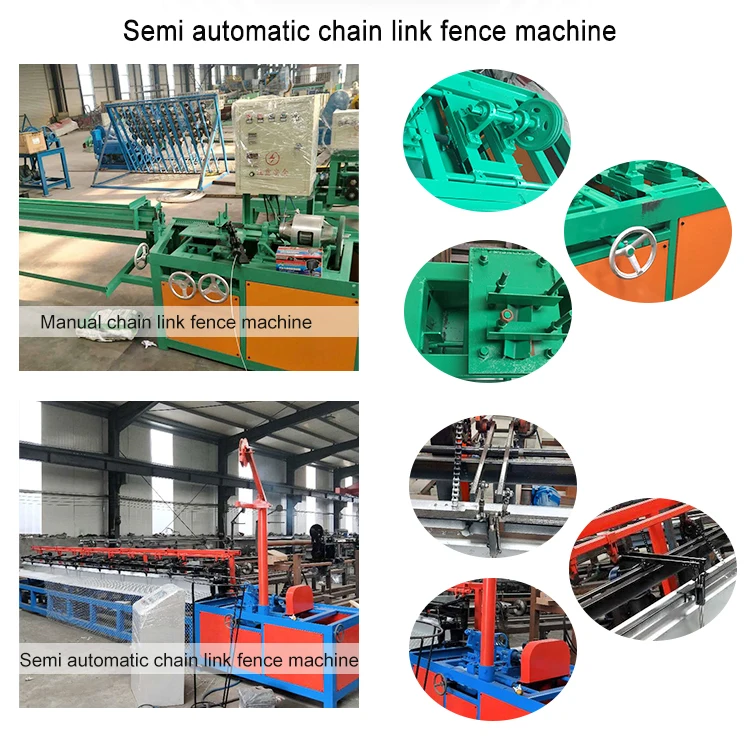

2. Semi Automatic Chain Link Fence Machine:
This machine is very easy to operate and move, you can operate it very skillfully, and the price is very cheap and low noise,It is very suitable for home - type factories and cheap labor areas.It suitable for new partner.
