Key Selling Points: | Easy to Operate; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,Paypal; | Temperature range: | 0~180; |
Rotating Speed: | 350 rpm; | Evaporator speed(H2O)): | 3~300L/h; |
Application Industries: | Pharmaceutical Processing, molecular distillation machine; | Place of Origin: | Jiangsu China; |
Applicable Industries: | Hotels,Garment Shops,Manufacturing Plant; | Port: | Shanghai Port; |
Product: | CBD oil; | Display: | LCD Display; |
Voltage: | 110V/220V/360V/480V; | Warranty: | 1 Year; |
Power: | 8kw; | Dimension(L*W*H): | 2200*500*2000mm; |
Condition: | New; | Local Service Location: | Canada,Turkey,United States,France; |
Packaging Detail: | Standard Exported Wooden Case; | Package Preview: | ; |
Usage: | Herbal and CBD oil separation; | Showroom Location: | Canada,United Kingdom,United States,France; |
Supply Ability: | 100 Set/Sets per Month Short path distillation machine; | Weight: | 320kg; |
Vacuum degree: | 0.098Mpa; | Brand Name: | PHARMA; |
Process: | Vacuum Distillation; | Material: | Stainless Steel 304/316L glass; |
Receiving Flask: | Discharge; | Power Source: | Electric; |
Certification: | CE/ISO; | After-sales Service Provided: | Field installation, commissioning and training; |
Model | PH-06 | PH-08 | PH-10 | PH-25 | PH-50 | PH-100 | PH-200 |
Evaporation Area m2 | 0.06 | 0.08 | 0.1 | 0.25 | 0.5 | 1 | 2 |
Feeding Rate L/h | 1-3 | 2-5 | 3-7 | 5-10 | 8-15 | 10-25 | 20-40 |
Feeding Method | High-precision gear pump | ||||||
Receiving Method | Continuous discharge pump | ||||||
Equipment Height(mm) | 2000 | 2200 | 2500 | 3000 | 3100 | 3200 | 3300 |
Max Speed(rpm) | 50-350 | ||||||
Operation Temperature | Up to 350C | ||||||
Vacuum Level(mbar) | Low to 0.001 mbar | ||||||
Collection Mode | Gear pump for automatic and continuous feeding |

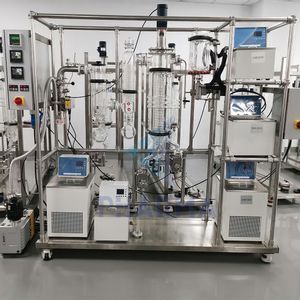

The wiped film molecular distillation unit is superior than traditional short path distillation kit by shorter residence time, lower separation temperature, capability of continuous and unattended operation.
The units are available in various sizes.
Now this machine is widely used for CBD separation from crude oil.
