2-WAVE Crash Barrier Roll Forming Machine

Galvanized W Beam Highway Guardrail Beam Roll Forming Machine

Profile Drawing:

We can design the punching parts according to the requirement.

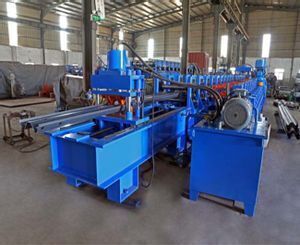

1.Detailed Images of Highway Guardrail Beam Roll Forming Machine

    Machine Parts

        1) Pre-Leveling device

        Brand: BMS    Original: China

        2) Hydraulic pre-Punching device

        Brand: BMS    Original: China

        Total two Punching cylinders; Hydraulic Group: 22KW

        3)  Highway Guardrail Beam Main forming machine

        Brand: BMS    Original: China

        Rollers manufactured from Cr12Mov(SKD11), precision machined

        Shafts Diameter=105mm,precision machined

        Gear box drive (upper and lower rollers with power)

        Main Motor=45KW  , Frequency speed control

        4) Hydraulic post Cutting device

        Brand: BMS    Original: China

        with Hydraulic Post-cutting, stop to cutting, No blanking cutting

       Cutting tool material: Cr12Mov, Heat treatment

        5) PLC Control System

        Brand: BMS    Original: China

        Control the punching holes quantity and cutting length automatically

        Combined with:  PLC, Inverter, Touch Screen, Encoder, etc

        PLC: Siemens

        6) Exit Rack

        Brand: BMS    Original: China

        Un-powered,two units

        7) 10T*600mm Hydraulic Decoiler with holding arm

        Brand: BMS    Original: China

       Hydraulic Decoiler: one set

       Hydraulic system expand coil inner hole, Pump motor: 2.2KW

       Frequency Inverter to regulate turning speed, Motor: 4.0KW

       Load capacity = Max.10Tons

       Coil inner–diameter=518±30mm; Coil width = Max.600mm

After-sale service of roll forming machine

 1. The warranty of roll forming machine is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.

Terms of trade

 1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: About 100workdays after received the advance payment

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria,etc.

Please contact us if you need more details for this Highway Guardrail Beam
