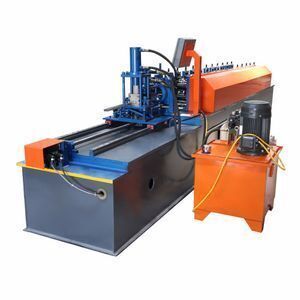

High Speed Metal Stud and Track Roll Forming Machine
-
Supplier: Xiamen BMS Group -
Region: Fujian, China -
Contact: Mr Pablo Andrey -
Price: $39980.00 /set -
Min. Order: 1 set
| Cutter material: | Cr12Mov Tool Steel; | Key Selling Points: | Long Service Life; |
| Warranty of core components: | 2 years; | After-sales Service Provided: | Engineers available to service machinery overseas,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; |
| Certification: | ISO9001; | Production Capacity: | 30-40m/min; |
| Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Farms,Restaurant,Home Use,Construction works ,Energy & Mining,Food & Beverage Shops; | Type: | Steel Frame & Purlin Machine; |
| Voltage: | AC 3-380V/415V/440V; | Marketing Type: | Hot Product 2019; |
| Local Service Location: | United States,Viet Nam,Philippines,Indonesia,India,Australia,South Africa; | Weight: | about 9 tons,about 9 tons; |
| Work Pressure: | 245---550Mpa; | Video outgoing-inspection: | Provided; |
| Dimension(L*W*H): | About 9 M*2.5M*1.8M,About 9 M*2.5M*1.8M; | Warranty: | 2 years; |
| Power: | 5.5KW+2KW; | Core Components: | PLC,Engine,Bearing,Gearbox,Motor,Gear; |
| Forming station: | 12; | Packaging Detail: | Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.; |
| Brand Name: | BMS; | Working material: | galvanized sheet(GI),cold roll steel(CRC),hot rolled steel(HRC); |
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Showroom Location: | United States,Viet Nam,Philippines,Indonesia,India,South Africa,Australia; |
| Machinery Test Report: | Provided; | Place of Origin: | Fujian China; |
| Shaft: | 75mm; | Package Preview: | ; |
| Condition: | New; | Supply Ability: | 30 Set/Sets per Month; |
| Yield strength: | 245-550Mpa; | Port: | Xiamen,China; |
| Housing: | H400 beam; | Payment Terms: | L/C,T/T; |
| Thickness: | 0.6-1.2mm; |
Product Description

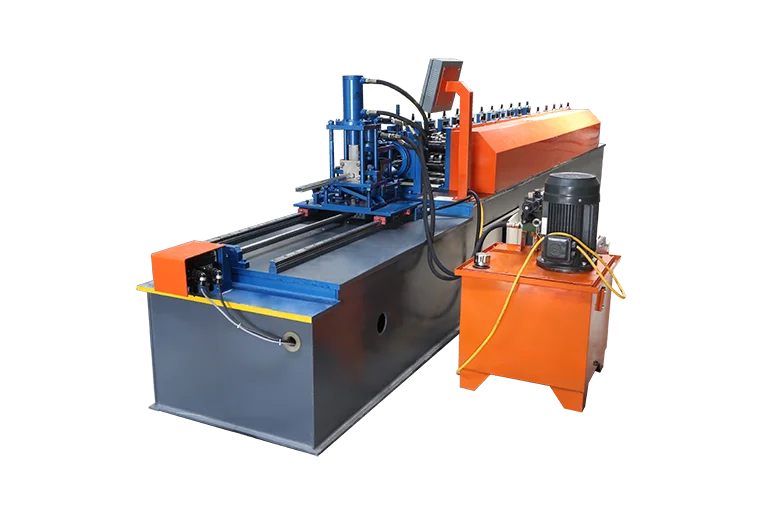

High Speed Stud and Track Roll Forming Machine
(1 machine for multi-profiles,size-changing by spacer)
1.Main features of high speed stud and track roll forming machine
The advantages of high speed stud and track machine are as follows:
1.The speed can reach 30-40 meters per minute
2.Enlarged hydraulic station to ensure high speed working
3.Easy operation, low maintenance cost
4.Beautiful appearance.
5.One machine for multi-profiles,size-changing by spacer
2.Detailed Images of stud and track roll forming machine
Machine Parts
1) High speed stud and track machine arc feeding guide
Brand: BMS Original: China
Arc Feeding Guide(make feeding smooth and no wrinkling)

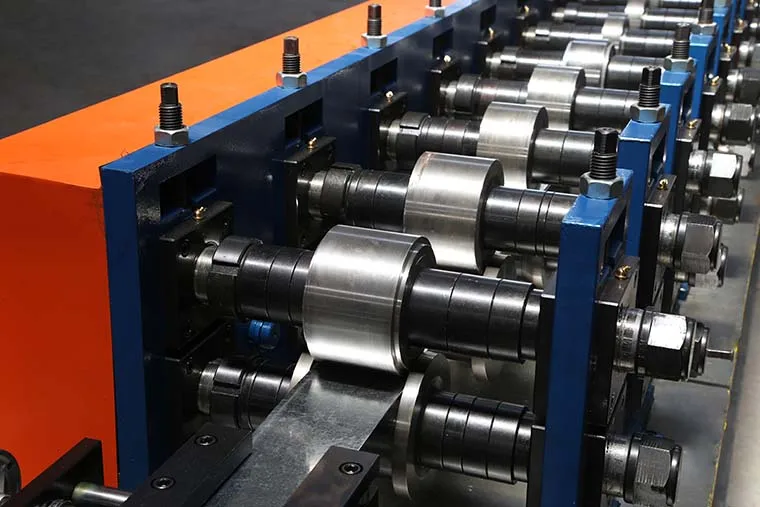

2) High speed stud and track machine rollers
Brand: BMS Original: China
Rollers manufactured from hong life mold steel Cr12=D3 with heat treatment, CNC lathes,
Heat Treatment. (with black treatment or Hard-Chrome Coating for options).
With feeding material guide, body framemade from 400# H type steel by welding

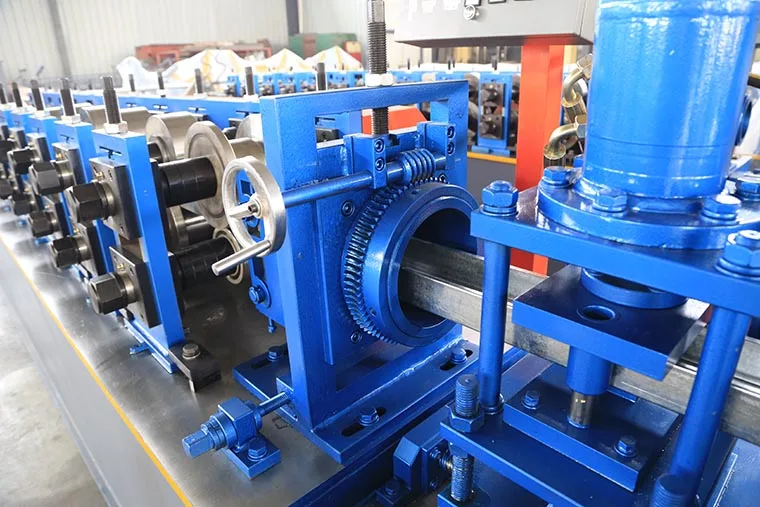

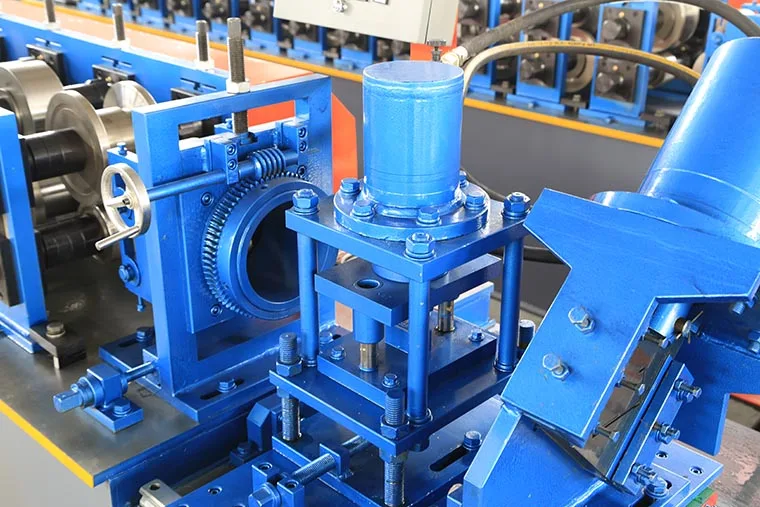

3) High speed stud and track machine straighting and logo punching device
Brand: BMS Original: China

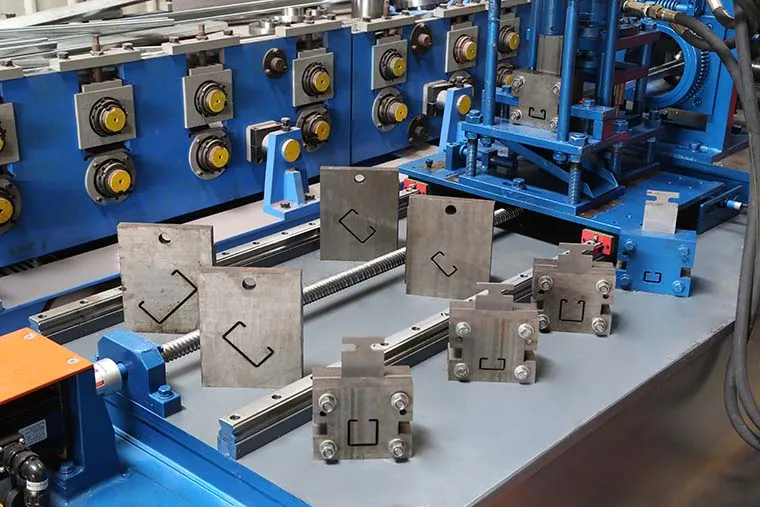

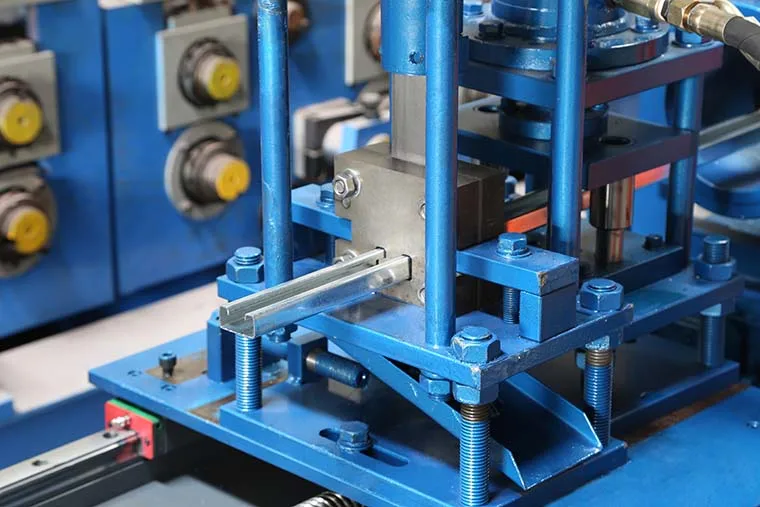

4) High speed stud and track machine flying cutting
(1 machine for multi-profiles,size-changing by spacer)
Brand: BMS Original: China
made by high quality long life mold steel Cr12Mov with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa

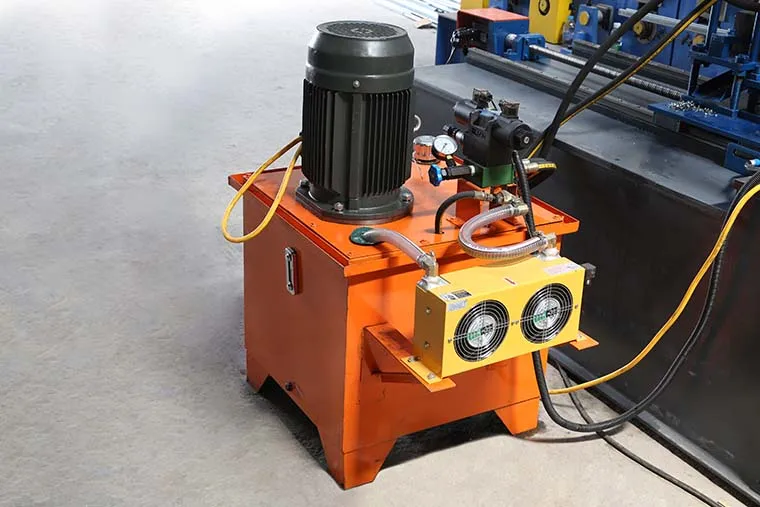

5) High speed stud and track machine hydraulic system
Brand: BMS Original: China
Enlarged hydraulic station to ensure high speed working

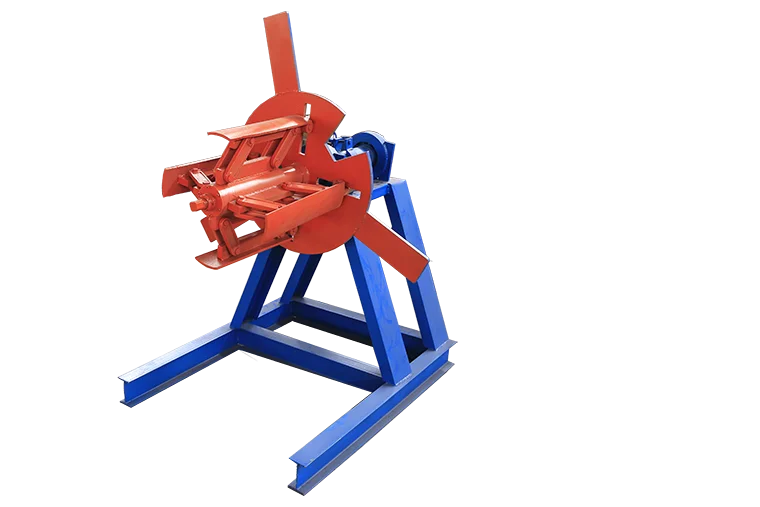

6) High speed stud and track machine decoiler
Brand: BMS Original: China
ManualDecoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 508mm±30mm
Capacity: Max. 3Ton
With 3 tons hydraulic decoiler for option

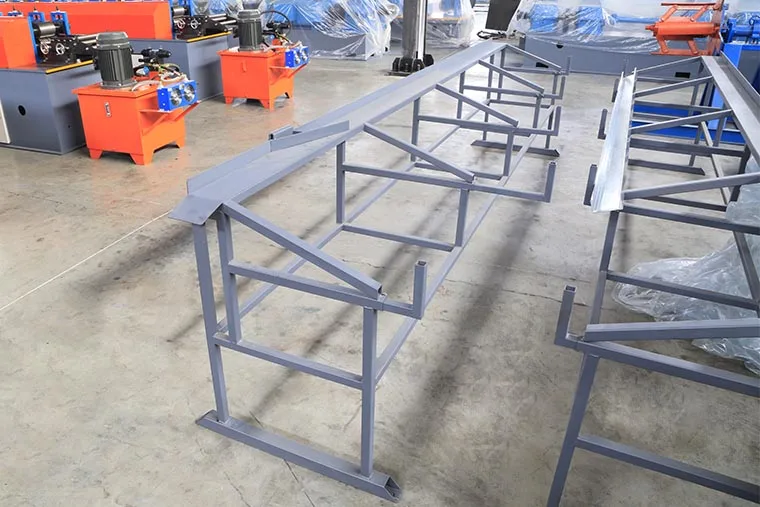

7) High speed stud and track exit rack
Brand: BMS Original: China
Un-powered,4meters long ,one unit
Click here to check the video
Other detailes of high speed stud and track roll forming machine
Suitable for material with thickness 0.6-1.2 mm
Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined
Motor driving,Gear chain transmission, 12 rollers to form.
Main servo motor=2.0KW , Frequency speed control. Forming speed approx.30-40m/min
PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English
After-sale service of stud and track roll forming machine
1. The warranty of stud and track roll forming machine
is one year after the client receives the machine.
Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
