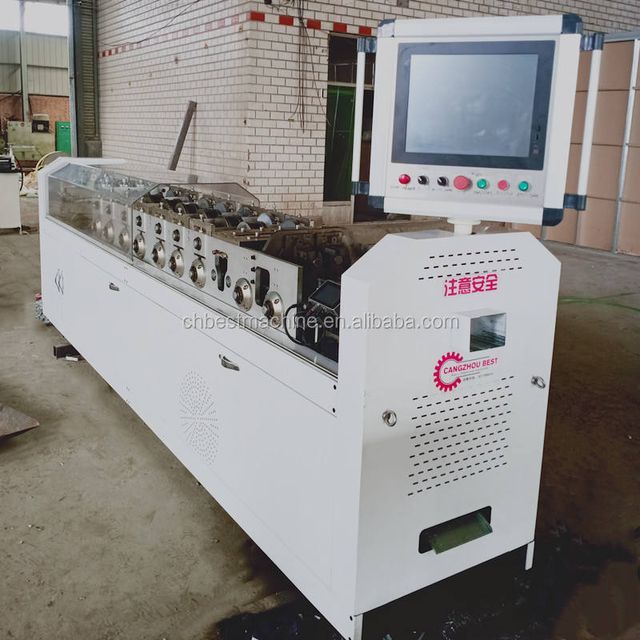

House light steel villa light steel keel forming machine

Supplier: Cangzhou Best Machinery Manufacturing Co., Ltd.
Region: Hebei, China
Contact: Mr Arno Hao
Price: $8500.00 / 1 - 2 sets
$8000.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

port:	Tianjin new steel house light steel villa light steel keel forming machine	Health status:	new
Warranty:	2 years	Core component warranty:	1.5 years
Marketing Type:	2020 New Products	Uncoiler:	manual
Production capacity:	8-12m/min	type:	Steel frame purlin machine
Shaft material:	45 # steel	Bottom frame:	360H steel
Name:	House light steel villa light steel keel forming machine	color:	According to your requests
Video outbound inspection:	if	Package preview:
Main selling points:	easy to operate	After Warranty Service:	Video technical support, spare parts, on-site maintenance and repair services
Supply capacity:	C-shaped channel steel forming machine supplier 10 sets per month	Mechanical test report:	if
Dimensions (LWH):	870015501910mm	Local service locations:	not any
Origin:	Hebei china	Voltage:	380V/50HZ three-phase
Cutting type:	hydraulic cutting	usage:	C purlin
strength:	15 kW	Certification:	CE/IOS
brand:	CHBEST	Applicable industries:	Building material stores, machinery repair shops, manufacturing plants, energy and mining
Work pressure:	235---550Mpa	weight:	10.5 tons
Packaging Details:	Standard export package 1. 1*40 GP container; the host is exposed and fixed in the container with wire. 2. The roller is oiled and packed with plastic film. 3. Electrical equipment is packed in wooden boxes. Standard export packaging. House light steel villa light steel keel forming machine	Showroom location:	not any
payment terms:	L/C, T/T, Western Union, MoneyGram	After-sales service provided:	Free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support
Control System:	PLC (imported brand)	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
thickness:	1.5-3 mm	axis:	70 mm

Product Description

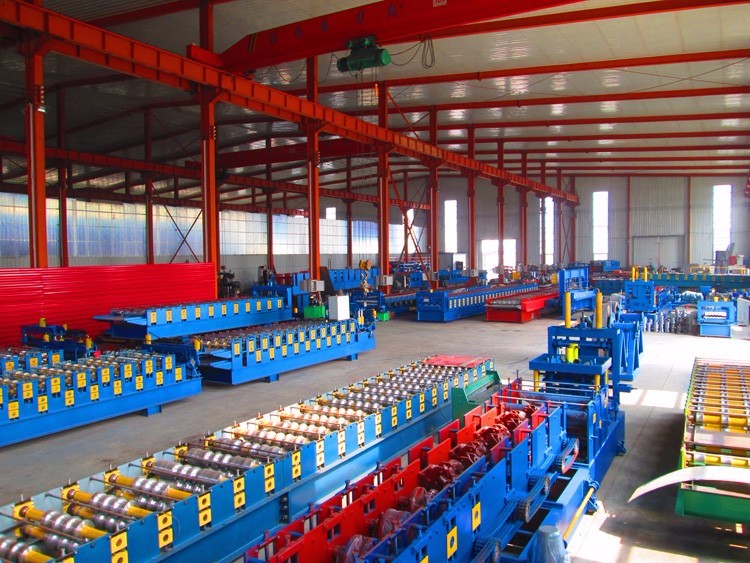

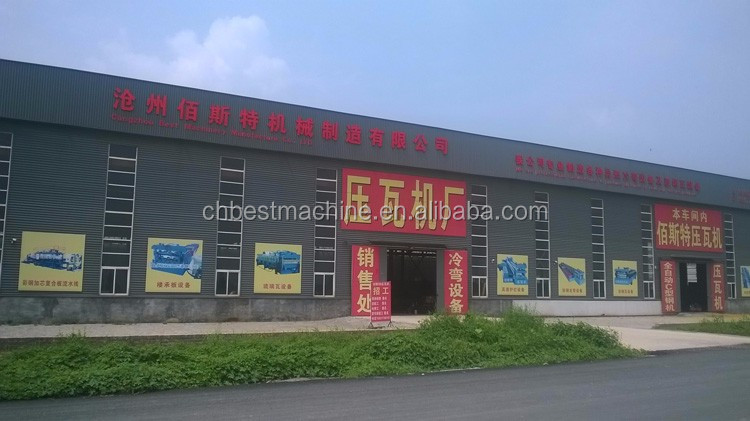

Company Profile

Cangzhou Best Machinery Manufacturing Co., Ltd. is a professional manufacturer of high-end cold roll forming equipment, with professional engineers for technical guidance. Engineers have been engaged in the design of cold-formed machinery and equipment for more than 20 years, and have rich design experience and concepts. Can provide users with the design and manufacture of special models. At the same time, it provides one-stop service for installation, guidance, production and commissioning of the equipment sold.

C Channel Forming Machine Specification Supplier

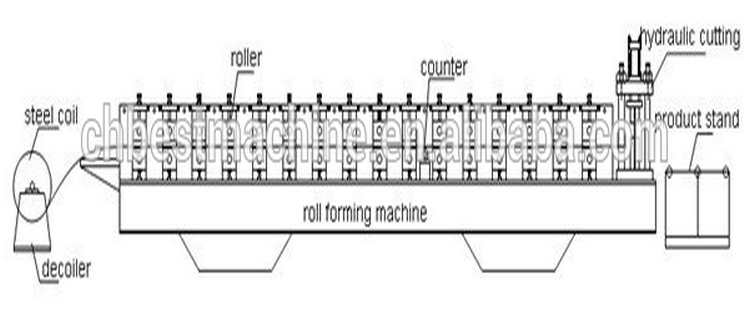

detailed image

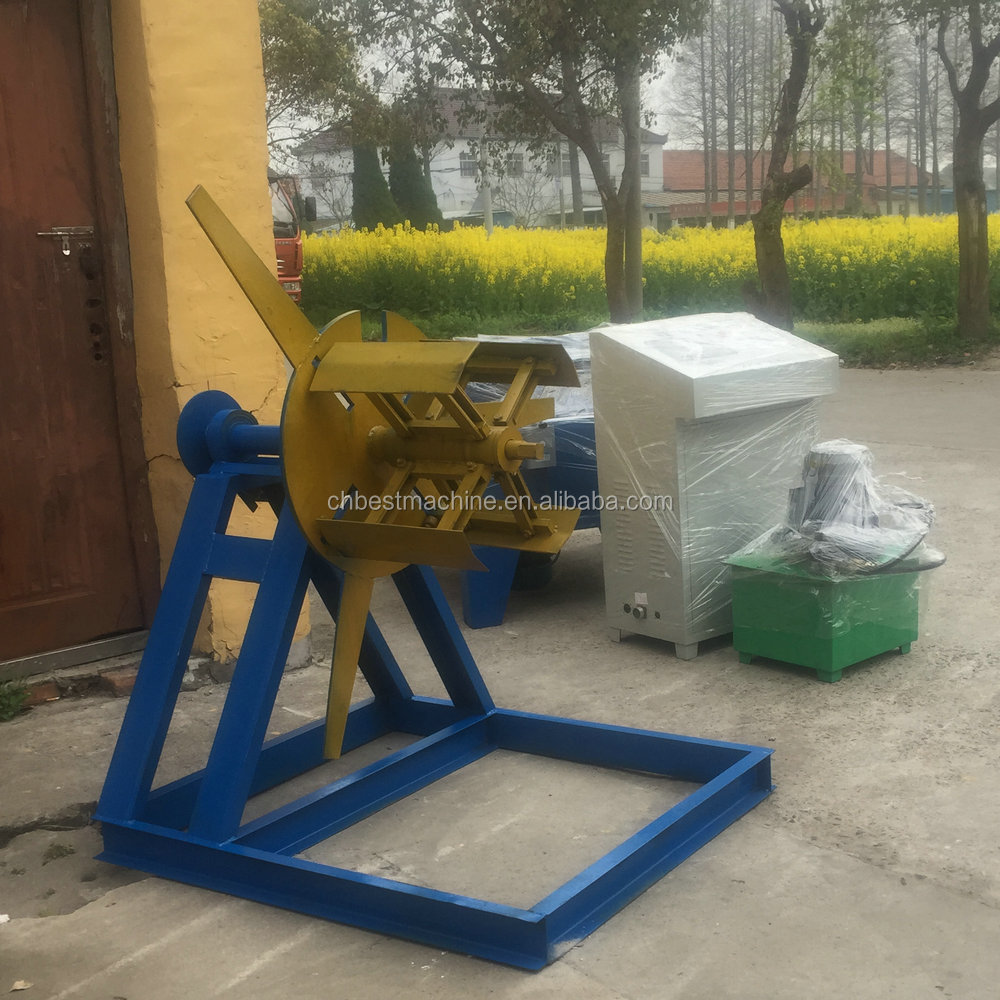

Uncoiler 1 set

Capacity: 5000kg
Width: 600mm
Inner diameter: 450-550mm
Outer diameter: 1500mm
Type: hydraulic or manual (optional)

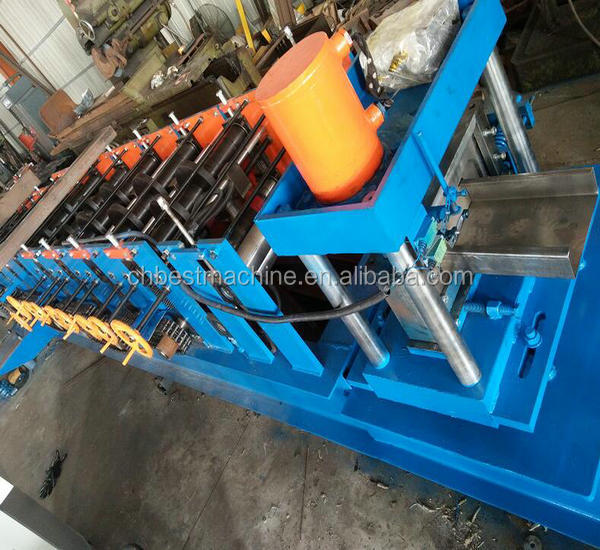

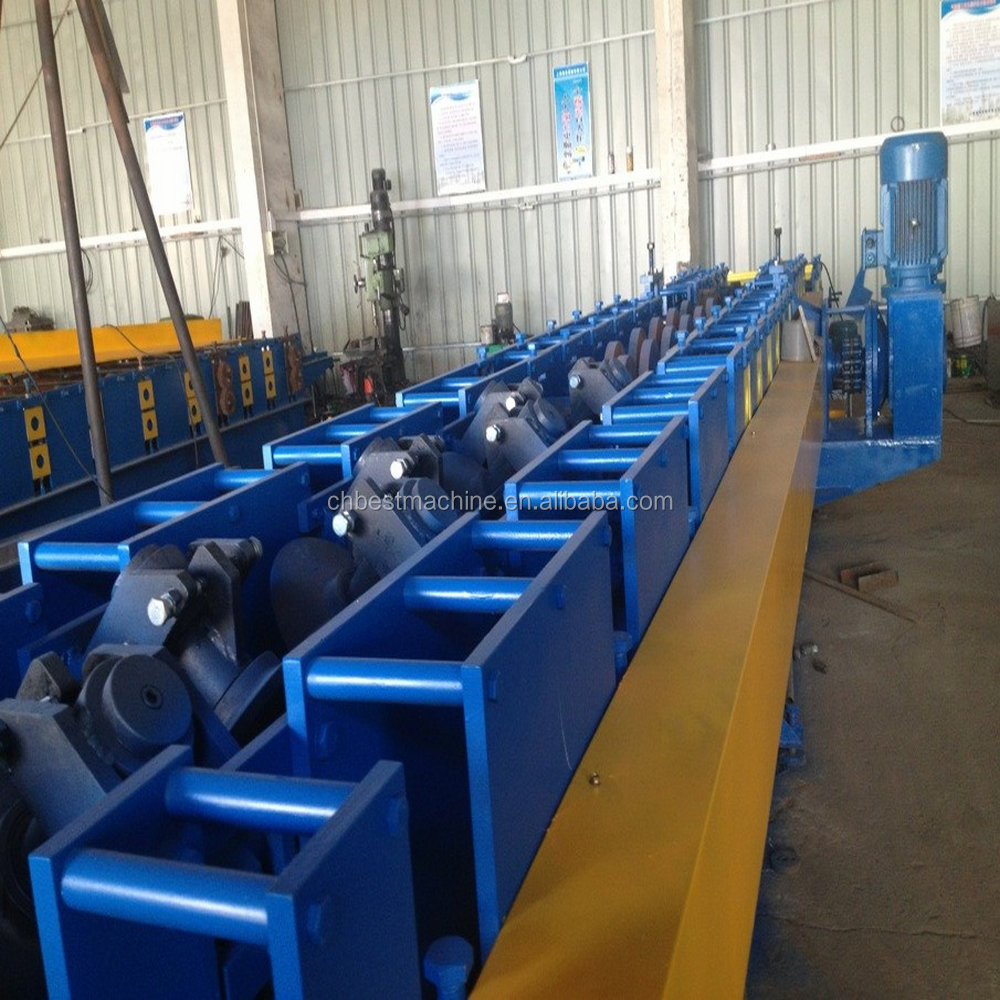

Forming machine 1

Roller: 13 groups
Roller material: Gcr15 steel polishing and coating quenching HRC55-60°
Shaft Material: #45 steel treated
Shaft diameter: 70mm
Frame panel thickness: 20mm
Chassis: 360H steel
Motor power: 11kw

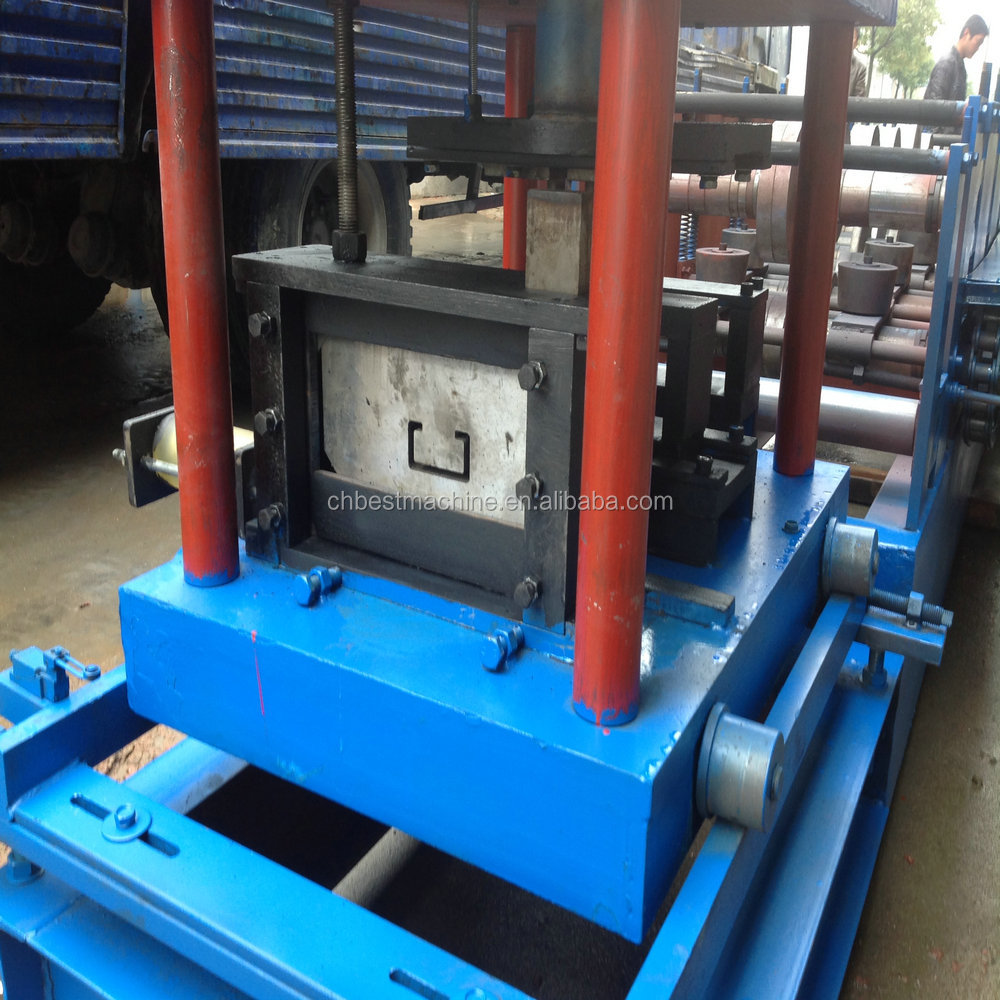

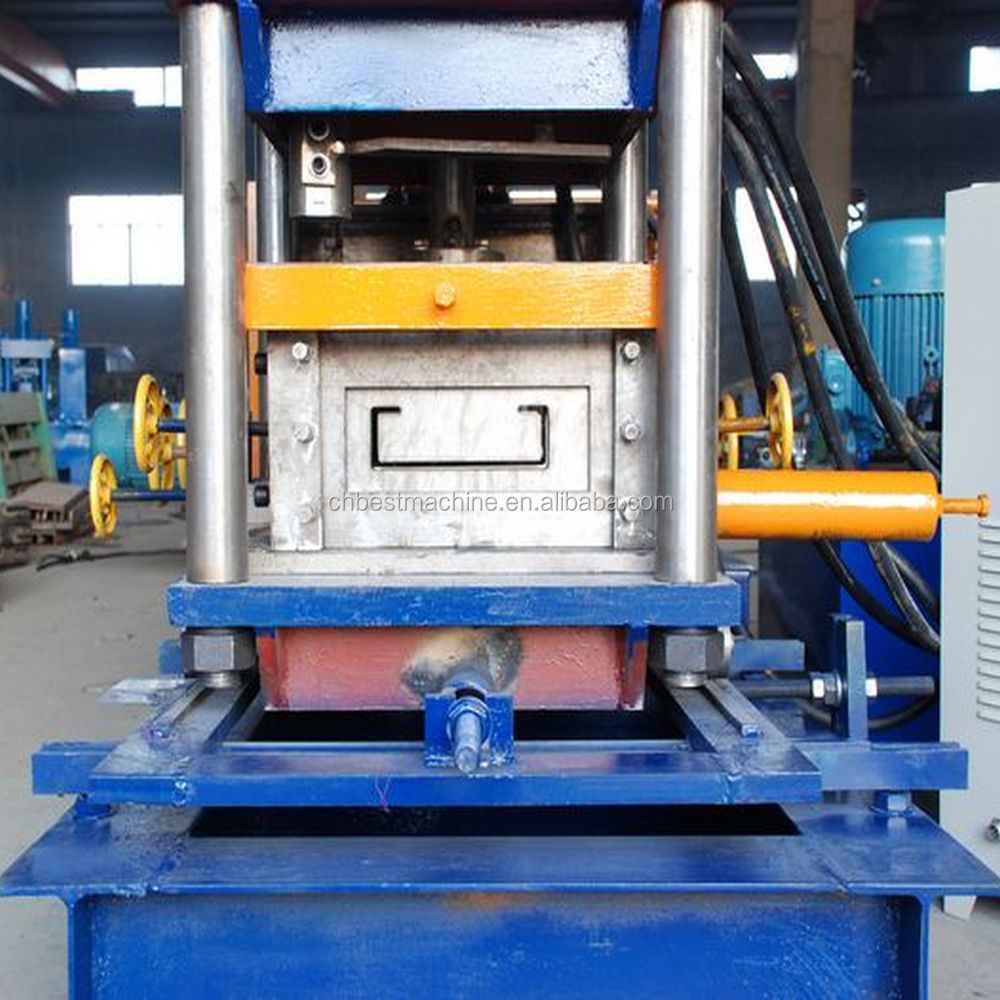

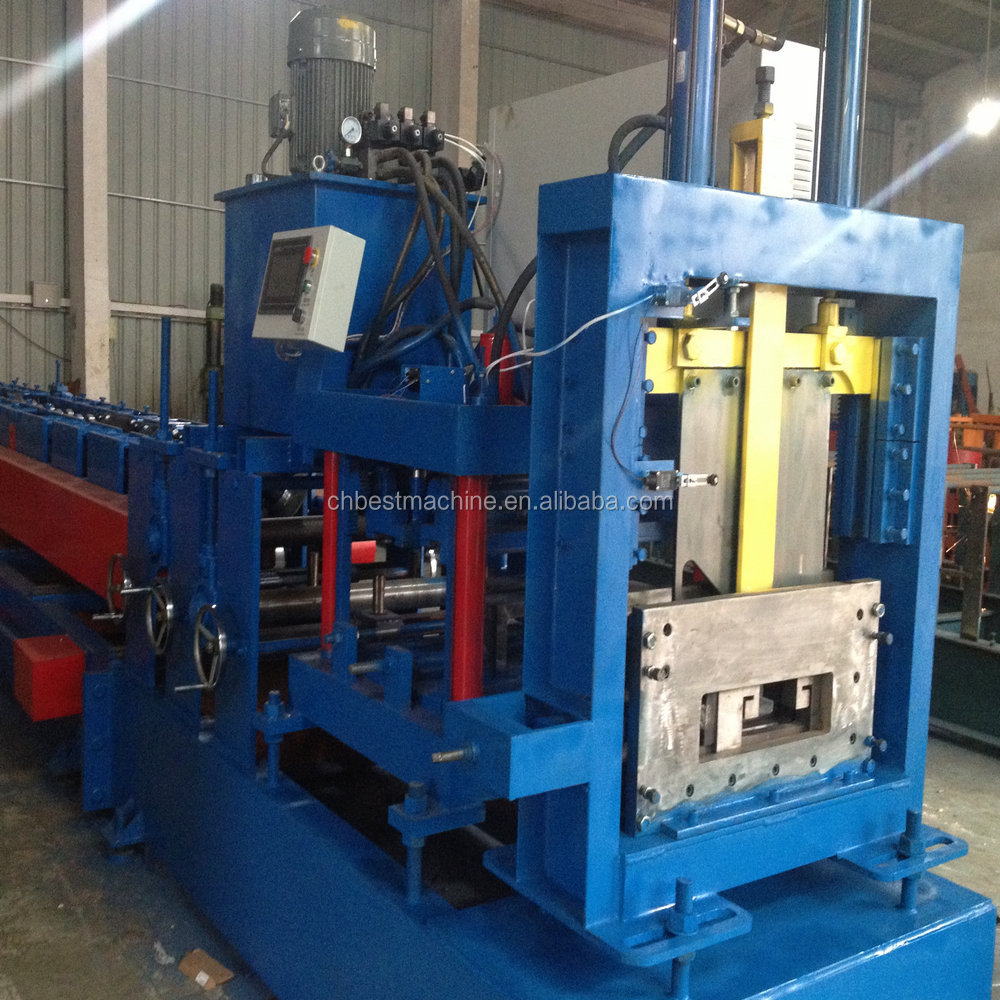

1 set of cutting device

Type: hydraulic
Drive: 2 inch chain
Power: 5.5kw
Cutting module material: treated Cr12 steel

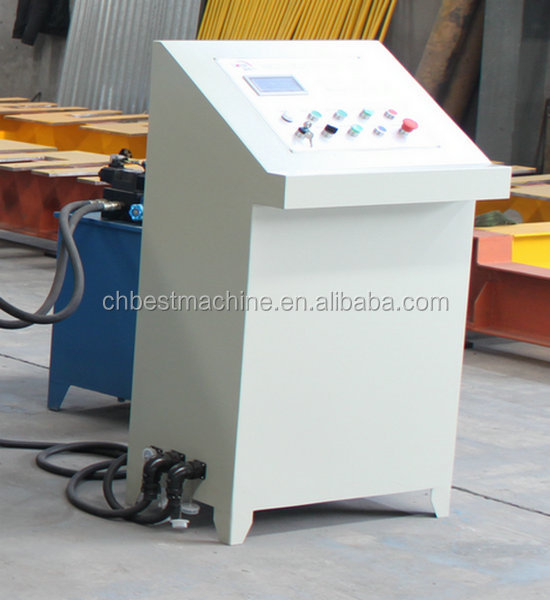

1 set of control system

Type: PLC frequency conversion control system with touch screen
PLC brand: Delta
Encoder brand: Omron
Length error: ±2mm

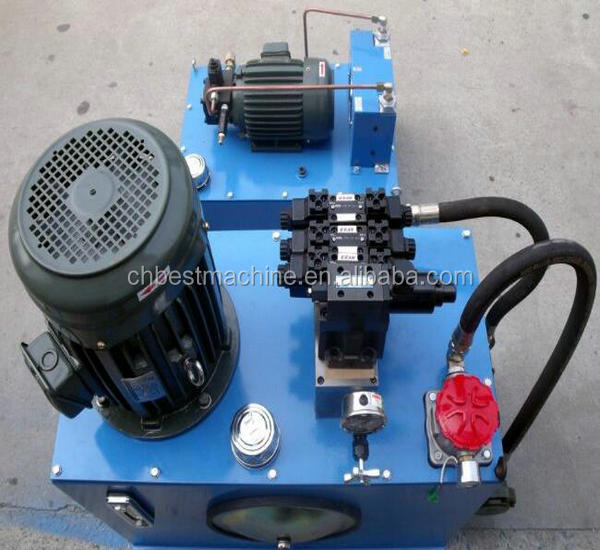

Hydraulic pump 1 set

Power: 3 kW
Oil type: 46# hydraulic oil
Water pump brand: Chinese brand

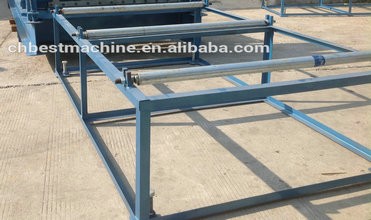

Output table 1 set

Length: 6m
Simple, for loading finished products.

our service

pre-sale service

* Inquiry and consultation support.

* Sample testing support.

* Check out our factory.

pre-sale service

* 24-hour service

* Online Enquiry

* Professional discussion machine

After-sales service

If buyers visit our factory and inspect the machines, we will teach you how to install and use the machines, and train your workers/technicians face to face.
No need to come in person, we will send you user manual and video to teach you to install and operate.

After-sales service

Training how to install the machine, training how to use the machine.
Engineers can repair machinery overseas.

If the buyer needs our technicians to go to your local factory, please arrange board and lodging and other necessary things.
