PLC controlled steel CZ purlin roll forming machine for quick replacement

Product details
Marketing Type:normal productAfter-sales service provided:Online support, video technical support
Mechanical test report:ifDimensions (L*W*H):According to the model
Health status:newSupply capacity:1000 sets per year
Applicable industries:Building materials stores, manufacturing plants, retail, construction workstype:Steel frame purlin machine
weight:98000 kgControl System:PLC control panel
place of origin; place of origin:Jiangsu, ChinaAfter Warranty Service:Video technical support, online support
Local service location:Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, BrazilCore Components Warranty:1 year
Roller Station:14 stopsPackaging Preview:
Video external inspection:ifHydraulic:16Mpa
Core components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pumpBlade material:Cr12
Production capacity:10-20m/minMain selling point:high accuracy
strength:22KWbrand:excellent
Working pressure:16 MPaRoller Material:Cr12
Voltage:380V 50HZPackaging Details:plastic cap
payment terms:L/C,D/P,D/A,T/TShaft Material:40Cr
Showroom location:not anyport:Shanghai
Certification:ISO CEForming speed:16-20m/min
Material thickness:1.5-3.0mmWarranty:12 months, 1 year
main motor power:22kW
CZ80/120-300 Interchangeable cz building materials cold-rolled purlin forming machine
Name: PLC control quick change steel CZ purlin forming machine
Product Description
1. Main features of interchangeable cz cold-rolled purlin machine
The advantages of the automatic variable diameter type of CZ purlin machine are as follows:
1. Produce purlins of different specifications without changing rollers or spacers.
2. No need to change the tool for different sizes.
3. Easy to operate and low maintenance cost
4. Unlimited sizing (any size within the machine range), which helps to save material
5. Optional drilling at any position on the web side and flange side of the purlin

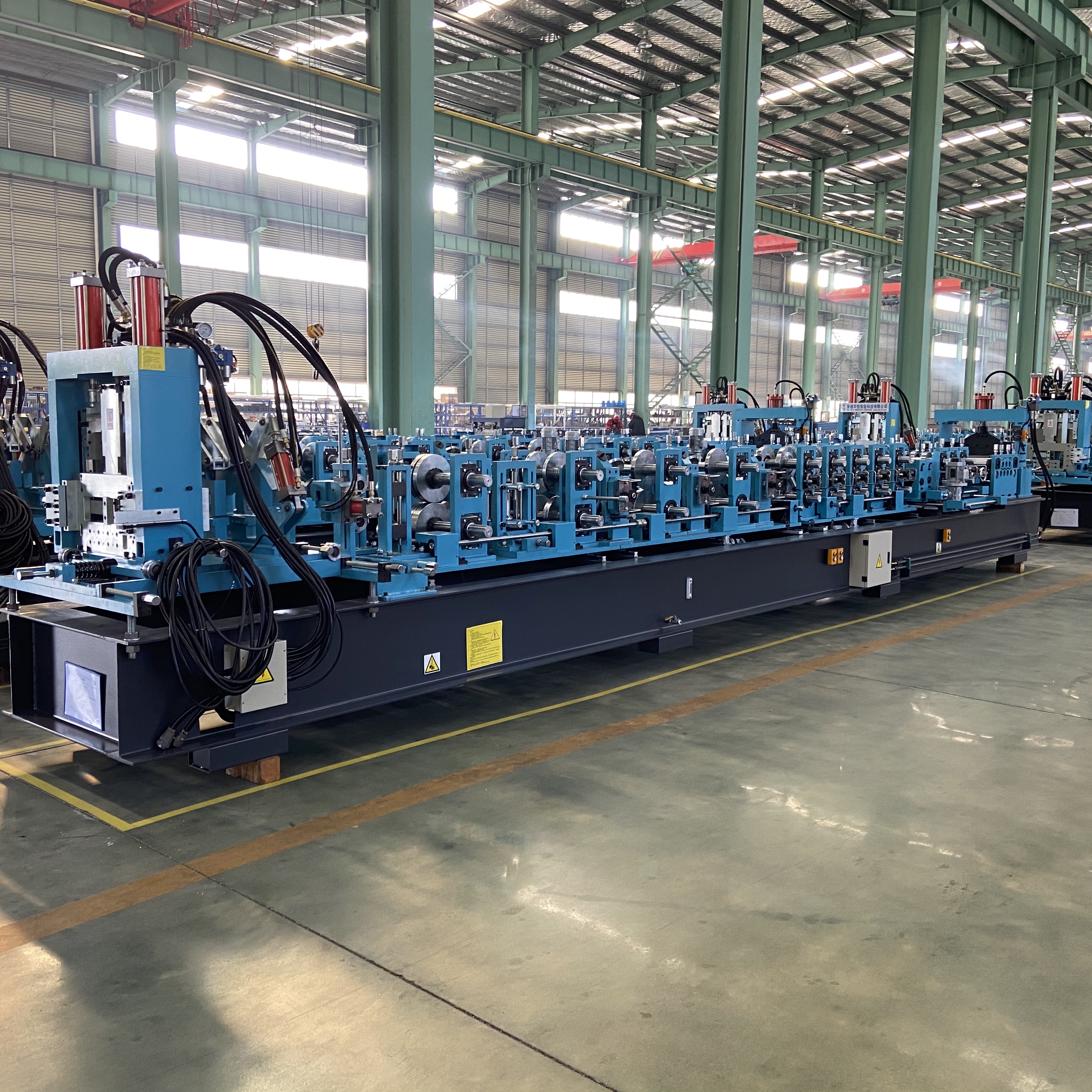

2. Detailed pictures of interchange cz cold-rolled purlin machine

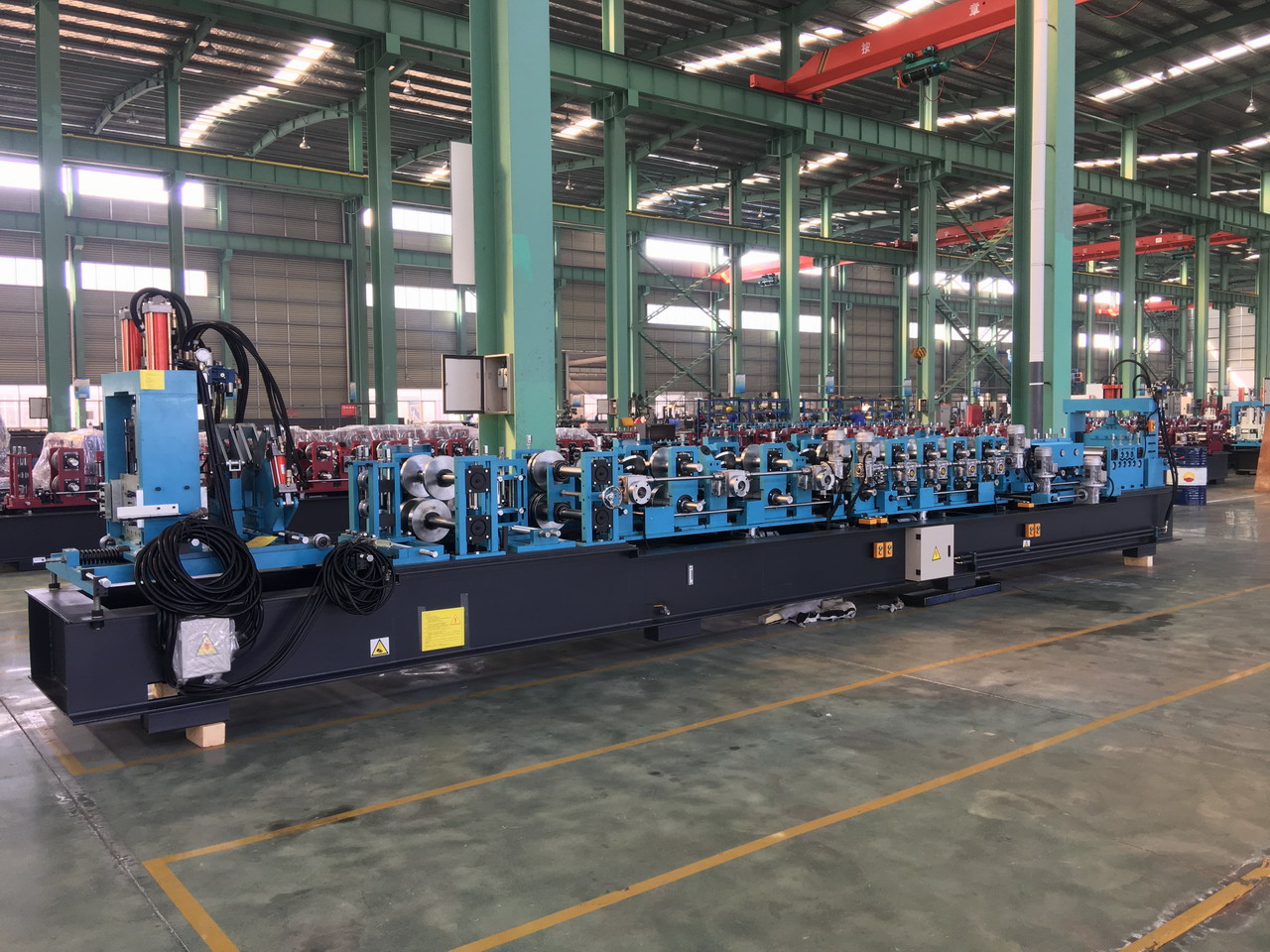

Mechanical Parts

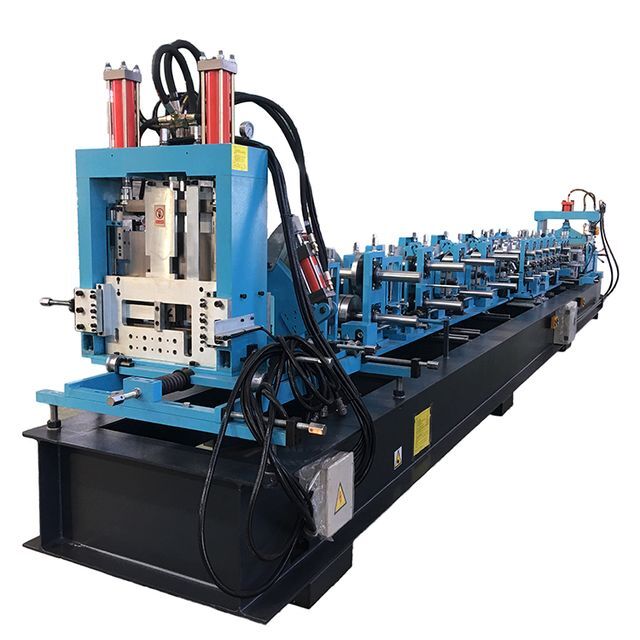

1)CZ Purlin Machine Punching System
3 cylinders (1 cylinder with single hole, 2 cylinders with double holes.

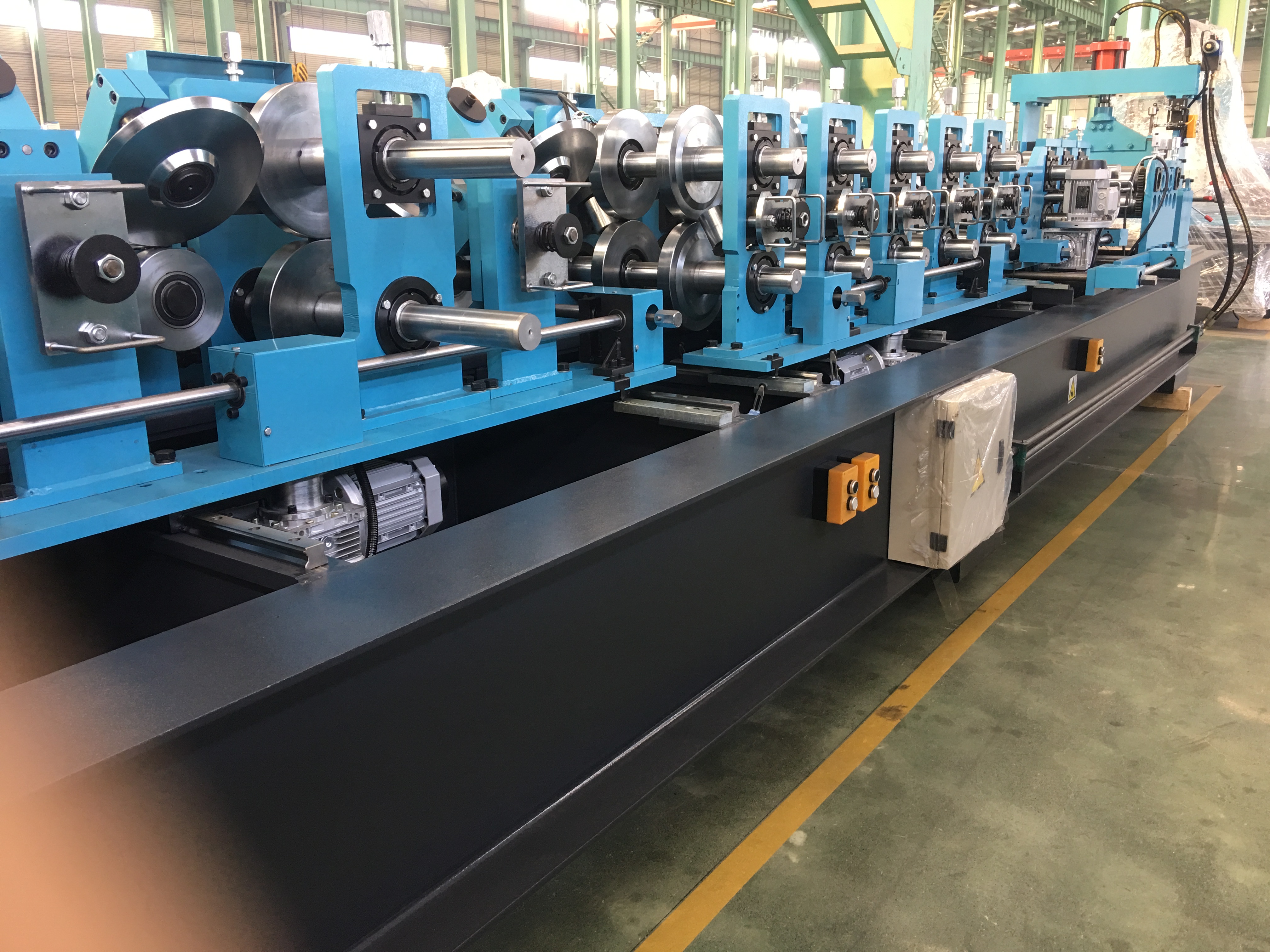

2)Interchange cz cold rolled purlin machine drum
The rollers are made of high quality bearing steel GCr15, CNC lathe and heat treatment.
Available in black finish or hard chrome finish.
With feeding guide rail, the fuselage frame is welded by 400#H-beam
3)Interchangeable cz cold rolled purlin machine back knife
No need to change knives of different sizes,
Made of high-quality die steel Cr12 by heat treatment
The tool holder is welded with high quality 30mm steel plate
Pre-flushing & pre-cutting, stop flushing, stop cutting
Hydraulic motor: 7.5KW, hydraulic range: 0-16Mpa

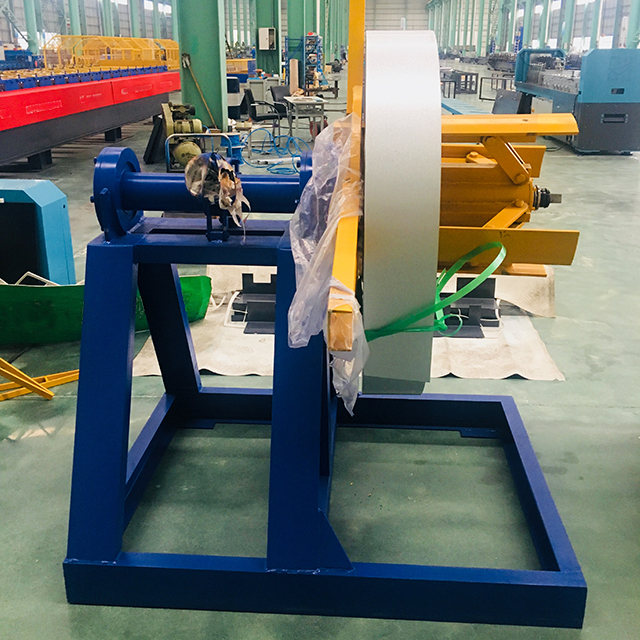

4)Interchangeable cz cold rolled purlin machine uncoiler
Manual uncoiler: one set
No power, manual control of coil inner hole shrinkage and stop
maximum. Feed width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 5 tons

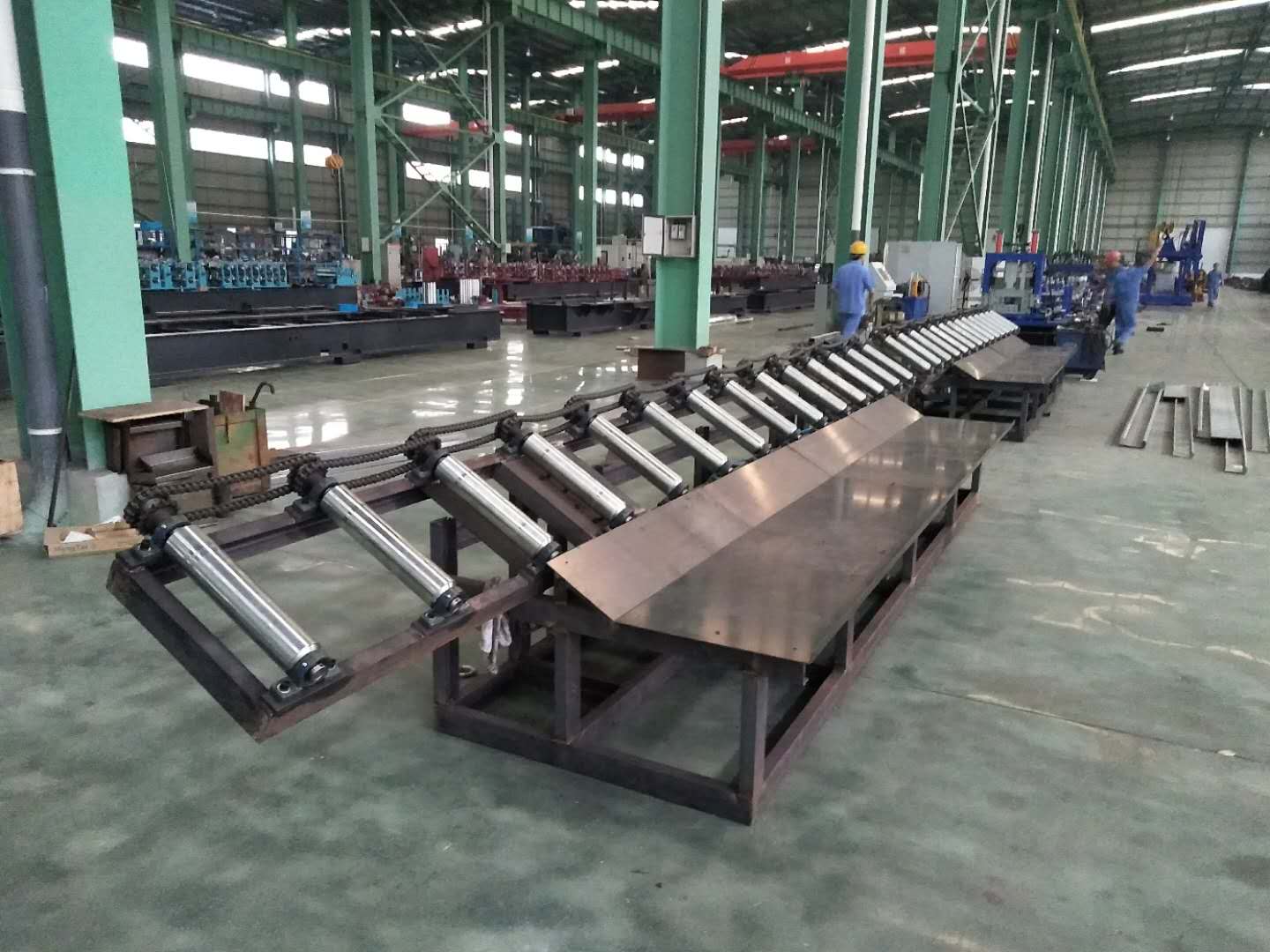

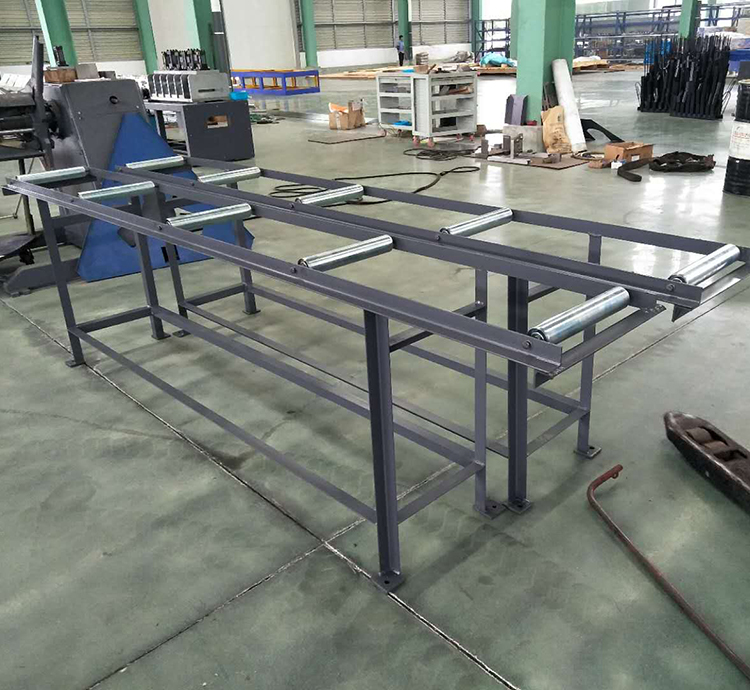

5)Interchangeable cz cold-rolled purlin machine export frame
No power, two units (3m*2)
3. Other details of interchangeable cz cold rolled purlin machine
Suitable for materials with a thickness of 1-3mm
Shaft made of 45#, spindle diameter = φ80mm, precision machining
Motor drive, gear chain drive, 16-roll forming, 7-roll straightening
Main motor=22KW, frequency conversion speed regulation. The molding speed is about 18m/min

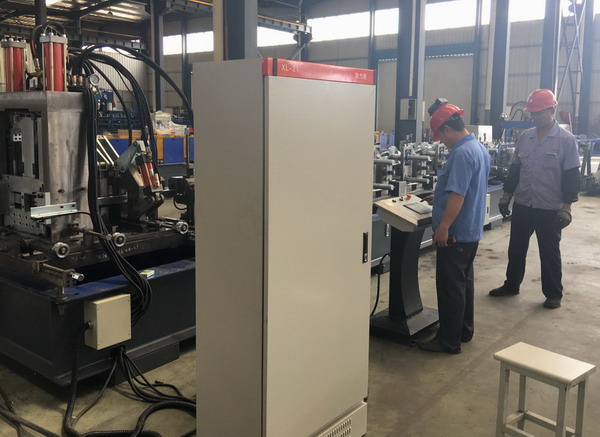

PLC control system Omron (touch screen: Wuxi Xinjie)
Inverter brand: Taiwan DELTA, encoder brand: Japan OMRON)
It only takes 5-10 minutes to complete all operations. No need to change rollers, spacers or tools
Combination: PLC, inverter, touch screen, encoder, etc.
thing
parameter
Coil thickness (mm)
1.5~3
Maximum speed (m/min)
30
Label station (units)
18
Main motor(KW)
22kw (hydraulic motor)
Spindle(mm)
80mm
shaft material
40Cr
Roller material
GCr15
cutting method
Hydraulic cutting (7.5KW)
cutting blade material
Cr12MoV
Punch
3 sets
Control System
PLC control (Xinjet)
size change
PLC control/key
CZ interchange
PLC control/reverse roller
Standard shape profiles (also customizable)

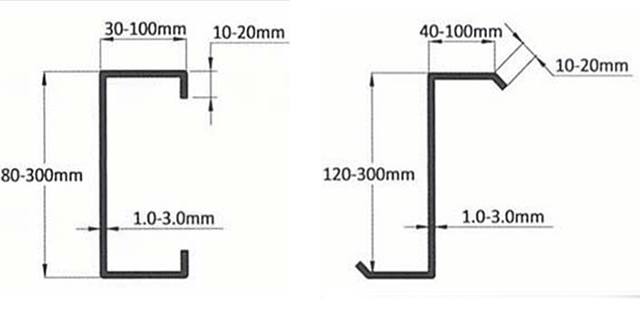

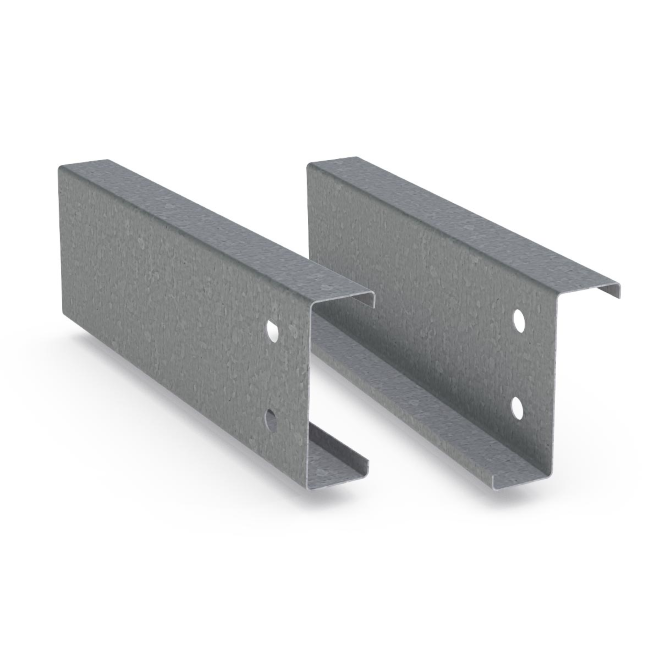

C-type purlin: A=80-300mm; B=40-80mm; C=10-20mm; T=1.5-3mm
Z purlin: A=120-300mm; B=40-80mm; C=10-20mm; T=1.5-3mm
Optional
Fully automatic CZ interchangeable and variable size purlin forming machine.
