Sentek Pill Profile Surface Magnetic Door Window Sensor Contact Switch Alarm

Product details
Packaging Detail:1000pcs/box or depends on request;Depature gap:0.8(20)[Inch(mm)];
Place of Origin:Zhejiang China;Whether the smart:No;
Model Number:BS-2026;Payment Terms:L/C,Western Union,T/T,Paypal;
Max. Voltage:100V;Supply Ability:1000000 Piece/Pieces per Month Pill Profile Surface Magnetic Door Window Sensor Contact Switch;
Reed form:N/O;Certification:CE;
Port:Ningbo;Dimension (Unit:mm):1.1"Lx0.39"Wx0.24"H;
Material:ABS Plastic Case+Magnet;Brand Name:Sentek;
Package Preview:;Closed gap:3/4(19)[Inch(mm)];
Loop type:Closed;Color:White/Brown/Grey/Tan;
Product name:Pill Profile Surface Magnetic Door Window Sensor Contact Switch Alarm;Max. Current:0.5A;

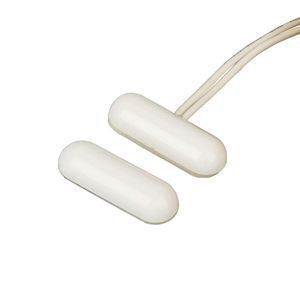

 Sentek Pill Profile Surface Magnetic Door Window Sensor Contact Switch Alarm

Product Description

Specification:

Style: Sentek Pill Profile Surface Magnetic Door Window Sensor Contact Switch Alarm Item: BS-2026
Magnet: Rare Earth Magnet Color: White, Brown, Grey
Wire Range Cable: #20~#24AWG Loop Type: Closed
Reed Form: N/O Colsed Gap[Inch(mm)] 3/4 (19)
Depature Gap[Inch(mm)] 0.8(20) Maximum InitialContact Resistance(Ohm) 0.20
MaximumContact Rating(W) 10 Maximum Switching Voltage(VDC/VAC) 100
Maximum Switching Current(A) 0.5 Certificate CE

Sentek Pill Profile Surface Magnetic Door Window Sensor Contact Switch Alarm

 Dimension (mm):


 Product Features:

*Pill profile

*Narrow width allow for window track installs without drilling into the frames
*Centre leads with 22AWG 18" length
*Adhesive included

*Switch or magnet available separately

*Extra length wires available on request

*Colors:White,Brown,Gray,Tan

Order Information:

+
Part Number Loop Type Reed Form

Closed Gap

[Inch(mm)]

Depature Gap

[Inch(mm)]

Maximum Initial Contact Resistance

(Ohm)

Maximum Contact Rating(W)

Maximum Switching Voltage

(VDC/VAC)

Maximum Switching Current(A)
BS-2026 Closed N/O 3/4(19) 0.8(20) 0.20 10 100 0.5
BS-2026A Open N/C 3/4(19)   0.20 3 30



0.2
