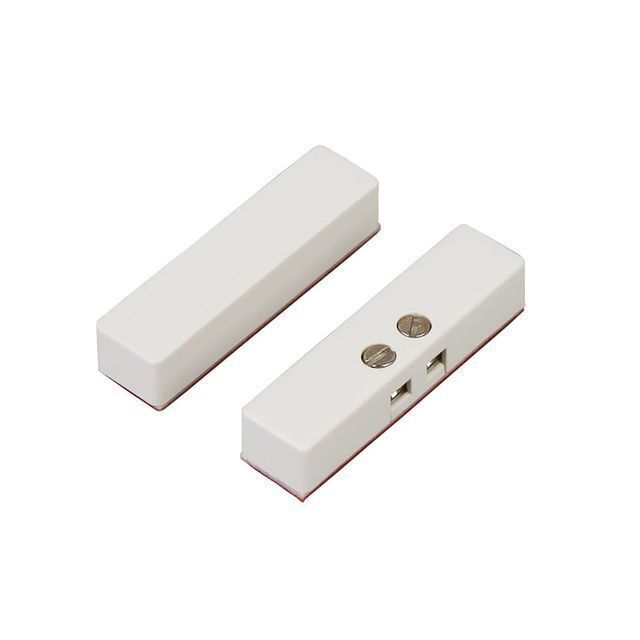

Wired Door/Window Switch Alarm Sensor Magnetic Contact Switch

Product details
Brand Name:Sentek;Port:Ningbo;
Usage:door window;Payment Terms:L/C,T/T,Western Union,Paypal;
Wire range for terminal:#20~#24AWG;Max. Current:0.5;
Model Number:BS-2032OT;Certificate:UL,CUL,CE,ROHS;
Other:Switches or magnets available seperately;Color:White/Brown/Grey;
Installation:Adhesive and screws mount;Material:ABS Plastic,Reed Switch;
Product name:Wired Door/Window Switch Alarm Sensor Magnetic Contact Switch;Packaging Detail:Standard paking 1000pcs/ctn or packed according to customers' request.;
Supply Ability:2000000 Piece/Pieces per Month Wired Door/Window Switch Alarm Sensor Magnetic Contact Switch;Reed Form:N/O;
Place of Origin:Zhejiang China;Max. Voltage:100;
Loop Type:Closed;

Wired Door/Window Switch Alarm Sensor Magnetic Contact Switch

Product Description

 Specification:

Type:

Wired Door/Window Switch Alarm Sensor Magnetic Contact SwitchItem:BS-2032OT
Size:38x9.5x7.4mmColor:White ,Brown Grey
Loop Type:ClosedReed Form:N/O
Colsed Gap[Inch(mm)]:0.95 (24)Depature Gap[Inch(mm)]:1.06 (27)
Maximum InitialContact Resistance(Ohm):0.150MaximumContact Rating(W):10
Maximum Switching Voltage(VDC/VAC):100Maximum Switching Current(A):0.5
UsgaeDoor,WindowCertificate UL  CUL CE

 Wired Door/Window Switch Alarm Sensor Magnetic Contact Switch

Dimension (mm):

 Product Features:

* Quick connect terminal block
* Quality adhesive tape and screws mount
* Breakaway flanges
* Easy installaion
* Switches or magnets available seperately
* Colors: White, Tan, Brown, Grey
* Without tabs on side (BS-2032OT)

Order Information:

Part NumberLoop TypeReed FormColsed Gap[Inch(mm)]Depature Gap[Inch(mm)]Maximum InitialContact Resistance(Ohm)

Maximum

Contact Rating

       (W)

Maximum SwitchingVoltage

(VDC/VAC)

Maximum

 Switching Current(A)

BS-2032(OT)ClosedN/O0.95 (24)1.06 (27)0.150101000.5
BS-2032A(OT)ClosedN/C1 (25) 0.1503300.2
