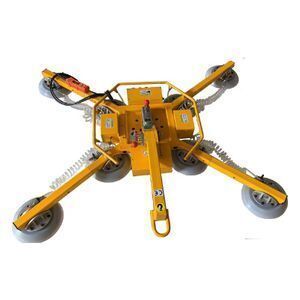

Hot Sale Electric Suction Cup Glass Vacuum Lifter

Supplier: Jinan Plk Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Sarah Tian
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Application:	Lifting Glass;	After-sales Service Provided:	Free spare parts;
Packaging Detail:	Packing by wooden box;	Selling Units:	Single item;
Video outgoing-inspection:	Provided;	Safety and Security:	Dual Circuit Vacuum System;
Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;	Showroom Location:	Canada,United Kingdom,United States,France,Brazil,Saudi Arabia,India,Spain,Argentina,Chile,Colombia,Bangladesh,South Africa,Malaysia,Australia;
Single package size:	1230X910X390 cm;	Product Name:	Glass Vacuum Lifter;
Package Preview:	;	Single gross weight:	150.0 KG;
Place of Origin:	Shandong China;	Warranty:	1 Year;
Drive motor/Lifting motor:	Powered;	Brand Name:	PLK LIFT;
Warranty of core components:	1 Year;	Rotation:	360°manual rotate;
Certification:	CE;	Tilting:	90° manual;
Marketing Type:	New Product 2020;	Load capacity:	400/600/800/1000KG;
Max loading:	600/800kg (customizable);	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Machinery Test Report:	Provided;	Extension Bar Length:	500 MM;
Dimension(LWH):	1230910390;	Vacuum source:	Oil-free Vacuum Pump;
Local Service Location:	United States,Italy,Philippines,Brazil,Indonesia,India,Mexico,Malaysia,Argentina,Chile,Colombia,Sri Lanka,Bangladesh,South Africa;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Condition:	New;

Cheap Price CE Certified 400kg Hangling Type Vacuum Glass Lift
PLK LIFT suction caps are specially design for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble.

Model		GL-SC-400	GL-SC-600	GL-SC-800	GL-SC-1000
Lifting Capacity	kg	400	600	800	1000
Cup Qty	/	4	6	8	10
Single Cup Size	mm	300	300	300	300
Single Cup Lifting Capacity	kg	100	100	100	100
Rotation	/	360°manual rotate
Tilting	/	90° manual
Volte	V	DC12
Charger	V	AC220/110
Weight	kg	70	90	100	110
Sucker Frame Size	mm	850750300	1800900300	17601460300	19001600300
Extension Bar Length	mm	500
Control System	/	Integrated Control Cabinet and Wired Remote Control

Features & Advantages:

1.Sealed cover for components protection,safe and reliable. Usually cooperated with bridge crane to use in glass deep processing and handling job, or with cantilever crane to use in glass curtain wall installation job .
2.Adjustable type, can be changed the position of the suction cup to absorb glass of different shapes and sizes (also can be customized according to the glass size)
3.Manually rotated 360° in the vertical side, and manually rotated 90° in the horizontal side, but taking and releasing by electric
4.Adopt American THOMAS vacuum pump and high quality maintenance-free battery, no need the air source or power supply during use.
5.Japan Panasonic digital display vacuum pressure switch , battery fuel gauge, clearly monitor the safty use.
6.With vacuum pressure auto supply system, during handling glass, ensure the whole vacuum system maintained at a relatively constant safety pressure value
7.Equipped with the power-cut but pressure-keeping device and alarm device. If power failure accidently,the pressure-keepping function can extend the handling time and make the use safer.
8.Equipped with 12V backup battery, can be replaced in time to ensure the progress of the project.

Offer OEM & ODM service,according to different materials size and weight.
Please inform us the materials you want to lift,as well as size and weight to get a proper proposal.
