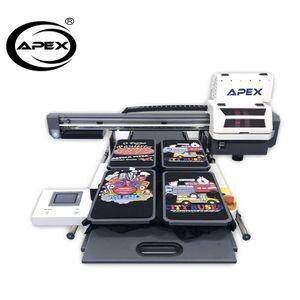

APEX UV Printer Double DX5 printer head APEX NDTG6090B t-shirt textile garment dtg printers

Product details
Usage:Cloths Printer,Cotton Tee Printer;Showroom Location:None;
Automatic Grade:Semi-automatic;Condition:New;
Ink Type:textile Ink;Ink:KKCCMMYY+ WWWWWWWW;
Certification:CE Certification;Plate Type:Flatbed Printer;
Printing size:60*90cm;Name:Digital Flatbed Direct to Garment T-shirt Printer;
Max Dpi:720*2880dpi 16pass;Print Dimension:60*90cm;
Port:Shenzhen;Supply Ability:150 Set/Sets per Month;
Color & Page:Multicolor;Product name:NDTG6090B;
Key Selling Points:Automatic;After-sales Service Provided:Online support,Free spare parts,Video technical support;
Voltage:110V/220V;Brand Name:N/A;
Printing Material:above 80% cotton (Recommend);Type:Digital Printer;
Payment Terms:L/C,T/T,Western Union,Paypal;Weight:146kg;
Applicable Industries:Garment Shops,Manufacturing Plant,Home Use,Printing Shops,Advertising Company;After Warranty Service:Online support;
Packaging Detail:Wooden Case;Warranty:1 Year;
Place of Origin:Guangdong China;Local Service Location:None;
Dimensions(L*W*H):141*176*85cm;

Double DX5 printer head APEX NDTG6090B t-shirt textile garment dtg printers

Product Description

NDTG6090B printer is made from high-end materials that have passed inspection. DTG6090Bis a durabledouble-platen ormultiple- platen garment printer, its maximum platform size is600*900mm. It produces thehighest quality images on many types of garments, especially 100% cotton andhigh-cotton blend t-shirts. Combined with Apex-jet PhotoPrint software, thisprinter isan easy-to-use and easy-to-maintain industrial garment printer.



Specification



 Model No. NDTG6090B
 Materials to Print Light color & dark color textile, above 80% cotton, etc
 Max. Print Format 23.62"*35.43"(60*90cm)
 Max. Print Gap 4-14cm
 Power Requirement 50/60HZ 220V(±10%)/50/60HZ 110V(±10%); 380W
 Power Requirement 50/60HZ   220V(±10%)<20A
 Temperature/Humidity 20 ~ 28 ℃/ 68-82℉  HR40-60%
 Print Head 2pcs Epson DX5 Print Head
 Print Resolution Max Dpi: 720*2880dpi  16pass
 RIP Software SAi PhotoPrint
 Print Quality True Photographic Quality
 Languages English/German/Italian/Spanish/French/Japanese.etc
 Operation System Windows 7 /Windows 8 /Windows10
 Ink Type Textile ink
 Ink Color KKCCMMYY+ WWWWWWWW
 Ink System CISS Built Inside With Ink Bottle
 Interface USB3.0
 Working Environment 20-28 degrees
 Machine Size 141*176*85cm
 Packing Size Wooden Case
 Media Feeding System Manual
Why APEX

Established in 2001, Microtec Technology Co.,Ltd is located in Dongguan. The factory occupies more than 25000 square meters and 320 employees.APEX develops, manufactures and markets the most economy and good performance solution in direct flatbed UV and DTG printers for many years. APEX is strongly backed by seasoned professionals with extensive experience in the digital printing industry. Our mission is to provide one-stop service, including full ranges of printing substances supply. APEX UV and DTG Printers are designed for industrial bulk production with high printing speed, which can print on almost any material. Widely used in promotion items (medals, photo frames, package printing, leather, customized gifts ), signage (home decoration), phone and pad case, t-shirt printing etc. Images on the object surface are dry fast and scratch resistance.



APEX is positively establishing distributor network all over the world to provide nearby technical support and printer maintenance. With experienced R & D Department, Molding Department and Injection Department, APEX keeps developing the state-of-the-art UV Printers & DTG Printers and printer trays to meet customers' needs.

Top Twelve Reasons for buying Apex:
1. 17+ years manufacturing experiences
2. ISO9001:2008 certified leading manufacturer
3. Owns more than 25000 square meters & 320 employees
4. CE and FDA & US Proposition 65 SGS approved
5. Strong technical supports on OEM & ODM services
6. Door to Door installation & maintenance
7. Constant R & D
8. Double Quality Control
9. International shows
10. 24-7 on line
11. Life time maintenance.
12. Worldwide agents





Certifications

FAQ

1. Q: What is the purpose of a heat press?
A heat press is the machine that presses a transfer onto an imprintable substrate. Using high temperatures and heavy pressures for a certain amount of time, the transfer is permanently embedded into the product.
Heat presses are recommended for professional and satisfying results simply because standard laminating devices and home hand irons can not get even near the temperatures required for a reliable transfer. Standard transfers require anywhere from 180 to 220 degrees demand serious force in pressing. These temperatures and pressures are simply not possible with other heated devices.

2. Q: How to choose the right heat press?
As with any equipment, there are many factors to take into consideration when choosing a heat press machine.
The most important thing to look for in a heat press is its ability to provide consistently even temperatures across the platen. This will prevent cold spots from developing and ensure consistent application of heat transfer materials. Proper application temperature is also critical in producing quality garments, making accurate temperature controls an essential feature.

3. Q: What items can be heat pressed?
The following are some of the far more common items often heat pressed. The list by no means ends here.
T-Shirts, Caps, Ceramic Plates, Ceramic Tiles, Mugs, Mouse Pads, Paper Memo Cubes, Tote Bags, Jigsaw Puzzles, Lettering, Numbers, Rhinestones/Crystals, Wood / Metals Other Misc. Fabrics & Materials.

4.Q: What is a transfer made up of ?
A transfer is made up of a carrier paper and inks. When heated to a certain temperature and pressed with a significant amount of pressure for a certain amount of time, the transfer inks are passed over to the imprintable material. Some inks are adhered and embedded to the surface of the material, while others (namely, sublimation) permeate the coating of the material.

5.Q: What are the different uses for a heat press?
The variety of uses for a heat press include the application of various types of heat applied materials (listed below), curing of Direct to Garment (DTG) printing, smoothing of embroidery after sewing, and dye sublimation.

6.Q: What will be need if doing heat transfer?
You will need a heat transfer machine(kinds of heat press for choices, if transfer t-shirt, you will need a flat heat press, if transfer cap, you would need a cap press or our combo press etc.) printer, CISS, ink, transfer paper.

8.Q: What kind of ink do I need?
This depends on the material you want doing heat transfer. Ceramic products like tile or mug,you have to use sublimation ink, but if like polyester T-shirt, mouse pad, you can use dye or pigment ink.

9. Q: What kind of paper do I need?
For sublimation there are different papers developed for different substrates.Mouse pad, bags, fabrics are best transferred using our special transfer paper. When transferring items such as ceramics,glass, you can use normal inkjet paper.

10.Q: What can I decorate using a heat press?
The variety of uses for a heat press include the application of various types of heat applied materials (listed below), curing of Direct to Garment (DTG) printing, smoothing of embroidery after sewing, and dye sublimation.
The list of items (or substrates) that can be imprinted using a heat press or mug heat press is constantly growing. Typically, apparel such as T-shirts, golf shirts, and sweatshirts and pants come to mind when one thinks of heat pressing. But with the ever-evolving heat press industry items like caps, nylon jackets and bags, canvas bags, spandex and neoprene garments, and even coffee mugs can be customized using heat applied material. Below is an extensive list of heat press ideas.

Packaging & Shipping

Before shipment, the machine is cleaned fully, daubed by anti-rust oil carefully, covered by plastic bag, wrapped by the strethc film, and at last firmed into the wooden case.



Packaging: packed with foam perfectly, wrapped by stretch film, and put into strong carton box.
Payment Term: Usually, 30% T/T in advance, and balance before delivery; Can be discussed.
Delivery Term: EX-WORK, FOB shenzhen, CIF, etc.
Lead Time: Around 20days after order confirmed.
