Type: | Heat Press Machine; | Name: | roll to roll heat press; |
Maximum Temp: | 392℉(200℃); | Wooden Box Size: | 1830*1190*1630mm/2480*1440*1830mm; |
Local Service Location: | None; | Voltage: | 220v; |
Applicable Industries: | Garment Shops,Manufacturing Plant,Home Use,Printing Shops,Advertising Company; | Plate Type: | heat press; |
Weight: | 450kg; | Packaging Detail: | Machine Size 1630*976*1315mm 2300*1272*1505mm Packing Size 1830*1190*1630mm 2480*1440*1830mm; |
Warranty: | 1 Year; | Supply Ability: | 10000 Unit/Units per Month; |
Model Number: | MTX-44,MTX-44/MTX-68; | Machine Type: | roll to roll calender; |
Condition: | New; | After Warranty Service: | Online support; |
Payment Terms: | L/C,T/T,Western Union,paypal; | Color & Page: | Multicolor; |
Temperature Accuracy: | ±0.5%; | Dimensions(L*W*H): | 1630*976*1315mm; |
Time Range: | 0-999 Sec.; | After-sales Service Provided: | Online support,Free spare parts,Video technical support; |
Usage: | Cloths Printer,Label Printer,sublimation transfer; | Platen Size: | 44"(1200mm)/68"(1730mm); |
Place of Origin: | Guangdong China; | Brand Name: | Microtec; |
Port: | shenzhen; | Key Selling Points: | Automatic; |
Automatic Grade: | Automatic; | Controller: | Digital Time & Temp. Control; |
Showroom Location: | None; | Certification: | CE; |
Frequency: | 50HZ/ 60HZ; |
Related Products
MP-99 Mug Heat Press | LMP-10C 4 in 1 Mug Press | DCH-800 8 in 1 Combo Heat Press | UHP-D Dual plate Heat Press |
PP-10A Pen Heat Press | PP-10C Cap Heat Press | BP-10 Sports Ball Heat Press | LZP-40 Lanyard Heat Press |
UHP T-shirt Heat Press | Senko-20A Auto Open Heat Press | Senko 30 Large Heat Press | STM Large Format Heat Press |

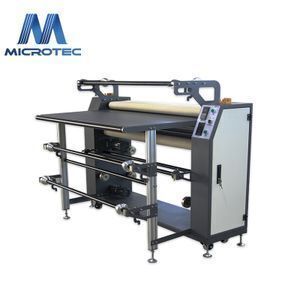

ASTM Pneumatic Heat Press | APHD-40 Pneumatic Heat Press | Demon 45 Pneumatic Heat Press | MTX-44/68 Roll to Roll Heat Press |
Model No. | MTX-44 | MTX-68 |
Max. working width | 44"(1200mm) | 68"(1730mm) |
Dia of drum | Φ7.8"(200mm) | Φ9.8"(250mm) |
Max. temperature | 392℉(200℃) | 392℉(200℃) |
Heating elements | 1 | 1 |
Heating media | Thermal Oil | |
Controller | Digital temperature & time control | |
Max. Feeding Speed | 0-1100mm/min | 0-1200mm/min |
Number of mandrels included | 6 mandrels, 3 feed, 3 take-up | |
Max. material roll dimension | 350mm | |
Max. roll weight | 45kg | |
Voltage | 220VAC 50HZ Single Phase | 220VAC 50HZ Three Phase |
Current | 27A | 30A |
Power | 6KW | 11KW |
Noise Level | 30DB | 30DB |
Net/Gross Weight | 450kg/ | / |
Machine Size | 1630*976*1315mm | 2300*1272*1505mm |
Packing Size | 1830*1190*1630mm | 2480*1440*1830mm |
TEXTILES, FURNISHING, FASHION-SPORTSWEAR-PROMOTIONAL, FILMS
ROLL to ROLL: calenders for printing continuous and reel-wound materials
PIECE to ROLL: special calenders capable of operation in both modes (material in cut pieces and/or in rolls)
l 18+ years manufacturing experiences
l ISO9001:2008 certified leading manufacturer
l Owns more than 25000 square meters & 320 employees
l CE and FDA & US Proposition 65 SGS approved
l Strong technical supports on OEM & ODM services
l Strict QC control guarantee product quality
l One-stop service for all sublimation products
l Extended promotion & market activities on overseas exhibitions
l Alibaba & Made-in-China 16+ years gold supplier
l Agents and distributors spanning over 60 countries
1. 18+ years' experience: Microtec specializes in sublimation and printing field for more than 16 years.With the stable quality and serious business attitude, we already have customers/distributors over 30 countries.
2. OEM/ODM service: We have made OEM/ODM machines for many famous US, Germany and UK brand machines.
3. Quick reply: Reply the consultation and issues in 24 working hours.
4. Professional sales team.
5. One-stop service: one-stop services for sublimation printer, heat transfer machine, sublimation paper and sublimation ink, sublimation blanks, etc.
6. High quality & moderate price: Each machine will be tested before delivery to keep the stable quality.
7. Small MOQ support: most of our products are without MOQ request to support.
8. Timely delivery.
9. Free sample: Free samples and free sample printing service are available.
10. Trainning Service: We offer 3-5 days free training in our factory, including how to use the software, how to operate the machine, how to keep daily maintenance, and useful printing technologies, etc.
11. Installation service: On-line support for installation and operation. You can discuss operation and maintenance with our technician online support service by Skype, Wechat etc. Remote control and on-site support will be provided upon request.
12. After-Sales Service Guarantee.
After-Sales Service Guarantee, Microte takes responsible for Each Products from us.
1. One Year Warranty
The problems, caused by machine itself, and there is no damage from a third party, must be guaranteed; Free spare parts will be provided, technical support, guidance video, instruction, etc all available.
2. Free online consultation
The technicians or sales will keep online. No matter what kind of technical questions that you may have, you would get a clear answer from our professional teams.
3. Free onsite guidance
If you are able to help us get the visa and also would like to bear the costs involved like flight tickets, food, accommodation, etc, we can send our most excellent technicians to your office, and they will give you a full guidance.
Before shippment, each machine will be tested and cleaned, packed with foam perfectly, wrapped by stretch film, and put into strong carton box.The carton box has passed our safty test.
Packaging: packed with foam perfectly, wrapped by stretch film, and put into strong carton box.
Payment Term: Usually, 30% T/T in advance, and balance before delivery; Can be discussed.
Delivery Term: EX-WORK, FOB shenzhen, CIF, etc
Lead Time: Around 20days after order confirmed
1. Q: What is the purpose of a heat press?
A heat press is the machine that presses a transfer onto an imprintable substrate. Using high temperatures and heavy pressures for a certain amount of time, the transfer is permanently embedded into the product.
Heat presses are recommended for professional and satisfying results simply because standard laminating devices and home hand irons can not get even near the temperatures required for a reliable transfer. Standard transfers require anywhere from 180 to 220 degrees demand serious force in pressing. These temperatures and pressures are simply not possible with other heated devices.
2. Q: How to choose the right heat press?
As with any equipment, there are many factors to take into consideration when choosing a heat press machine.
The most important thing to look for in a heat press is its ability to provide consistently even temperatures across the platen. This will prevent cold spots from developing and ensure consistent application of heat transfer materials. Proper application temperature is also critical in producing quality garments, making accurate temperature controls an essential feature.
3. Q: What items can be heat pressed?
The following are some of the far more common items often heat pressed. The list by no means ends here.
T-Shirts, Caps, Ceramic Plates, Ceramic Tiles, Mugs, Mouse Pads, Paper Memo Cubes, Tote Bags, Jigsaw Puzzles, Lettering, Numbers, Rhinestones/Crystals, Wood / Metals Other Misc. Fabrics & Materials.
4.Q: What is a transfer made up of ?
A transfer is made up of a carrier paper and inks. When heated to a certain temperature and pressed with a significant amount of pressure for a certain amount of time, the transfer inks are passed over to the imprintable material. Some inks are adhered and embedded to the surface of the material, while others (namely, sublimation) permeate the coating of the material.
5.Q: What are the different uses for a heat press?
The variety of uses for a heat press include the application of various types of heat applied materials (listed below), curing of Direct to Garment (DTG) printing, smoothing of embroidery after sewing, and dye sublimation.
6.Q: What will be need if doing heat transfer?
You will need a heat transfer machine(kinds of heat press for choices, if transfer t-shirt, you will need a flat heat press, if transfer cap, you would need a cap press or our combo press etc.) printer, CISS, ink, transfer paper.
8.Q: What kind of ink do I need?
This depends on the material you want doing heat transfer.Ceramic products like tile or mug,you have to use sublimation ink,but if like polyester T-shirt,mouse pad,you can use dye or pigment ink.
9. Q: What kind of paper do I need?
For sublimation there are different papers developed for different substrates.Mouse pad,bags,fabrics are best transferred using our special transfer paper.When transferring items such as ceramics,glass,you can use normal inkjet paper.
10.Q: What can I decorate using a heat press?
The variety of uses for a heat press include the application of various types of heat applied materials (listed below), curing of Direct to Garment (DTG) printing, smoothing of embroidery after sewing, and dye sublimation.
The list of items (or substrates) that can be imprinted using a heat press or mug heat press is constantly growing. Typically, apparel such as T-shirts, golf shirts, and sweatshirts and pants come to mind when one thinks of heat pressing. But with the ever-evolving heat press industry items like caps, nylon jackets and bags, canvas bags, spandex and neoprene garments, and even coffee mugs can be customized using heat applied material. Below is an extensive list of heat press ideas.
