Payment Terms: | L/C,Western Union,D/P,D/A,T/T; | Packaging Detail: | safe packaging; |
Applicable Industries: | Farms; | Port: | lianyungang; |
Core Components: | Gearbox,Bearing,Engine,Pump; | Condition: | Used; |
Video outgoing-inspection: | Provided; | Used for: | Farmland Harvester; |
Supply Ability: | 100 Piece/Pieces per Week; | Brand Name: | kubota; |
Place of Origin: | Jiangsu China; | Dimension(L*W*H): | 4950*2440*2800; |
Warranty of core components: | 500 hours; | Local Service Location: | None; |
Marketing Type: | Ordinary Product; | Color: | red; |

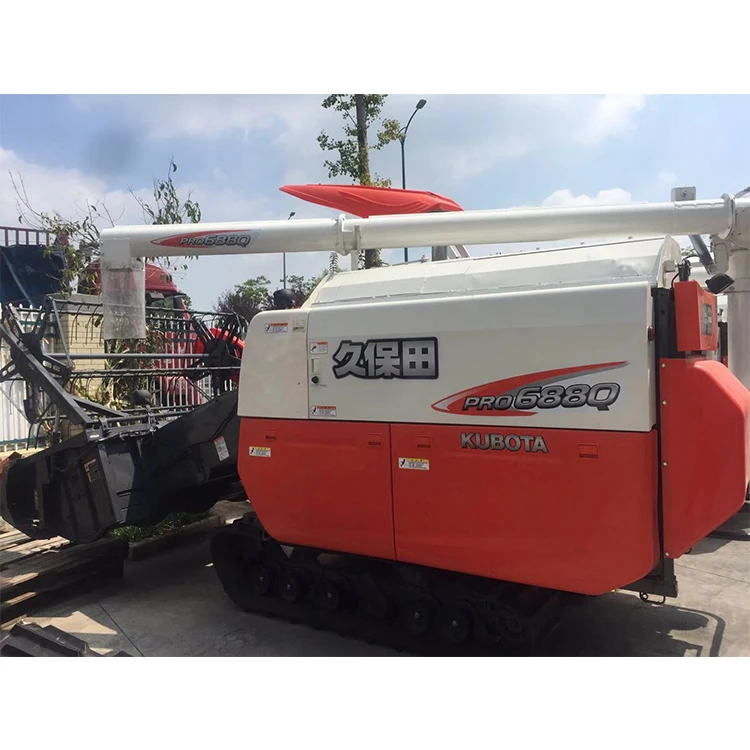

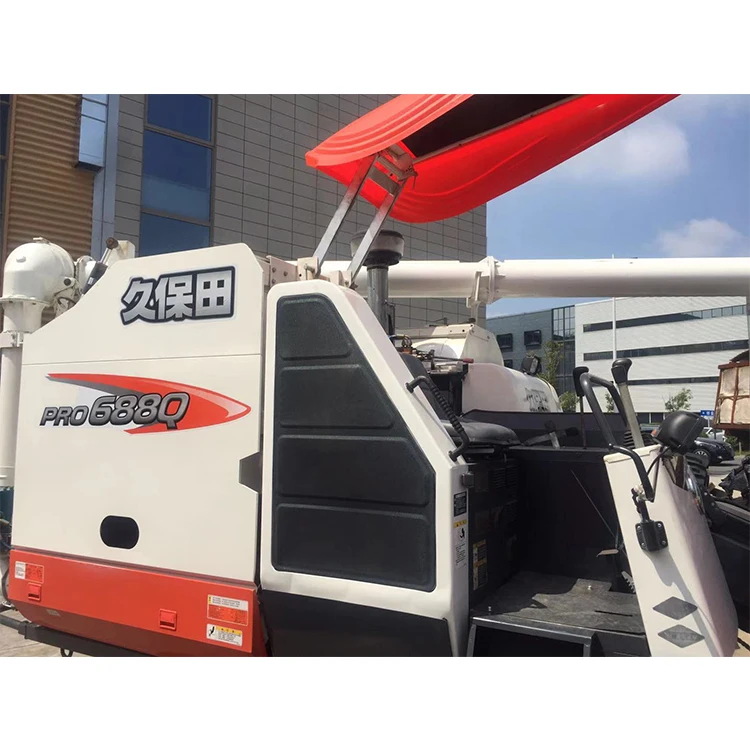

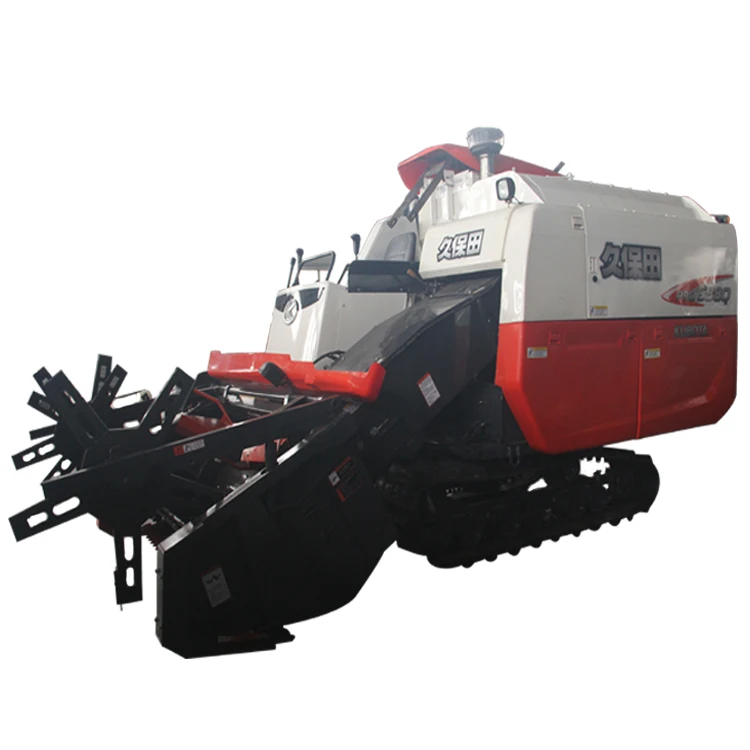

Product name: | kubota 4LZ-2.5(PRO688Q) Second-hand combine harvester; | Key Selling Points: | High Productivity; |
Machine Type: | Combine Harvester; | Working Width(mm): | 2000; |
Weight: | 2790kg; | Type: | Combine Harvester; |
After Warranty Service: | No service; | Application: | Rice,Corn,Wheat; |
Showroom Location: | None; | Usage: | Grain Harvester,Corn Harvester; |
Machinery Test Report: | Provided; | Certificate: | -; |
Warranty: | Unavailable; | Drive Type: | Gear Drive; |
Project | Specification | |||
Product number | 4LZ-2.5(PRO688Q) | |||
Classification | Big tank | |||
Dimensions | Length (mm) (transport status / working status) | 4950/5010 | ||
Width (mm) (transport status / working status) | 2440/2650 | |||
Height (mm) (transport status / working status) | 2800/2815 | |||
Structure quality (kg) / quality of use (kg) | 2790/2905 | |||
Matching engine | Model (China second stage) | V2403-M-DI-T-ES04 | ||
Structure type |
Vertical water cooled 4 - cylinder turbocharged diesel engine |
|||
Total Displacement (L) | 2.434 | |||
Calibration power (kW) | 49.2 | |||
Calibration speed (r / min) | 2700 | |||
Fuel | High quality diesel (0 #) | |||
Fuel tank capacity (L) | 60 | |||
Walking part | Crawler | Grounding length(mm) | 1680 | |
Gauge(mm) | 1150 | |||
Specifications [pitch (mm) × section (section) × width (mm)] |
90×51×450 | |||
Ground pressure(kPa) | 18.1 | |||
Minimum ground clearance (mm) | 275 | |||
Gearbox type |
Mechanical speed change + hydraulic stepless speed change (HST) |
|||
Variable speed series | Forward stepless·Back stealth | |||
Vice shift of the three gears | ||||

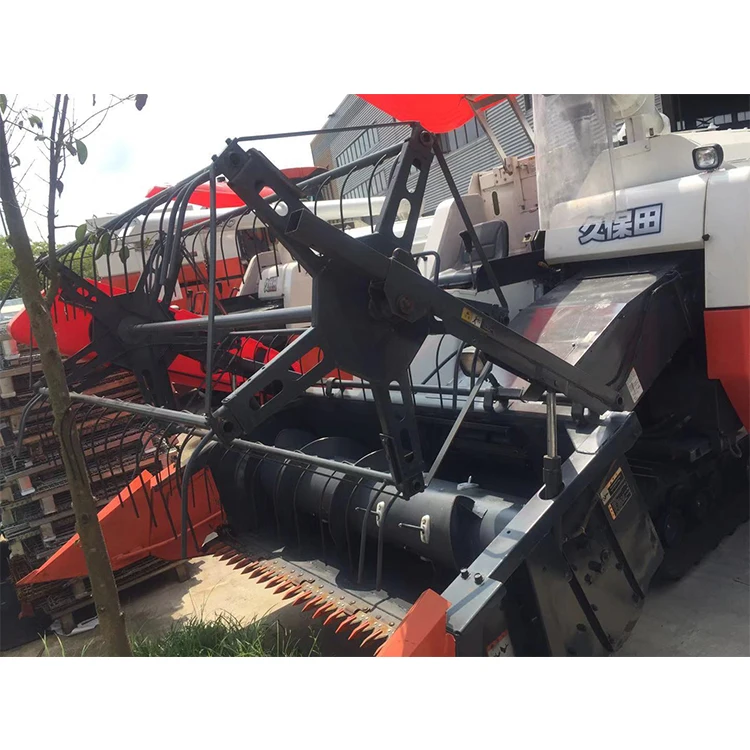

Cutting table | Cutting table width (mm) | 2000 | ||
Minimum cutting height (mm) | 40 (cutter tip) | |||
Lodging adaptability |
Cutting: below 85 degrees· Reverse cutting: below 70 degrees |
|||
Threshing part | Threshing method | Sprue axial flow | ||
Threshing drum | Size(mm)(outer diameter×length) | Φ620×1790 | ||
Speed(r/min) | 560 | |||
Grain processing department |
Capacity (L) | 1000 | ||
Collecting box | Grain intake (unit) | - | ||
Unloading grain | Dump truck lift range (degrees) | 77 manual operation /80 - hydraulic operation | ||
Unloading grain unloading height range (mm) (working state) |
650 ~ 2000 (unloading grain manual type) | |||
540 ~ 2240 (unloading cylinder hydraulic type) | ||||
Unloading mouth out of the distance range (mm) (working state) |
950 to 1600 (manual unloading tube) | |||
990 ~ 1840 (unloading cylinder hydraulic type) | ||||
Adapt to crops | Rice, wheat | |||
Operating hours productivity (hm² / h) | 0.2 to 0.4 (upright dry crop) |
