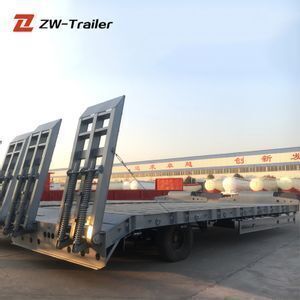

Factory Direct Sale Tri axle 60T 80T Hydraulic Ramp Low bed Semi Low Loader Lowbed Truck Trailer

Product details
Color:Customer Optional;Suspension:Heavy Duty Mechanical Suspension orAir Suspension;
Brand Name:ZW;Landing Gear:Standard 28Ton;
OE NO.:3 axle lowbed semi trailer;Product name:3 axle lowbed semi trailer;
Main Beam:Height:500mm 20/20/18mm;King pin:2"(50mm)or3.5"(90mm);
Brake System:Dual Line Braking System;Material:Steel;
Axle:13/16 Ton Fuwa/BPW;Package Preview:;
Supply Ability:300 Set/Sets per Month;Use:Truck Trailer;
Port:Any port in China;Payment Terms:L/C,Western Union,T/T,MoneyGram;
Max Payload:60T;Tire:11.00R20 /12R20 /315/80R22.5;
Type:Semi-Trailer;Place of Origin:Shandong China;
Packaging Detail:Factory direct sale tri-axle 60T low bed semi trailer with hydraulic ramp for transporting heavy duty equipment is of nude packing.;Size:13x3x1.7m;
Certification:ce;Leaf Spring:90(W)mm*13(Thickness)mm*10(Layer);

Factory Direct Sale Tri axle 60T 80T Hydraulic Ramp Low bed Semi Low Loader Lowbed Truck Trailer

Product Description

Factory direct sale tri-axle 60T low bed semi trailer with hydraulic ramp for transporting heavy duty equipment is designed for transporting heavy duty equipment,especially excavtor.We can design and make lowboy trailers according to client's needs.Axles range from two to eight,loading capacity range from 40T to 150T.For other heavy duty equipment more than 150T,we have axls trailer or modular trailer.Let we know your needs,we will provide you want you need.

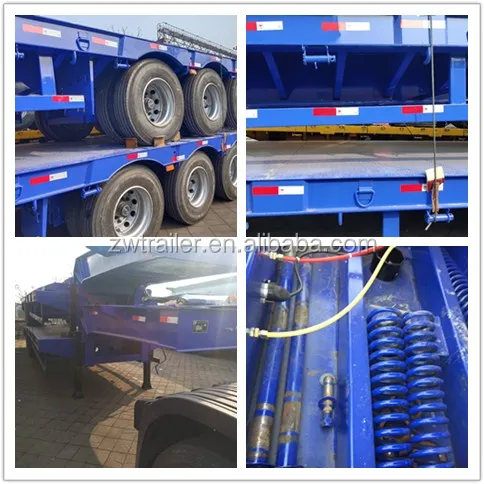

Detailes of our Factory direct sale tri-axle 60T low bed semi trailer with hydraulic ramp for transporting heavy duty equipment

Specifications

Trailer Model

3 Axles 80T Low bed Trailer

Dimension(LxWxH)(mm)

13000 x 3000 x 1650mm

Curb Weight(KGS)

9000

Loading Weight( KGS)

80000

Total weight(KGS)

89000

Axle Brand

13TON Axle  FUWA brand

Axle Number

3

Wheelbase(mm)

6010*1310*1310

Suspension system

Mechanical suspension

Steel Spring

10/10/10 leaf spring suspension

Frame

The height of the beam is 500mm, upper plate is 20mm, down plate is 20mm, middle plate is double 10mm

Platform plate

4mm Diamond Plate

Tire type and quantity

12R22.5 12units

Traction Pin

50mm or 90mm FUWA brand

Spare Wheel Bracket

2 pieces

Tool Box

1 Unit

Landing Gear

Standard 28T

Brake system

Dual Line braking system,No ABS

Brake air chamber

6 big air chambers

Ladder(ramp)

Mechanical ladder(ramp)





Electrical system



24V,7 Pole plug

Tail lamp with turn signal, brake light & reflector, side lamp etc

One set 6-core standard Cable

Side Guard

According to customer’s requirement

Painting

Color by customer’s requirement

Packing

Polish with wax before shipping

Delivery way

Transfer to China port, and carry by bulk or ro-ro shipment, the freight cost depends on the volume

Company Information

Shandong Zhuowei International Trading Co., Ltd was established in 2000 specialized in manufacturing various kings of trailers, such as container trailers,construction equipment transporting trailers, tractor trucks,special purpose trailers,spare parts etc. With advanced automatic equipment and excellent quality control system.Of good quality and reputation,we have been  ISO,CCC,CE and B&V certificates.We have our own factory established in 2000 which is a professional manufacturer with 500 employees and 48,000,000 annual sales volume. Our products has been popular in South Asia, Middle East, Africa and South America.Warmly invite you to visit our factory!



Our Services

1.Our company promise a one-year warranty period, from the date clients receive our products.Under normal use if there is damage of the accessories, we will provide our customers  new accessories for free.

2.We provide life time maintance and life time technical support of our products.After the one year warranty period,we only charge cost of the parts that need to change,no other extra fee.

3.We provide 365 days×24 hours service,our salesperson is always on line,waiting for your inquiry.



Clients visiting

 Warmly welcome clients from all over the world come and visit our factory!

FAQ

1.Does your company has your own factory?
Yes,we have a factory ourself,which is in this business for few years in China.Our factory is very famous where is manufacturing various trailers in Shan Dong,China.

2.Can you satisfy my special requirement?
Definitely!We can make the trailers based on your requirement.

3.What's your minimum quality?
1 set

4.How to trust us?
The good faith management is our philosophy,and you are welcome to visit our company at any time.

5.What's your payment term?
We accpet both T/T and L/C
T/T:30% deposit by T/T,70% balance should be paid before shipment.
L/C:100% irrevocable Credit of Letter.
