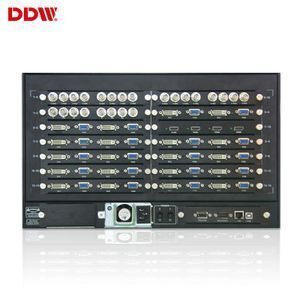

Original quality economic lcd video wall splicing processor Full HD hdmi 4K video wall controller 3x3 for security room

Supplier: Shenzhen DDW Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Steven Cheung
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product Name:	video wall controller;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,A/O;
Input output signal sources:	HDMI,DVI,VGA,AV,YPBPR,IP;	Frame material:	Aluminum brushed;
output resolution:	1920x1080;	OEM:	yes;
Life:	more than 6000hrs;	Brand Name:	DDW;
Port:	Shenzhen,Hongkong;	Place of Origin:	Guangdong China;
Max PIP per screen:	1,4,16,customization;	Packaging Detail:	quality carton with full wood box packing;
Supply Ability:	3000 Set/Sets per Month;	Warranty:	1 Year;
roam,zoom,PIP:	Support;	Model Number:	DDW-VPH0303;
Certificate:	led display video wall splitter processor;

Original quality economic lcd video wall splicing processor Full HD hdmi 4K video wall controller 3x3 for security room

Product Description

PRODUCT PECIFICATION

Parameters
Professional video wall controller Technical Specifications
Model series	With CBD	No CBD
Function description	4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image	16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional)	HDMI/DVI/VGA/AV/YPbPr
Input resolution	1024x768~1080p,commonly used resolutions
Output signal format	DVI/VGA/AV/YPbPr/HDMI(DVI-HDMI converter)
Output resolution	Up to 1920*1200/60HZ
System control software	Special control software
Power Supply	Redundant power supply 110-220VAC, 50/60Hz
Consumption	12W/channel
Working temperature	-20°C——60°C
Working Humidity	5-95%
Case specification	4U/6U/10U/15U standard rackmount chassis
Serial Control Interface	RS-232,9-pin female, Type-D
Baud Rate	115200
Pin configuration	2=TX,3=RX,5=GND
Ethernet control interface	RJ-45 female, TCP/IP
Ethernet control speed	Auto 10M or 100M,Full-duplex or half-duplex
Working time	365724hrs
Technical specification of input/output connectors
VGA/RGB input	Input: 15pin HD D-Sub, female
	Sync mode: HV independent sync
	Color Depth: 32bit/pixel
	Resolution: 640480/60HZ—19201200/60HZ
	Input impedance :75Ω
Video input	Input connector: BNC
	Detecting: full-format auto detecting
	Input impedance :75Ω
VGA or DVI output	Resolution:1024768/60HZ-19201200/60HZ
	Color depth: 32bit/pixel
	Output impedance:75Ω
Physical properties of input/output connectors
Signals	Connectors	Type
Composite VIDEO input	BNC	female
VGA input	15 pin HD D-Sub	female
VGA output	15 pin HD D-Sub	female
DVI output	24+5 or 24+1 standard	female
AUX RS-232	9-pin D-Sub	female
Main RS-232	9-pin D-Sub	female
Professional video wall controller can be widely used for: monitoring, directing, scheduling system, public security, fire, military, weather, rail, and aviation monitoring system, video conferencing, query systems.
