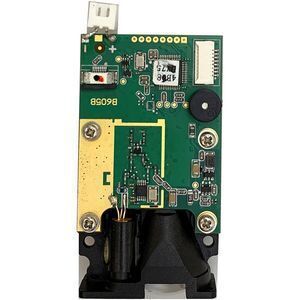

High Precision Usb Laser Distance Sensor 100m Laser Distance Meter Rangefinder Module

Product details
Single package size:20X20X10 cm;Selling Units:Single item;
Meter Type:Laser Distance Meters;Weight:about 10g/20g;

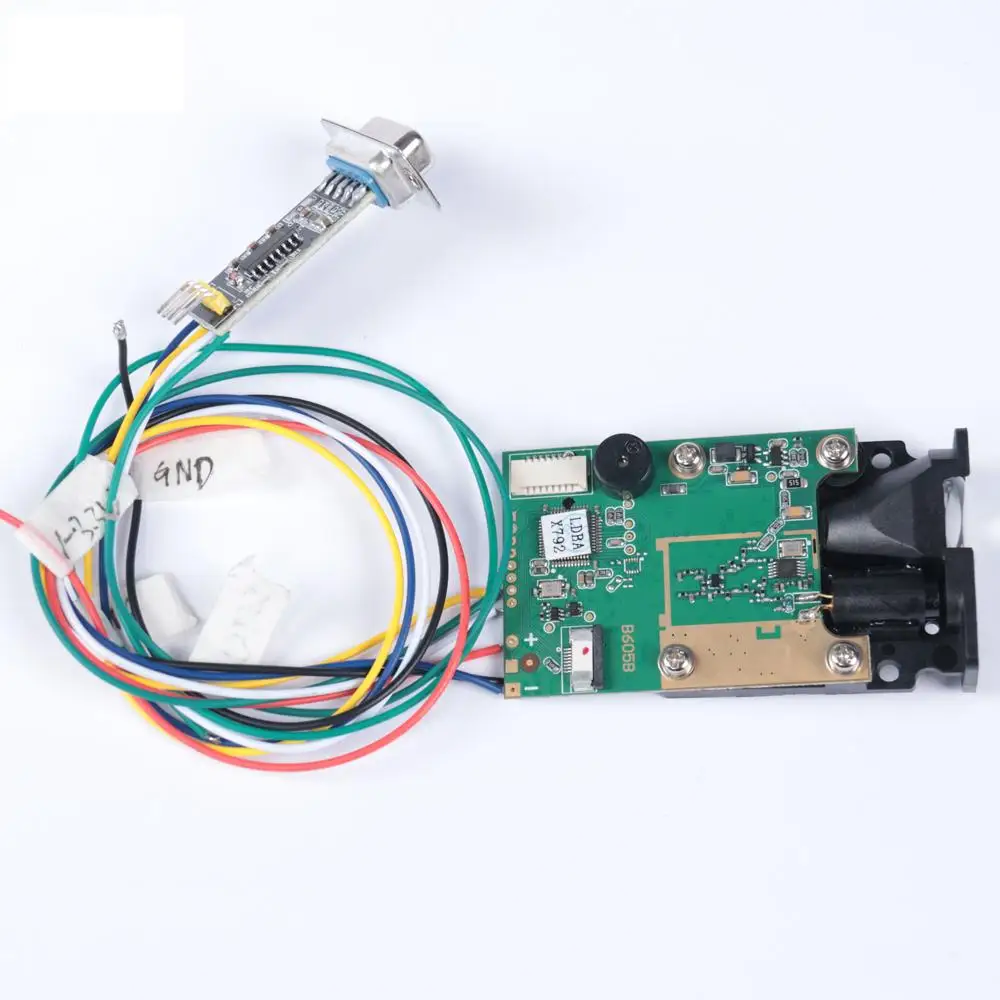

Certification:Intertek;Serial port:RS232;
Size:72*40*18mm (with LCD);Packaging Detail:16pcs/plate, 10 plates/carton The packing box can be customized when the order is big, or we can use neutral packing like the following.;
Operating Temperature:0-40 ℃ (32-104 ℉ );Single gross weight:0.5 KG;
Wave length:635 nm;Customized support:OEM,ODM;
Storage Temperature:-25~60 ℃ (-13~140 ℉);Ranging distance:40m,60m,80m,100m,120m,150m;
Grade:Industrial;Model Number:KJ-100 Sensor;
Warranty:12 Months,1 Year;Voltage:DC2.5~3V;
Place of Origin:Chongqing China;
Product Description

Products Description

Product Model:

DRM70100XJ-2

Accuracy:

±1mm

Measuring Unit:

meter/inch/feet

Measuring Range (without Reflection)

0.03-100m

Measuring Time:

0.3~3 seconds

Laser Class:

Class II

Laser Type:

635nm, <1mW

Size:

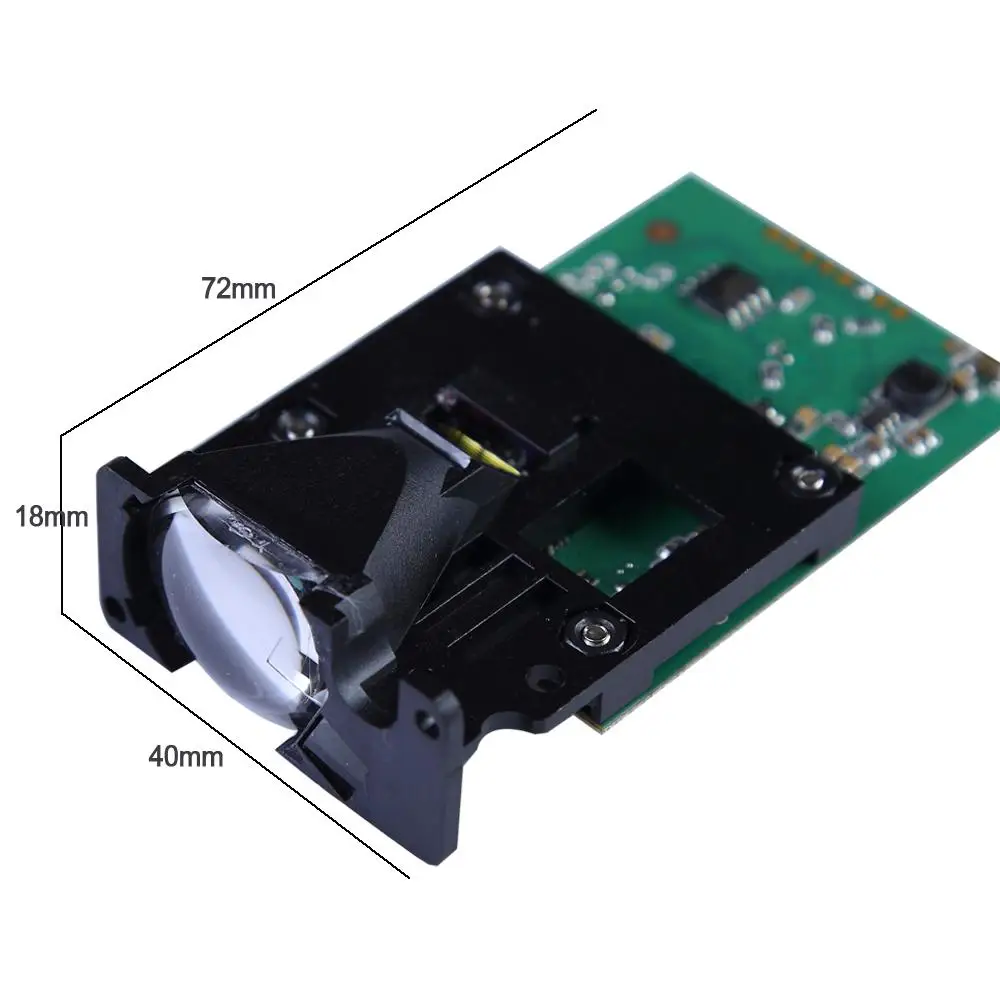

72*40*18mm (with LCD)

Weight:

About 10g/20g

Voltage :

DC2.5~3V

Operating Temperature:

0-40 ℃ (32-104 ℉ )

Storage Temperature:

-25~60 ℃  (-13~140 ℉)



   Note:

  1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have a bigger amount of error:  ±3 mm+40PPM.

  2. Under strong light or bad diffuse reflectance of the target, please use a reflection board

  3. Operating temperature -10 ℃~50 ℃, can be customized.





Why Us

 Why Us

Cooperated Organization
Global Partners
Related Goods



+

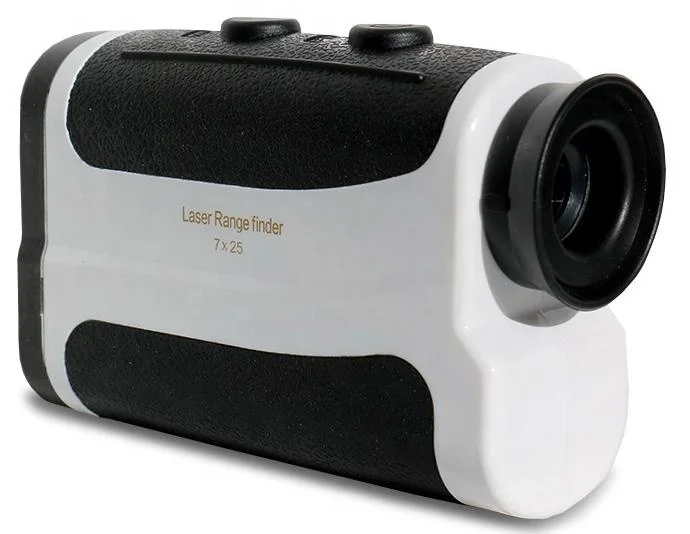

Hot Sale 40M Laser Distance Meter Module With RS232 3000M Laser Rangefinder Module With RS232 Hot Sale 1200M Golf & Hunting Laser Rangefinder
