Oem New Model Laser Distance Meter Sensor 100m Distance Measuring Equipment 635nm, <1mw Class II DC2.5~3V DRJ70100XJ-1 CN;CHO

Product details
Model Number:KJ-100 Sensor;Opera Temperature:0-40 ℃ (32-104 ℉ );
Serial port:RS232, 485 (can be added, price is another);Ranging distance:100m;
Laser Class:Class II;Grade:Industrial;
Single package size:20X20X10 cm;Warranty:12 Months,1 Year;
Weight:about 10g/20g;Accuracy:±1 mm;
Certification:Intertek;Meter Type:Laser Distance Meters;
Single gross weight:0.5 KG;Selling Units:Single item;
Storage Temperature:-25~60 ℃ (-13~140 ℉);Voltage:DC2.5~3V;
Laser Type:635nm, <1mW;Customized support:OEM,ODM;
Size:72*40*18mm (without LCD);Packaging Detail:16pcs/plate, 10 plates/carton. Flexible packaging: Copy paper, Capacitive paper, Tray, Blister packaging; Rigid packaging: Conventional carton, Metal box, Toolbox; Special packaging: Packed as customer demands.;
Place of Origin:Chongqing China;
Products Description

Products Description

Design:

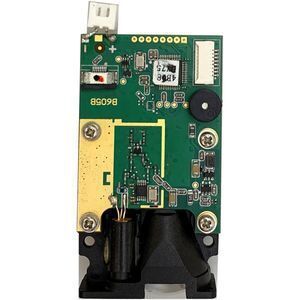

Module& Shell:

Product Specification

 Products Specification



Product Model:

DRM70100XJ-1

Accuracy:

±1 mm

Measuring Unit:

meter/inch/feet

Measuring Range (without Reflection)

0.03-100m

Measuring Time:

0.3~3 seconds

Laser Class:

Class II

Laser Type:

635nm, <1mW

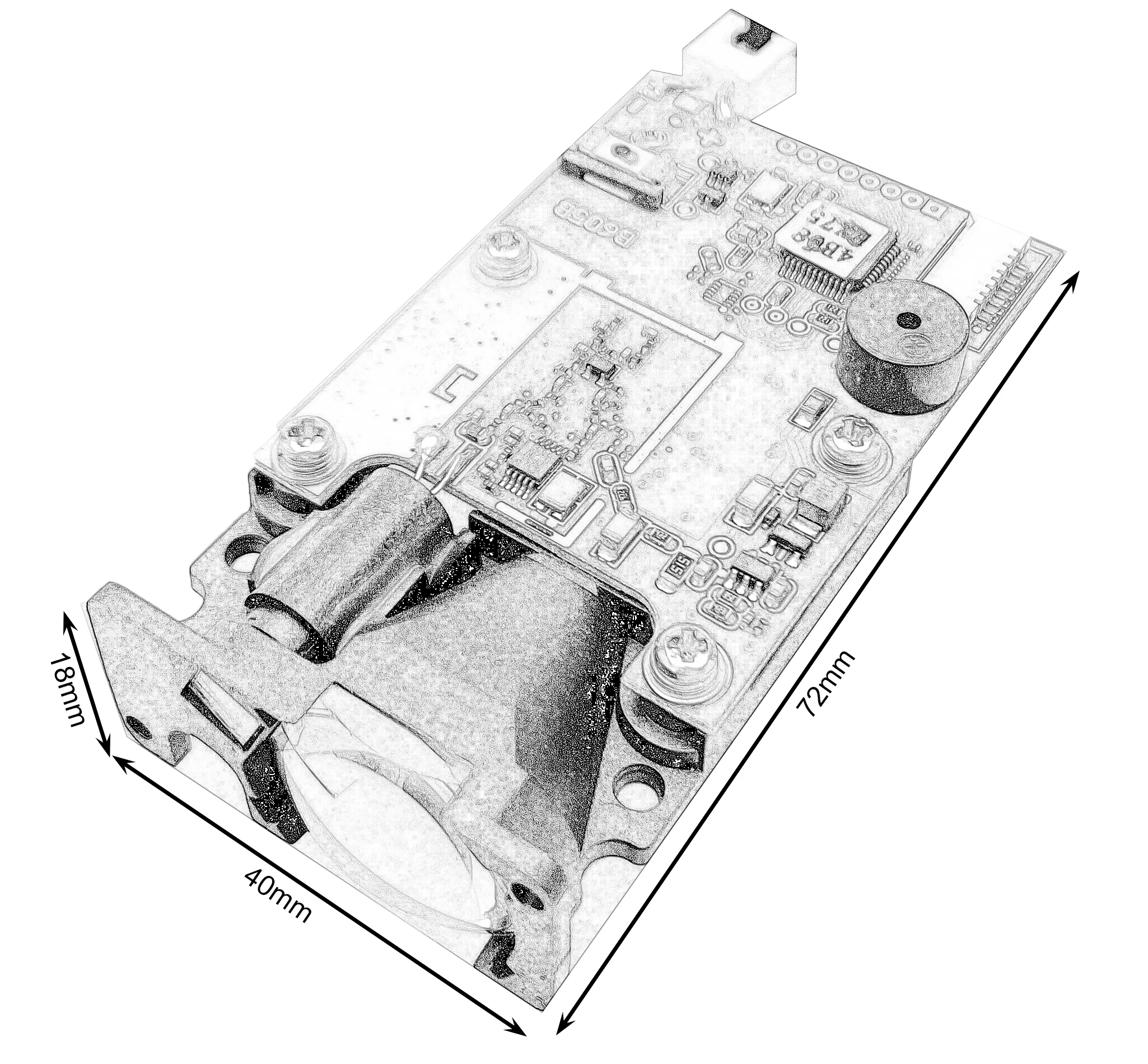

Size:

72*40*18mm (without LCD)

Weight:

About 10g

Voltage :

DC2.5~3V

Operating Temperature:

0-40 ℃ (32-104 ℉ )

Storage Temperature:

-25~60 ℃  (-13~140 ℉)

 Note:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have a bigger amount of error:  ±3 mm+40PPM.

2. Under strong light or bad diffuse reflectance of the target, please use a reflection board.

3. Operating temperature -10 ℃~50 ℃, can be customized.

Products Integrated

 Products Integrated

Power Supply

       M703A Working voltage range is DC.2.0V~3.3VRecommended use3.3V or 3.0VDC power supply, normal measurement of current in100mA @ 3.3V,In order to ensure the stability of the module, the power transmission capacity needs.300mAAnd above.

       Schematic diagram of the power supply connection It is shown that P3.VINFor the power input pin, P1.GND For the power supply.

Pin Layout

Table Pin Definition

Serial NO. Name Nature Functional description
1 GND Power supply Input, input power, communication ground
2 +3V5 Power output Internal output voltage3.5VTest use
3 VIN Power input Input power,DC +2.0V~+3.3V,300mA+
4 Retain
5 Retain
6 Retain
7 PWR_ON control Module boot control, high power on, low-level shutdown.
8 TXD Communication output Serial communication, module end sending pin, connect controller terminal receiving pin.
9 RXD Communication input Serial port communication, module end receiving pin, and controller terminal sending pin.
10 VIN Power input Input power,DC +2.0V~+3.3V,300mA+
11 GND Power supply Input, input power, communication ground
12 +3V5 Power output Internal output voltage3.5VTest use
13 NCTRL control Continuous measurement of control pin, low level into continuous measurement mode

Communication Link

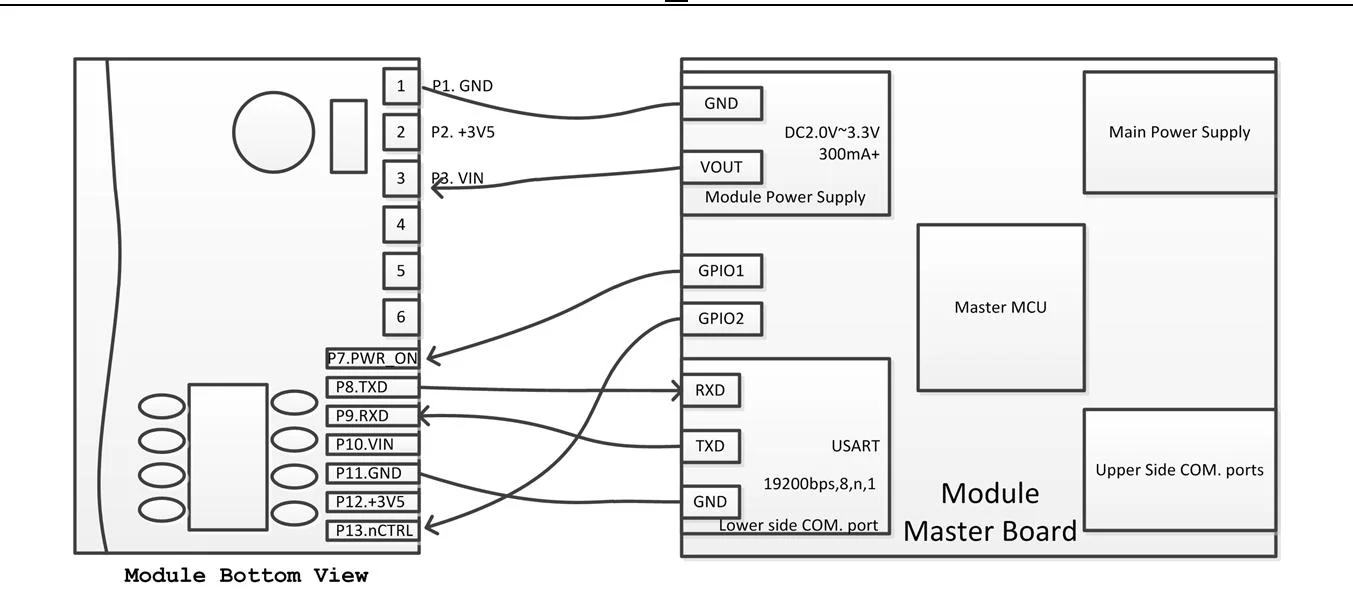

The module is directly connected with the main control.

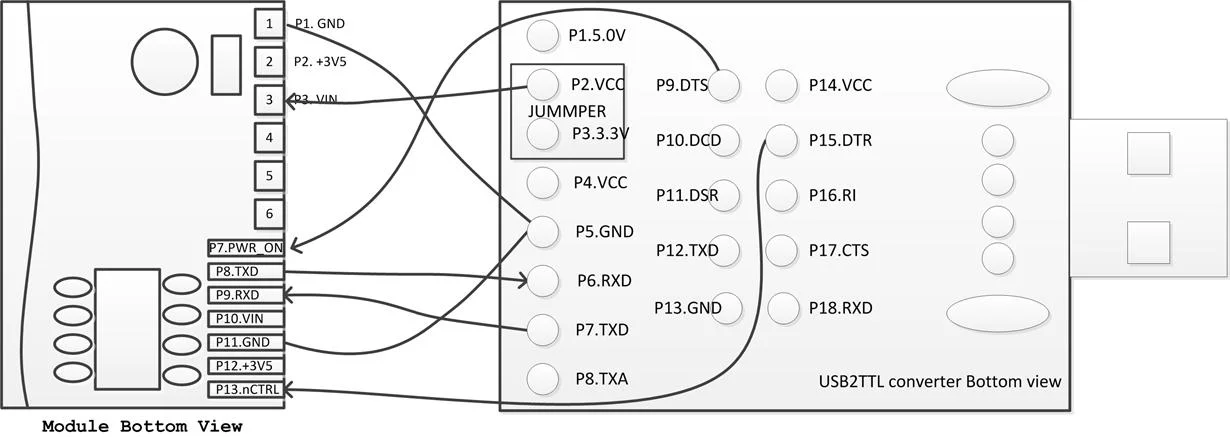

Module through USB serial port module and PC machine connection

Communication Operation

Port configuration, the Basic configuration of control port serial port:

Baud rate:19200bps

Starting position: One bit

Data bits: Eight bit

Stop position: One bit

Check bits: None

Flow control: None
