NANFENG HOT SELL magnetic latching And Electrical Car 48V ZJW250C Dc Contactor

Supplier: Zhejiang Nanfeng Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Ms Angela Chen
Price: $6.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

Number of Pole:	1;	Port:	Shanghai/Ningbo;
OEM:	Avaliable;	Electric Life:	20000 Times;
Certification:	CE/FCC/UL/TUV/CCC/ISO/SGS/ROHS;	Sample:	Free;
Main Circuit Rating Current:	250A;	Coil Power:	14W-17W;
Phase:	1;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Rated Voltage Of Contact Circuit:	DC 6V-80V;	Dielectric Strength:	50HZ 1000V AC 1Min;
Main Products:	DC Contactor,Connector,Emergency Disconnection Switch And So On.;	Model Number:	ZJW250C;
Name:	Air Conditioner Dc Relays-Dc Reversing Contactors;	Place of Origin:	Zhejiang China;
Main Circuit Rating Voltage:	6-220V;	Brand Name:	NANFENG;
Packaging Detail:	DC Contactor Packing: Export Carton;	Supply Ability:	10000 Piece/Pieces per Week Air Conditioner Dc Relays-Dc Reversing Contactors;
Main Rated Load Current:	250A;	Electricity Type:	DC;

You are here:Home>>DC Contactor

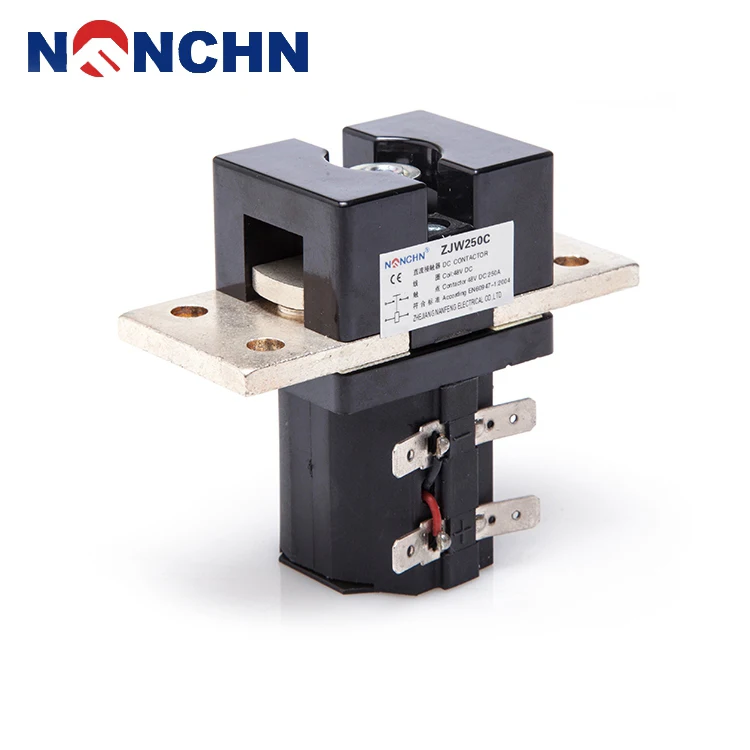

NANFENG Waterproof Air Conditioner And Electrical Car Dc Contactor Relays 250A

Product Infomation

Brief Technical Data

Parameters	Coil Voltage Of Contact Circuit(V)
Parameters	6-220V
Coil Power	14-17W
Main Rated Load Current Of Contact Circuit	250A
Rated Voltage Of Contact Circuit	6-80V DC
Dielectric(Volt)Strength	50HZ 1000V AC 1Min
Rated Load Current Of Contact Circuit	Not Above 80mv
Operating Time	Pickup(Contact makes):≤30 ms Release(Contact breaks):≤30 ms
Action Characteristic	Pickup(Contact makes):≤66%us Release(Contact breaks):≤30%us,≥5%us
Mechanical Life	100 Thouand times
Electric Life	20 Thousand Times

Specifications Subjiect To Change As The Customers' Request.

Product Introduction

This series contactors are suitable for the battery or the rectification power and suppliers power,using for handling drawing,the pump motor and other electronic vehicle.

Certification

NANFENG painstaking research of the CE/FCC/UL/TUV/CCC/ISO/SGS/ROHS and other international and domestic standards, and in accordance with these standards preparing their own more stringent corporate standards.

About Us

NANFENG specialized in producing all kind of DC Contactors,Connector And Emergency Disconnection Switches And So On.Through persistent research and development,we have grown into a leading manufacturer of this line.We produce several series products for you choose,if you are interesting in any of our product Please feel free to contact us or E-mail us we are happy to give you more details.
