Small waterjet cutting machine for metal marble granite ceramic tile glass composite cutting with CE TUV ISO9001 certifications

Product details
Servo driver and motor:Yaskawa;Voltage:Customized;
Brand Name:Watex;Intensifer:USA made;
Dimension(L*W*H):1400*1400*2200mm;Max pressure:55000PSI;
Warranty:3 Years;Directional l valve:Rexroth;
Rated Power:30kw;Product name:small waterjet cutting machine;
Supply Ability:9000 Set/Sets per Year;Packaging Detail:1.Whole film packaging machine; 2.Anti-collision package edge; 3.Fumigation-free plywood wooden box with iron binding belt. 4.Our wooden case is after fumigation treatment.Needn't timber inspection,saving shipping time. 5.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.Avoiding all damages that could happen in the delivery process. 6.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.;
Payment Terms:L/C,D/A,D/P,T/T,Western Union;Condition:New;
Control system:CNC;Place of Origin:Jiangsu China (Mainland);
Main motor:SIEMENS;Hydraulic pump:Rexroth;
Port:Nanjing;After-sales Service Provided:Engineers available to service machinery overseas;
Certification:CE ISO9001 TUV;Warranty:3 Years;
PLC:SIEMENS;Weight:3500KG;
Product Overviews

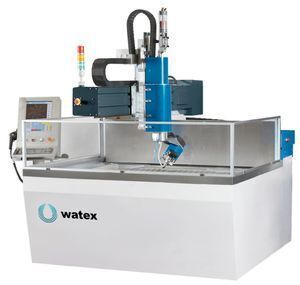

Edge 1313 small waterjet cutting machine



The Edge 13 models is commonly used for small size working pieces production .Hypiont’s Edge 13 Series small waterjet cutting machine outperforms the standard waterjet offerings in the industry and wins in value with an extended cutting area and extra strength beams and ball screws . Edge13 waterjets utilize German 1+F ball screws on the main beam and Japan THK guiding rail on the crossbeam which ensures accuracy across the additional length of gantry. Hypiont’s Edge 13 waterjet is ideal for abrasive waterjet cutting. It's robust table allows for more access to your work piece, making loading and unloading your materials easy. Hypiont performance made Affordable.
Workmanship
Excellent cutting table accessibility on a machine built for the Rigors of Waterjet cutting with robust mechanical design, integrated machine systems, intuitive user control, multiple table sizes, and several configurations available, the Edge 13 Series sets you up for success. As one of the best small waterjet cutting machine suppliers in china ,with Edge 13 you won't sacrifice performance, structural integrity, or the overall quality of your system. Hypiont also use laser calibration to check the high precision according to the international standard and high market requirement .
The price on this page not the real price ,the final price depends on final configuration .
SPECIALFICATIONS OF EDGE1313 SMALL WATERJET CUTTING MACHINE
NO.NameParameterUnit
1Width Machine1400mm
2Length Machine1400mm
3Height Machine2200mm
4Hieght of table 1870mm
5X axis1300mm
6Y axis1300mm
7Weight3500(subject to the final configuration)kg
8Max(X,Y)positional speed10meter/min
More information
9Accuracy

(±0.05“inch per 3'feet at 68° ±3°F)

(±0.127mm per 1M at  20 ° ±3 °C)

10Repeatability (±0.0025“inch at 68°± 3° F )(0.0635mm at 20° ± 3 °C)
11Cutting head model3 axis /4 axis /5 axis linkage
