Supply Ability: | 1000 Piece/Pieces per Month; | Guiderail Brand: | Chinese famous brand; |
Laser Head Brand: | Chinese famous brand; | Showroom Location: | United States,Russia; |
Product name: | C02 Laser Engraving Cutting Machine; | Cooling Mode: | WATER COOLING; |
Local Service Location: | United States,Russia; | Machinery Test Report: | Provided; |
Voltage: | 110/220v+/-10%; | Warranty: | 3 years; |
Engraving Area: | 400mm*600mm; | Engraving Speed: | 0-30000mm/min; |
Working area: | 600*400mm; | After Warranty Service: | Video technical support,Online support; |
Control system: | M2 Control System; | Optical Lens Brand: | Chinese famous brand; |
Condition: | New; | Laser Type: | CO2; |
Laser Source Brand: | EFR; | Core Components: | Motor; |
Software: | CorelDraw; | Application: | Laser Engraving; |
Servo Motor Brand: | Chinese famous brand; | Laser tube: | Sealed CO2 Glass Tube; |
Place of Origin: | China; | Control System Brand: | Chinese famous brand; |
Marketing Type: | New Product 2020; | Packaging Detail: | carton for export (High Quality Co2 Laser Head Set for Model 4060 Co2 Laser Cutting Machines Co2 Laser Accessories ); |
CNC or Not: | YES; | Key Selling Points: | Easy to Operate; |
Warranty of core components: | 3 years; | Package Preview: | ; |
Weight (KG): | 135; | After-sales Service Provided: | Online support; |
Laser power: | 50W/60W/80W/100W; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Other,Advertising Company; |
Certification: | ce; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,paypal; |
Graphic Format Supported: | AI,PLT,DXF,BMP,Dst,Dwg,LAS,DXP; | Applicable Material: | Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,wood; |
Video outgoing-inspection: | Provided; |

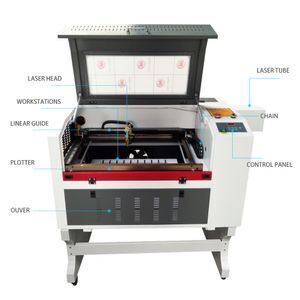

4060 60w 80w 3d Crystal Acrylic Glass Co2 Laser Engrave Cutting Machine Price Potable Desktop
Note: EXW factory price. Price is for 50W.
fiber laser marking machine |
1080 Co2 laser engraver machine
|
1390 Co2 laser engraver machine |
Color |
Gray and white |
Working Table Size |
600mm *400mm |
Laser Tube |
Sealed CO2 glass Tube |
Working Table |
Honeycomb and Blade table |
Laser Power |
50W/60W/80W/100W |
Cutting Speed |
0-60 mm/s |
Engraving Speed |
0-400mm/s |
Resolution |
±0.05mm/1000DPI |
Minimum Letter |
English 1×1mm (Chinese Characters 2*2mm) |
Support Fils |
BMP,HPGL,PLT,DST and AI |
Interface |
USB2.0 |
Software |
Corellaser and coreldraw |
Computer system |
Windows XP/win7/ win8/win10 |
Motor |
Stepper Motor |
Power Voltage |
AC 110 or 220V±10%,50-60Hz |
Power cable |
European Type/China Type/America Type/UK Type |
Working Environment |
0-45℃(temperature) 5-95%(humidity) |
Power consumption |
<900W (Total) |
Z-Axis Movement |
Automatic |
Position system |
Red-light pointer |
Cooling way |
Water cooling and protection system |
Cutting thickness |
Please consult sales |
Packing Size |
148x85x88cm |
Gross Weight |
135KG |
Package |
Standard plywood case for export |
Warranty |
All life free tech support, one year warranty, except consumables like laser tube, mirror and lens, etc. |
- signage and frames - key chain - emblem - cake topper - rubber stamp - wood stamp - tombstone (lapida) - acrylic plate number - acrylic name plates - plaques - plastic medals - wedding invitations - photos on wood - souvenirs
1. What materials does this model can work on?
# acrylic, plywood, wood, leather, cloth, plastic, glass(engraving only), double layer plastic, maylar, pet film and so on
nonmetal materials, if metal with coating or Alumina also can be engraved.( you can tell us what you want to engraving and
cutting, Maximum size and Material thickness. We will recommend the model that suits you and the power you need.)
2. If don't know how to install and use, can you help?
# yes, our pleasure to help, we offers all life free tech support, during warranty except consumables, if machine parts problem,
we send you new replacement, out of warranty, we still can help you check your machine no matter when need us help, if need change
parts will give you good price.
3. Will the machine ready to work after we receive it?
##Almostly, we will send you free spare parts with machine, after you open the package, you install it with our instructions, if budegt enough, you can buy a water chiller CW3000 or CW5000 together with machine for better cooling laser tube. If not enough,
just use the free water pump we send you, and prepare a water tank to hold water.
4. How you delivery the machine to me?
## There are 2 ways to send the package to you:
1st send you by sea to your seaport in CFR terms, need you pay your seaport mixed fees and customs tax, clear customs yourself, if can not do yourself, you can look for broker to help you. (20-60 days or so, economical way, suggest!) (Normally we offer you bill of lading, invoice, packing list, if need other documents , let us know in advance please)
2nd tell us your city and post code to check courier cost for you, as machine is big and heavy, send by courier, cost will be high.
