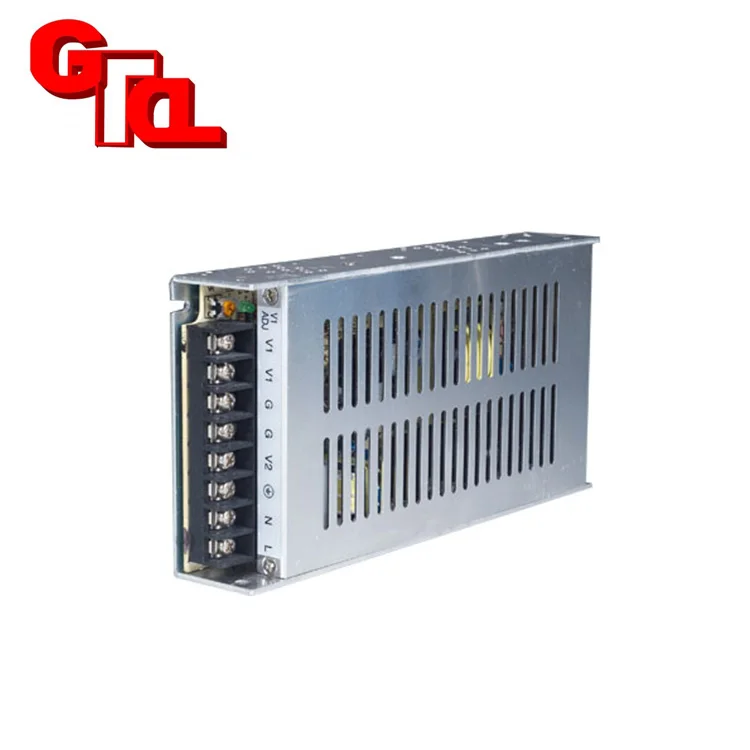

Advantech PWR-244-AE Panel Mount Power Supply

Supplier: Pressure Transmitter
Region: Taiwan, China
Contact: Mr. Boris Hsiao
Price: $100.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Payment Terms:	T/T;	Place of Origin:	Taiwan;
Model Number:	PWR-244-AE;	Output Current:	4.2 A max;
Supply Ability:	30 Piece/Pieces per Month;	Port:	Taiwan;
Brand Name:	Advantech;	Output Voltage:	+24 VDC ±10%;
Packaging Detail:	Carton;	Input Voltage:	100 ~ 240 VAC;

>More Products:

Feature

Input short protection

Output overload protection

Specifications
Input
Input Current 1.4 A max.
Inrush Current (cold) 25 A/110 VAC
50 A/220 VAC
Input Frequency 47 ~ 63 Hz
Input Voltage 100 ~ 240 VAC
Short Protection
Output
Output Current 4.2 A max.
Output Voltage +24 VDC ±10%
Overload Protection
General
Certifications CE, FCC, UL
Connectors Screw-terminal
Dimensions (L x W x H) 198 x 99 x 35 mm (7.80" x 3.90" x 1.38")
Enclosure Sheet metal
MTBF 70,000 hrs
Operating Temperature 0 ~ 50° C (32 ~ 122° F)
