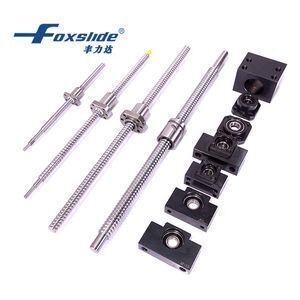

Hot selling hiwin TBI precision 1605 1610 2005 2505 2504 2510 3204 3205 3210 4005 4010 5010 6310 CNC linear guide ball screw
-
Supplier: Beijing Foxslide Automation Technology Co., Ltd. -
Region: Beijing, China -
Contact: Ms Jilly Von -
Price: $27.00 / >=50 sets -
Min. Order: 50 sets
| Ball screw nut: | Assembled with ball screw; | Certificate: | ISO9001-2008; |
| Place of Origin: | Beijing China; | Port: | Tianjin; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; | Applicable Industries: | Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Retail; |
| After Warranty Service: | Online support; | Warranty of core components: | 1 Year; |
| Supply Ability: | 6000 Set/Sets per Month hiwin linear guide ball screw; | Length: | 10mm to 6000mm,Customized; |
| Core Components: | Bearing; | Manufacturing Process: | Rolled Thread; |
| Warranty: | 1.5 years; | Local Service Location: | None; |
| Marketing Type: | Ordinary Product; | Axial clearance and preload code: | P0-P4; |
| Brand Name: | HIWIN TBI; | Diameter: | 12mm to 100mm; |
| Brand: | TBI; | Material: | GCr15; |
| End machining: | As per requirement; | Condition: | New; |
| Accuracygrade code: | PR1-PR4; | Video outgoing-inspection: | Provided; |
| Support unit: | BK+BF; EK+EF; and FK+FF three option; | Showroom Location: | None; |
| Packaging Detail: | hiwin linear guide ball screw--One set in a plastic bag, and packaged by carton box and wooden box; or as per requirement.; | Machinery Test Report: | Provided; |
Hot selling hiwin TBI precision 1605 1610 2005 2505 2504 2510 3204 3205 3210 4005 4010 5010 6310 CNC linear guide ball screw :
- Precision rolled (PR)
- High Precision rolled (HP)
In general, both grades use the same preload method as precision ground ballscrews,
except that there are some differences in the lead error definition and geometry tolerance.
Hiwin linear guide ball screw application:
1. Engraving machines;
2. High speed CNC machinery;
3.Semi-Conductor equipment;
4. Auto-machinery
General ball screw nut type:
F: Flanged end
S: single nut
B: boder return rube
Large lead:
F: flange end
S: single but
H: end cap
F: Flanged end
S: single nut
V: tube above nut diameter
F: flange end
S: single nut
W: tube within nut diameter
R: round
S: single nut
B: Bonder return tube
R: round
S: single ballscrew nut
V: Tube above nut diameter
(1) Carton box or as per requirement:
(2) Shiped by air in 7days; and by sea in 35 days.
Our advantages:
I. Products quality guarantee:
1. Approved by international inspection mechanism SGS-CSTC;
2. Tested by National Center of Supervision and inspection on Furniture Quality on the basis of DIN 68858-82;
3. ISO9001:2000 evaluated by DAS on the spot;
4. Heavy duty drawer slide are patented.
5. One year of quality guarantee except human factors.
II. Short production period
We have USD800,000 of products in stock for availability.
III. Moderate price
From all aspects, qualitied supplier, cooperator and service parties are chosen.
IV. Experienced and professional sales staff.
Beijing G.H.X. Slide Hardware Products Co., Ltd is a leading integrated company in manufacturing, processing and supplying slide hardware products. We supply drawer slides and linear transmission products.
Drawer slide series: with loading from 45kg to loading 227kg, widely used in IT industry, furniture design, server cabinets in telecommunication industry, automatic teller machine (ATM) cabinets in banking industry, vehicle-mounted heavy-duty storage cabinet, etc.
Linear transmission products: linear guide, ball screw, shaft couplings which are widely used in CNC machines, precision tool machines, production machines, electronic machines, transmission machines and etc.
-
