Dongya F32 Sofa Wood Furniture Pneumatic Air Nailer

Product details
Package:Color Paper Box;Main Application:Cabinet work,Staircases,Furniture;
Material:Aluminum Alloy;Brand name:Dongya;
Model Number:F32/9032,F32;Package Preview:;
Load Capacity:100 Pcs;Net Tool Weight:1.09kg (2.40lbs);
Required Pressure:4-7kg/cm3;Penumatic tools:Combine tool;
Place of Origin:Zhejiang China;Supply Ability:20000 Piece/Pieces per Month;
Payment Terms:L/C,T/T;Port:SHANGHAI or NINGBO;
Tool Dimensions:236x56x218mm(9.29x2.20x8.58 in);Packaging Detail:White Paper box, Color Box, Blow Mode Case(plastic box);

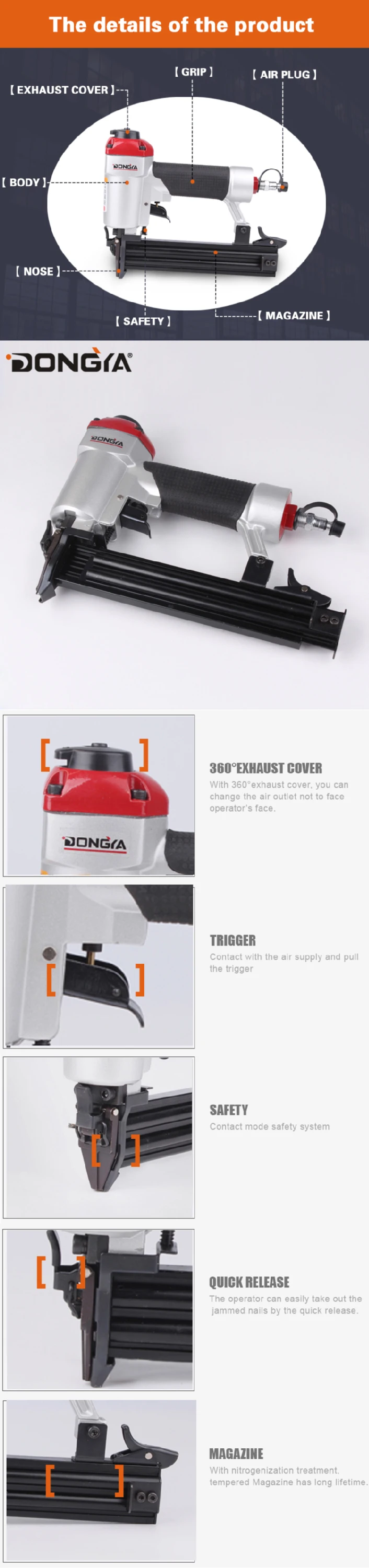

Dongya F32 Sofa Wood Furniture Pneumatic Air Nailer

30 Year Production Experience

Industry's Leading Factory

Taiwan Engineer With 30 Years Experiences In Nail Gun Industry

Taiwan Spare Parts



F Nails Air Guns SPECIFICATION

  FEATURE

 • "Contact mode" safety system

 • Light die cast body of aluminum alloy

 • Side loading system

 • Remain nail display available

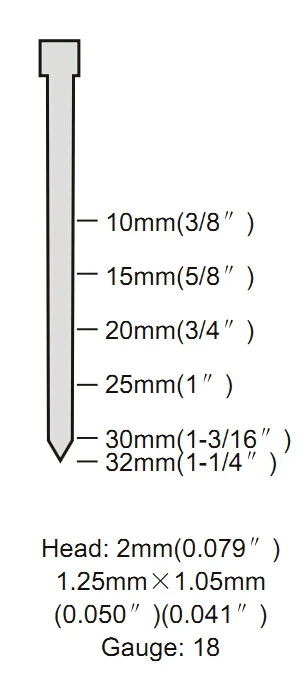

 • Nail Size: 1.25mm x 1.05mm

 • Nail Length: From 10mm to 32mm









+
Tool Diamensions: 250x55x205mm (9.84x2.17x8.07 in.)
Net Tool Weight: 1.16kgs (2.55 lbs)
Operate Pressure: 4~7Kg/cm (60~100Psi)
Load Capacity: 100 Nails



F Nails Air Guns ADVANTAGE

1. 500000 working times

2. 30 years production experience

3. 100% Spare parts can be supplied to you.

4. Very powerful for hard wood





 MAIN APPLICATION FOR  F Nails Air Guns

Packaging & Shipping



Service and Repars



 SERVICE AND REPAIRS

+
No.   Symptom Problems Solutions
1.1 Air Leak  Air leak in the cylinder cap when tools don't work  1.Loose head valve piston seal or o-rings . Check and replace the head valve piston set
2.Worn or damaged o-ring or cylinder cap gasket under cylinder cap  Check and replace o-ring or cylinder cap gasket under the cylinder cap
1.2 Air leak in Trigger area  when tools don't work 1.Damaged o-ring in trigger valve  Check and replace  o-ring
2.Damaged o-ring in trigger valve stem  Check and replace o-ring
3.Dirt in the trigger valve Check and clean the trigger valve
1.3 Air leak in cylinder cap when tools are working  1.Damaged head valve piston o-rings Check and replace  o-rings
2.Damaged seal under cylinder cap  Check and replace seal
1.4 Air leak in nose when tools are working  1.Worn or damaged bumper Check and replace bumper
2.Loose driver(piston unit) thread Check and replace driver(piston unit)
1.5 Air leak in Trigger area when tools are working 1.Worn or damaged trigger valve head Check and replace trigger valve head
2.Damaged head valve piston o-rings Check and replace head valve piston o-rings
2 Failed to get driver(piston unit) back to the correct position completely. 1.The driver(piston unit) is not straight or the driver guide(nose) is wrong assembled. Straighten the driver(piston unit)  or verify driver guide(nose) and magazine
2.Worn or damaged nozzle   Check and replace nozzle
3.The space between piston o-ring and  cylinder is too tight. Check if the cylinder is adequate lubrication or replace the o-ring on the piston.
3 Work weakly and sluggishly 1. Worn or damaged  piston o-ring  Check and replace piston o-ring
2.Inadequate lubrication for head valve piston o-rings or too tight head valve piston o-rings   Place 2 or 6 drops of oil on o-rings or replace  head valve piston o-rings
3.Dirt in the nozzle Check and clean the nozzle
4 Tool jams frequently 1.Damaged or Worn driver (piston unit) Check and replace driver (piston unit)
2.Damaged or Worn driver guide (nose) Check and replace  driver guide (nose)
3.Driver guide cover is bent,so the space between driver guide cover and driver guide is too big Check and replace driver guide cover
5 Nail can not be shot 1. Driver (piston unit) can't return to the correct position. Refer to no. 1  Symptom
2.Driver guide(nose) can not match magazine well Check and correct the position between driver guide(nose) and magazine
3.Worn or damaged nail pusher compression spring  Check and replace nail pusher compression spring
