No-load speed: | / | model: | FNN2190 |
Supply capacity: | 20000 pieces per month | Operating pressure: | 5-7 kg (70-110 psi) |
weight: | 3.67 kg (8.07 lbs) | Customization support: | Processing |
Packaging Details: | BMC package (plastic case) | Nail Type: | 21 degree curly nail |
port: | Shanghai or Ningbo | Warranty: | / |
application: | making, framing | Package preview: | |
payment terms: | L/C, T/T | Origin: | Zhejiang, China |
Material: | aluminum alloy | Nail Length: | 50-90mm |
Package: | blown plastic box |
40 years of production experience
Industry leading factory
Engineers with 30 years of experience in the nail gun industry
imported spare parts

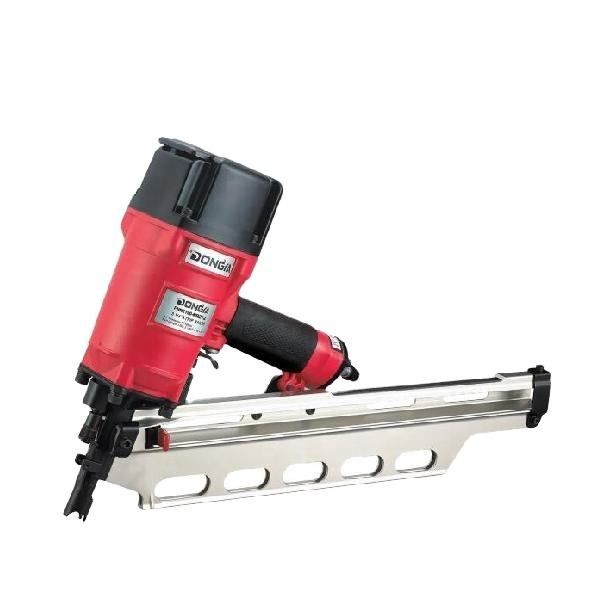

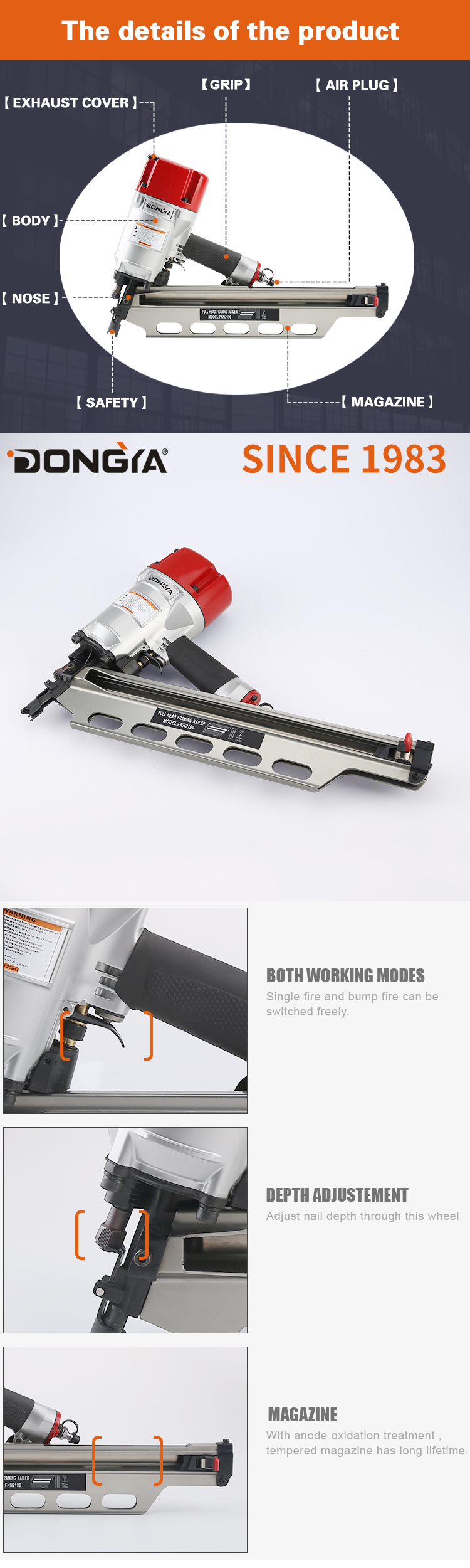

Features of FNN2190
1.360 degree exhaust direction
2. "Contact" safety system is often used to speed up work efficiency (at the same time we also
Sequential patterns can be produced if the customer wishes
3. Lightweight aluminum alloy die-casting body (3.80kgs)
4. Top loading system
5. Easy to adjust length design
6. The magazine can match HITACHI NR83A2 magazine
1. Use 21-degree plastic framed nails
2. Framing nail diameter: 2.87-3.30mm or 0.113-0.130 inches
3. Framing nail length: 50-90mm or 2-3-1/2 inches
4. Load capacity: 60 frame nails
5. Tool net weight: 3.80 kg (8.36 lbs)
6. Tool size: 530x160x370mm (LXWXH)
7. Best working air pressure: 0.65-0.75Mpa
Applications of FNN2190
1. Frame, box, box
2. Floors, sheathing, subfloors
FNN2190 accessories
1. Engine oil, Allen wrench, operation manual, goggles
No. | symptom | question | solution | |
1.1 | air leak | Air leaks from the cylinder head when the tool does not work | 1. Loose valve piston seal or O-ring. | Check and replace head valve piston group |
2. The O-ring or cylinder head gasket under the cylinder head is worn or damaged | Check and replace o-rings or cylinder head gaskets under the cylinder head | |||
1.2 | Air leaks in the trigger area when the tool is not working | 1. The O-ring in the trigger valve is damaged | Check and replace O-rings | |
2. The O-ring in the trigger valve stem is damaged | Check and replace O-rings | |||
3. There is dirt in the trigger valve | Check and clean trigger valve | |||
1.3 | Air leaks from the cylinder head when the tool is working | 1. The O-ring of the head valve piston is damaged | Check and replace O-rings | |
2. The seal under the cylinder head is damaged | Check and replace seals | |||
1.4 | Air leaks from the nose while the tool is working | 1. Worn or damaged bumper | Check and replace bumper | |
2. The drive (piston unit) thread is loose | Check and replace drive (piston unit) | |||
1.5 | Air leakage in the trigger area while the tool is working | 1. The trigger valve head is worn or damaged | Check and replace trigger valve head | |
2. The O-ring of the head valve piston is damaged | Inspect and replace head valve piston O-rings | |||
2 | Failure to fully return the drive (piston unit) to the correct position. | 1. The driver (piston unit) is not straight or the driver guide rail (nose) is assembled incorrectly. | Straighten drive (piston unit) or verify drive rail (nose) and magazine | |
2. The nozzle is worn or damaged | Check and replace nozzles | |||
3. The gap between the piston O-ring and the cylinder is too tight. | Check the cylinder for adequate lubrication or replace the O-ring on the piston. |
