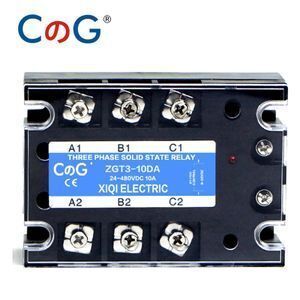

CG 3 Phase 10A 25A 40A DA Three Phase SSR 3-32V DC Control 24-480V AC Solid State Relay SSR AC Three DC-AC

Product details
Single gross weight:0.33 KG;Weight:330g;
Size:105x74x33mm,Miniature;Single package size:15X11X9 cm;
Contact Load:Low Power;Place of Origin:Zhejiang China;
Control Current:5~15mA;Load Voltage:24-480VAC;
Packaging Detail:The solid state relay is packed in standard carton box.;Protect Feature:Sealed;
Model Number:ZGT3-10DA/25DA/40DA;Certificates:CE,ISO9001;
Control Voltage:3~32VDC;Brand Name:CG;
Ambient Temperature:-20~ +75 ℃;Load Current:10A/25A/40A;
Usage:General Purpose;No. of Phase:3;
Selling Units:Single item;Theory:Solid State Relay;
Product Display


Model ZGT3-10DA/25DA/40DA
Control Voltage 3~32VDC
Min Control Current 5mA
Max Control Current 20mA
Load Voltage 24-480VC
Load Current 10A/25A/40A
Insulation Resistance 1000M Ohm/ 500VDC
Off Leakage Current <=8mA
On Voltage <=1.5V
On-off Time <=10ms
Ambient Temperature  -20~+75  ℃
Mounting Method Screw fixed
Relative Humidity ≤95%(Non-condensing)
Dimensions 105x74x33mm
Mounting method Screws on
Weight ≤500g




Company Profile

Advantage

Our Factory

Certification



Exhibition



Packaging&Shipping

 FAQ

Q:How and how long can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality. Then after you send us confirmed

    files, the samples will be ready for delivery in 7 days. The samples will be sent to you via express and arrive

    in 5-7 workdays.



Q:How to order our product ?

A: 1).Please tell us the model and quantity and other request you need.

    2).We make the PI for you.

    3).After you confirm the PI, we arrange the order for you after receiving your payment.

    4).After the goods finished, we send the goods out to you and tell you the tracking number.

    5).We will track your goods until you receive the goods.



Q: Can I have a visit to your factory before the order?

A:  Welcome! Our factory address: Fenghuang Industrial Zone,Yueqing City, Wenzhou, Zhejiang, China

     (Mainland)



Q: What's your shipment method?

A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the

     most proper shipment method.



Q: What's about MOQ?

A: First order MOQ=1pcs



Q: If i want to release order, what's the payment method you accept ?

A: We accept T/T, Paypal, Western union, L/C,etc.



Q: If i want to release order, what's the process?

A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
