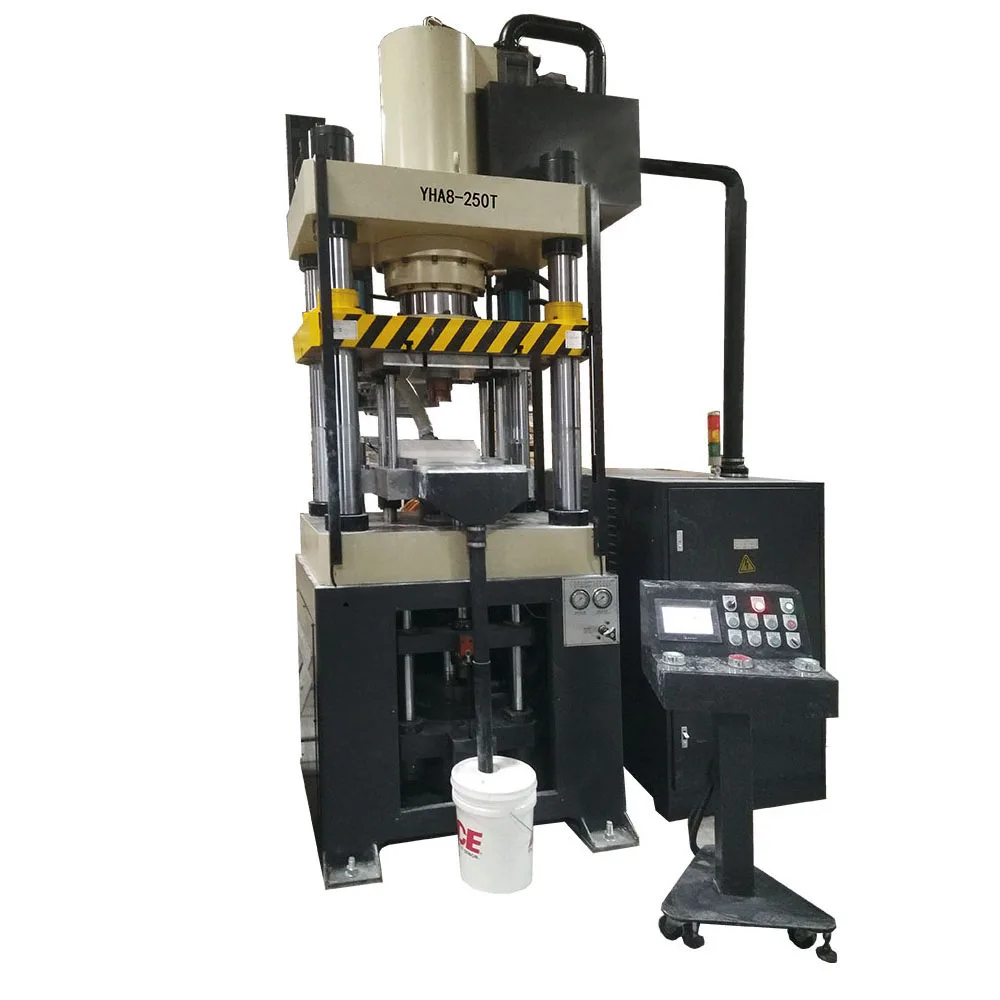

200Ton 250Ton powder metallurgy compacting servo hydraulic press machine with Automatic Feeding System

We can provide total solutions, including machines, molds, product processing technology, automated production lines.

200Ton 250Ton powder metallurgy compacting servo hydraulic press machine with Automatic Feeding System

Technical Features

1. Four columns are made of high-strength quality round steel with surface hardened via high-frequency treatment, and electroplated after grinding. Good abrasion resistance is guaranteed.

2. Production efficiency is high with fast falling speed of the moving bolster.

3. Pressure, stroke and pressurizing time can be adjusted according to processing requirement.

4. Designed with PLC programming circuit and touch panel operating system. Easy and convenient to operate.

5. Optional configuration: protective shielf, LED lighting and infrared grating, etc.

Machine Detail

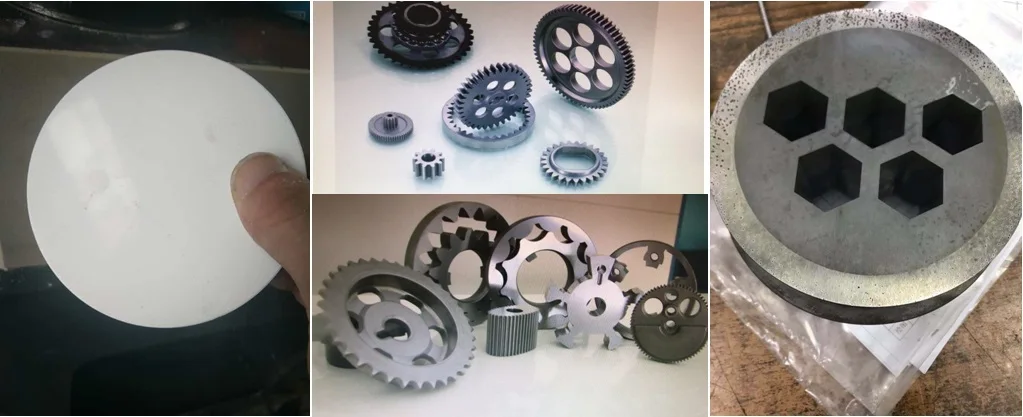

Product Application

l Producing the Powder Metallurgy Parts.

l Producing the cosmetic ,pharmaceutical industries parts

l Producing the Iron-Base & Non-Ferrous- Base Sintered Structural Parts

l Producing the Ceramic & Cermet Parts

l Producing the Carbon & Carbide Parts

l Producing the Magnetic & Self – Lubricating Parts

l Producing the Stainless & Alloy Parts

l Producing parts for Automobile & Machines

l Producing parts for Aircraft & Aerospace

l Producing parts for Atomic Reactors

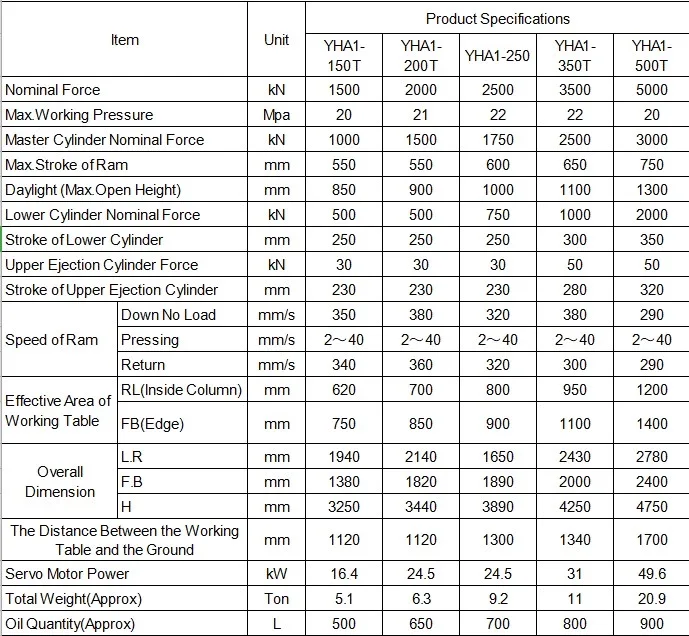

Standard Specification

All above specifications are standard sizes of hydraulic press machine.
Special customized specification is also available for us!

 Machine Components

Why so many famous brand company cooperate with us ?
1.Our factory have specialized in independent development and producing hydraulic press for 20 years.

   So the product is stable and high quality.
2. Machine body, we use bending structure , much stronger than the common welding structure .
3. Oil pipe, we use Clip-on structure , much tight than common welding structure. Prevent oil leakage.
4. We take integrated oil manifold block, much easier to check machine and repair machine.
5.The main components are imported from Germany, Italy and Japan . So the quality is near the Japan production, but the unit price is lower than Japan production.
6.Our factory can offer full set line service, such as the mould,process technology, and other relative machines.

Certificate

Our Factory

Dongguan Yihui Hydraulic Machinery Co., Ltd. is a company specializing in all kinds of standard and

non-standard hydraulic press and stamping machinery’s design, manufacture, and sale.

YIHUI brand machines have been exported to over 40 pcs countries,
such as Germany,USA,UK,Sweden, Japan,Slovenia,Togo, Malaysia,Vietnam,Pakistan and so on.

Especially speciallized in the servo system hydraulic press machine .

YIHUI hydraulic press machines are widely applied to hardware,automotive,die casting,electronic,cookware,paper and many other industries.

We are able to provide total solutions including machines,dies,product processing technology and automated production lines,etc.

Customer Show

Exhibition

Q1: Are you trade company or manufacturer?

Answer: We are an enterprise with sales, R&D, manufacturing and patent.
Q2: Whether to provide quality assurance and complete after-sales support? Or say, does engineers available to service overseas?
Answer: Yes!
Warranty period of Our hydraulic press machine is 12 months, if necessary,we support the site installation,
commissioning, technical guidance,and after-sales maintenance support.
Q3:How can I know what kinds of the machine and which size suits my needs best?
Answer: Before we have a deeper communication on the target machine, the drawings, material, pics, size and production of the
products you are willing to make are necessary.
Q4:Does customized is acceptable?
Answer: Yes, we accept customized when necessary.
Q5:Why choose us ?
Answer: 1.Our factory has specialized in independent development and producing hydraulic press for 19 years. So the product is
stable and with high quality.
2. About machine body, we use bending structure which is much stronger than the common welding structure .
3.About oil pipe, we use Clip-on structure which is tighter than common welding structure and can prevent oil from leakage.
4. We take integrated oil manifold block which is much easier to check and repair machine.
5.The main components are imported from Japan and Taiwan . So the quality of our machine is close to Japan while the unit price is
lower than Japan.
6.Our factory can offer full set line service, such as the mould,process technology, and other relative machines.
