Industrial Rotary Drier Drying Machine Furnace Rotary Dryers For Sale

Supplier: Zhengzhou Zhongding Heavy Duty Machine Manufacturing Co., Ltd.
Region: Henan, China
Contact: Ms Angela Zhou
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Type:	Sludge Rotary Drum Dryer,Rotary Drying Equipment;	Supply Ability:	90 Set/Sets per Quarter High Efficiency Sludge Rotary Drum Dryer machine rotary dryer;
Showroom Location:	None;	Marketing Type:	New Product 2020;
Equipment installation:	Provide;	Quality:	High Ruputation;
Applicable Industries:	Energy & Mining;	Key Selling Points:	Multifunctional;
Core Components:	Bearing,Gearbox;	Warranty of core components:	1 Year;
Voltage:	according to models;	Machinery Test Report:	Provided;
Video outgoing-inspection:	Provided;	Dimension(LWH):	According to capacity;
Price:	negotiation;	Packaging Detail:	Standard container or as customers' requirements.;
Brand Name:	ZONEDING;	Port:	shanghai,qingdao,dalian;
Condition:	New;	After-sales Service Provided:	Engineers available to service machinery overseas;
Product name:	High Efficiency Sludge Rotary Drum Dryer;	Payment Terms:	L/C,T/T;
Certification:	CE,BV,ISO9001-2008,ISO,CE,BV certificates;	Warranty:	1 year,one year;
After Warranty Service:	Video technical support,Spare parts;	Place of Origin:	Henan China;
Operation training:	Provide;	Power:	55500-90000;
Application:	Ore,mineral dressing,building material,metallurgy,and chemical,Chemicals Processing;	Local Service Location:	None;

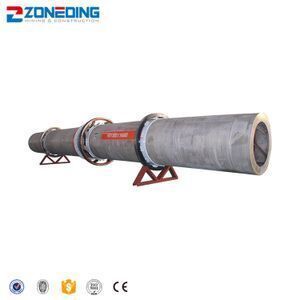

Industrial Rotary Drier Drying Machine Furnace Rotary Dryers For Sale

Product Description

Rotary dryer are widely used for building material, metallurgy, chemical industry, cement plant for dry sand, slag, clay stone, etc. Rotary drum dryer mainly consists of rotary body, raw material feeding plate,driving and supporting device

Model	Shell diameter (mm)	Shell length (mm)	Slope(°)	Rotary speed(r/m)	Weight(t)	Power (KW)	Volume (m3)
Φ0.6×8	600	8000	3-5	8	5.1	5.5	2.26
Φ0.8×10	800	10000	3-5	7.2	6.9	5.5	5.02
Φ1.0×10	1000	10000	3-5	6.73	7.5	7.5	7.85
Φ1.2×12	1200	12000	3-5	5.8	13.1	11	13.3
Φ1.5×12	1500	12000	3-5	5.4	19	18.5	21.2
Φ1.8×12	1800	12000	3-5	5	25	18.5	30.52
Φ2.2×16	2200	16000	3-5	3.2	41	30	60.8
Φ2.4×18	2400	18000	3-5	3	51	30	81.43
Φ2.8×24	2800	24000	3-5	2-5	97	75	147.8
Φ3.0×26	3000	26000	3-5	2-5	110	90	183.7

Rotary Drying production line was installed in Russia in 2017

Capacity: 15 t/h Raw materail: sand,sludge

Main Equipment: Vibrating Feeder, Jaw Crusher, Impact Crusher, Vibrating Screen, Belt Conveyor

Rotary Drying Plant in Philippines

FAQ: Free Price

1.How to choose you dry equipment?

A: At first, please inform us what kind of material you need to dry.

Second, you should inform us how much output you need per hour.

Third, what kind of heat source you have(Electric heating/oil furnace/gas furnace/coal furnace/stream)

2.Can you provide plant layout?

A: Yes, we can provide. Our clients should provide the CAD drawing and pictures of the scene. According to the CAD drawing, we can design the reasonable layout.
