CE approval MDF wood acrylic laser cutter 100w 150w CO2 6090 laser cutting machine price

Product details
Laser Type:CO2;Keyword:laser cutter 6090;
Local Service Location:United Kingdom,France,Germany;Guiderail Brand:HIWIN;
Package Preview:;Warranty of core components:3 years;
Cutting Thickness:maxi 20mm acrylic;Control system:Ruida LCD DSP Control System;
Condition:New;Machinery Test Report:Provided;
Optical Lens Brand:II-VI;Cutting Area:900*600mm;
Core Components:Motor,Bearing;Warranty:3 years;
Place of Origin:Shandong China;After-sales Service Provided:Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Cutting Speed:40000mm/min;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Laser tube:Sealed CO2 Glass Tube;Graphic Format Supported:AI,PLT,DXF,BMP,Dst,Dwg,LAS,DXP;
Control Software:Rdworks v8;Packaging Detail:CE approval MDF wood acrylic laser cutter 100w 150w CO2 6090 laser cutting machine price. Plywood for export.;
Positioning Accuracy:0.01mm;Showroom Location:United Kingdom,Germany;
Laser Source Brand:RECI;Applicable Industries:Garment Shops,Manufacturing Plant,Home Use,Printing Shops,Advertising Company;

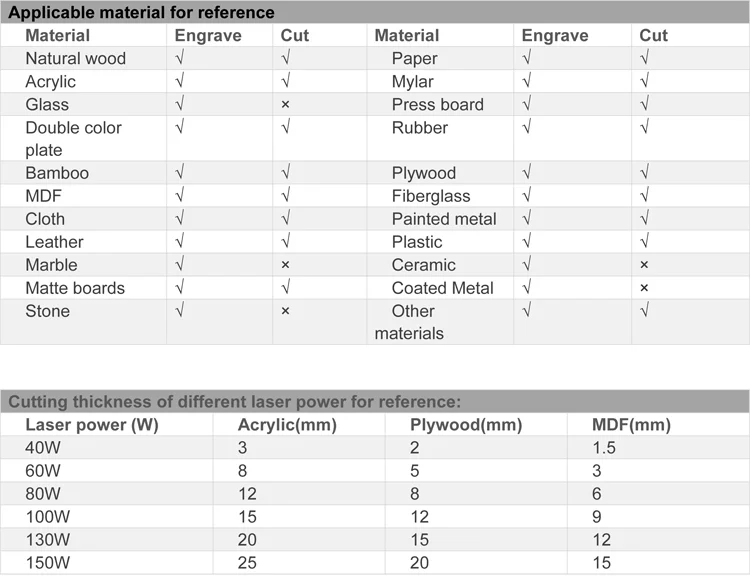

Cutting materials:Acrylic Wood Mdf Plywood Plactical;Working table:Honeycomb Table;
Marketing Type:New Product 2020;Control System Brand:RuiDa;
Video outgoing-inspection:Provided;Working area:900*600mm;
Function:Engraving Cutting Nonmetal Materials;Port:QINGDAO, SHANGHAI;
Product name:C02 Laser Engraving Cutting Machine;Cooling Mode:WATER COOLING;
Applicable Material:Acrylic,Glass,Leather,MDF,metal,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,wood;Brand Name:ZING;
Application:LASER CUTTING;CNC or Not:Yes;
Certification:ce;Key Selling Points:High-accuracy;
Weight (KG):350;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Supply Ability:200 Set/Sets per Month;

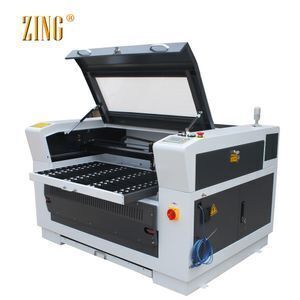

CE approval MDF wood acrylic laser cutter 100w 150w CO2 6090 laser cutting machine price

China Maquina de Corte Laser 1390 / 9060 / 6040/1325



Detailed Images









Samples

 Samples of laser engraving cutting machine:



Product parameters



Specifications of laser engraving cutting machine:
+
Model  Z6040  Z6090  Z1390
Working area  600*400mm  600*900mm  1300*900mm
+

 Laser Types

 Hermetic And Detached CO2 Laser Tube

 Laser-power

 60w (Optional:80W,100W,150W)

 Engraving speed

 0-75,000(mm/min)

 Cutting speed

 0-40,000(mm/min)

 minimum letter

 English 1×1mm

 location precision

 ≤0.01mm

 Resetting positioning  accuracy

 0.01mm

 Driving system

 stepper

 Software   Rdworks V8
 Compatible software

 CorelDraw, AutoCAD, Photoshop

 360°slope engrave

 yes

 Power supply

 AC 220V/50Hz~60HZ  (110V is also available)

 Laser output control

 1-100% control panel and software setting

 Highest scanning precision

 50-1000DPI

 Auxiliary Devices

  Exhaust fan and Exhaust pipe

 Cooling model

 water cooling and protection system

 Graphic format support

 BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc

 Packing list

1. User manual---1 pc
2. User-manaul and CD---1pc
3. Exhaust fan---1 pc
4. Exhaust pipe---1 pc
5. Air pump ---1 pc
6. Air pipe ---1 pc
7. Water pump---1 pc
8. Water pipe---1 pc
9. Bases---4 sets
10. Wheel---4 sets
11. Laser tube---1 pc

Optional parts:

1) Motorized up and down table for Z axis

2) Rotary attachment for cylinder engraving, like cups, bottles...

3) Water chiller cw3000

4) Water chiller cw5000



Free provide

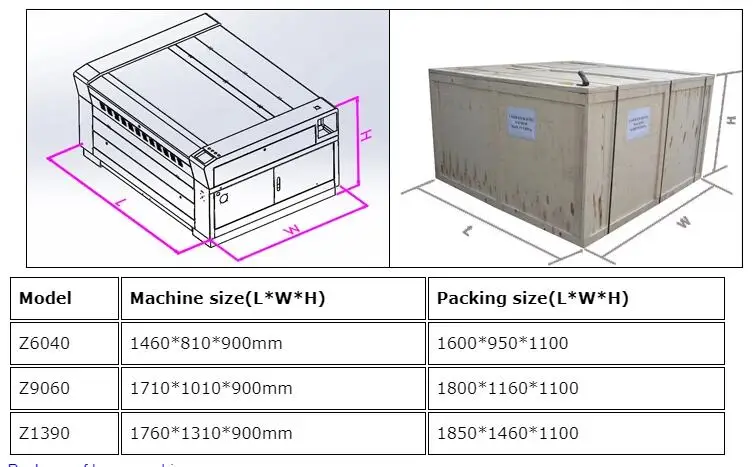

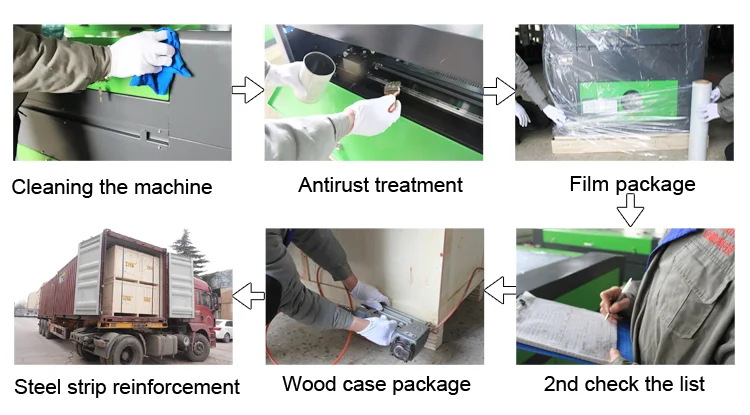

Packaging & Shipping







Company Information



  • Founded in 2002.
  • Has developed to a Large-scale International Manufacturing company.
  • More Accuracy,More Automatically and Higher Quality Products with Intimate After-sales Service
  • Jindiao Be The Leader Of Laser Industry
  • Earn the Best Reputation and World-wide Trusted Customers.
  • Jindiao laser machines cover all Chinese market and also very popular in America,West Europe,South Asian,East Asian etc. More Than 150 Countries

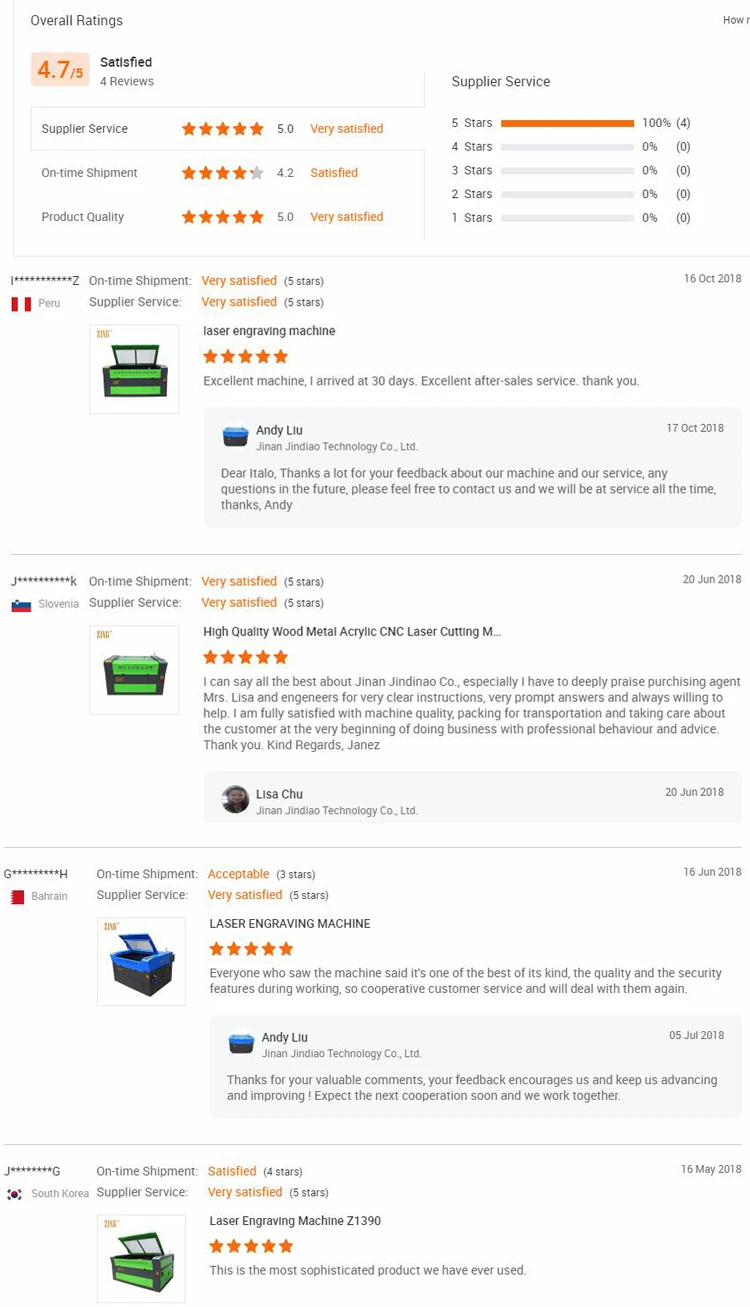

               We got Satisified 5 Starts Reviews From Many Many Customers! ;)
