Original Japan linear guides bearing thk ssr15 ssr20 ssr25 ssr30 ssr35

Supplier: Asia FON (Tianjin) Technology Co., Ltd.
Region: Tianjin, China
Contact: Ms Marada Guo
Price: $6.90 /piece
Min. Order: 1 piece

Click here to contact

Product details

Package Preview:	;	Warranty:	1.5 years;
Condition:	New;	Marketing Type:	Hot Product 2019;
Product name:	Original Japan linear guides bearing thk ssr15 ssr20 ssr25 ssr30 ssr35;	Feature:	Smooth Motion;
Structure:	linear motion;	Core Components:	linear guide rail;
Model Number:	THK ssr15 ssr20 ssr25 ssr30 ssr35;	Color:	Black and gray;
Accuracy:	C,H,P;	Brand Name:	THK linear carriage;
Warranty of core components:	1 Year;	After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;
Local Service Location:	Viet Nam,Brazil,Indonesia,India;	Performance:	Smooth Linear Guide Rail;
Payment Terms:	L/C,Western Union,T/T;	Applincation:	printer,cnc machine;
Material:	carbon steel;	Port:	Shenzhen,Tianjin,Shanghai;
Video outgoing-inspection:	Provided;	Type:	Linear Guide Bearing;
Packaging Detail:	Original Japan linear guides bearing thk ssr15 ssr20 ssr25 ssr30 ssr35 1.The original color box packaging 2.Commercial packing (block): 1pc/Plastic bag + Color Box + Carton + Plywood Pallets/Plastic Pallets 3.Commercial packing (rail): 1pc/Plastic bag + Carton + Plywood Pallets/Plastic Pallets 4. As Your Requirement;	Stocks:	Rich;
Machinery Test Report:	Provided;	Showroom Location:	Viet Nam,Brazil,Indonesia,India;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Retail,cnc;	Supply Ability:	5000 Piece/Pieces per Week thk ssr15 ssr20 ssr25 ssr30 ssr35;
Place of Origin:	Japan;

Original Japan linear guides bearing thk ssr15 ssr20 ssr25 ssr30 ssr35

THK thk blocks use of a ball cage eliminates friction between balls, and achieves low noise, acceptable running sound, long-term maintenance-free operation, and superbly high speed response.

Brand	series	model series	size
THK	SSR series	SSR-XW	SSR 15XWK, SSR 15XWM, SSR 20XW, SSR 20XWM, SSR 25XW, SSR 25XWM, SSR 30XW, SSR 30XWM, SSR 35XW
		SSR-XV	SSR 15XV, SSR 15XVM, SSR 20XV, SSR 20XVM, SSR 25XV, SSR 25XVM
		SSR-XTB	SSR 15XTB, SSR 20XTB, SSR 25XTB

SSR-XW	With this type, the LM block has a smaller width (W) and tapped holes.
SSR-XV	This type has the same cross-sectional shape as SSR-XW but has a shorter overall LM block length (L).
SSR-XTB	Since the LM block can be mounted from the bottom, this type is optimal for applications where through holes for mounting bolts cannot be drilled on the table.

thk linear carriage advantages

(1) The absence of friction between balls, together with increased grease retention, achieves long service life and long-term maintenance-free (lubrication-free) operation.

(2) The absence of ball-to-ball collision achieves low noise and acceptable running sound.

(3)The absence of friction between balls achieves low heat generation and high speed operation.

(4) The circulation of lines of evenly spaced balls ensures smooth ball rotation.

(5) The absence of friction between balls allows high grease retention and low dust generation.

thk linear carriage applications

CNC Machine,Sewing Machine,ATC,Digitizer,Rooter,Lather Machine,Video Camera,

Elevator,Transmission,Automation,Medical Equipment etc.

thk linear carriage datasheet

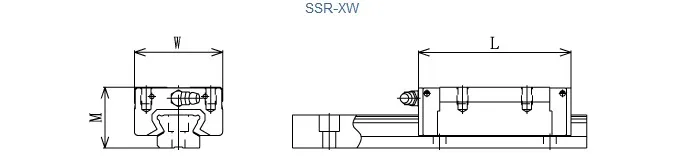

Model No.	Outer dimensions			Basic load rating
	Outer dimensions			Radial
	Height M	Width W	Length L	Dynamic rating C	Static rating C₀
	mm	mm	mm	kN	kN
SSR 15XW	24	34	56.9	14.7	16.5
SSR 15XWM	24	34	56.9	14.7	16.5
SSR 20XW	28	42	66.5	19.6	23.4
SSR 20XWM	28	42	66.5	19.6	23.4
SSR 25XW	33	48	83	31.5	36.4
SSR 25XWM	33	48	83	31.5	36.4
SSR 30XW	42	60	97	46.5	52.7
SSR 30XWM	42	60	97	46.5	52.7
SSR 35XW	48	70	110.9	64.6	71.6
