LOW LIQUOR RATIO/LOW POWER CONSUMPTION/LOW MAINTENANCE COST-ENERGY-SAVING FABRIC DYEING MACHINE

Product details
Automatic Grade:Automatic;Video outgoing-inspection:Provided;
Local Service Location:Viet Nam,Peru,Indonesia,India,Sri Lanka,Bangladesh;Operating Speed:450m/minute;
Power:250~300kgs/MP 5.5KW;Max Working Pressure:0.36Mpa;
After Warranty Service:Video technical support,Spare parts,Field maintenance and repair service;Payment Terms:L/C,T/T;
Vessel Type:High Temperature High Pressure;Port:Shanghai;
Plaiting System:XY;Weight:OH-300-1:3000Kgs;
Voltage:380V/50Hz(Optional);Inverters:MITSUBISHI;
Dimension(L*W*H):250~300kgs:3500*5400*3200mm;Warranty of core components:1 Year;
Machinery Test Report:Provided;Core Components:PLC,Pressure vessel,Pump;
Place of Origin:Jiangsu China;Low Liquor Ratio:1:3.5~4.5;
Brand Name:SUNSKY;Supply Ability:15 Set/Sets per Month;
Controller(Made in Germany):SETEX 787TCE +PLC;Condition:New;
Marketing Type:Hot Product 2019;Packaging Detail:Export Standard Packing by Container.Waterproof,wooden case,etc.;
Certification:ISO9001,CE;Warranty:18 Months;
Package Preview:;After-sales Service Provided:Engineers available to service machinery overseas,Free spare parts,Video technical support,Field installation, commissioning and training;
Production Capacity:300kgs per batch;Showroom Location:Viet Nam,India,Mexico,Thailand,Sri Lanka,Bangladesh;
Stainless Steel:S31603(316L);Max Working Temperature:140'C;
Applicable Industries:Manufacturing Plant,Textile Industry;



Product Description

SUNSKY OH series low liquor ratio 1:3.5~4.5,low power consumption,low maintenance cost,high-temperature high pressure overflow fabric dyeing machine is suitable for the scouring/bleaching/dyeing/washing of all types of knitted and woven fabrics :Cotton,Modal,Viscose,Tencel,Rayon,Wool,Acrylic,Lyocell,Nylon,Polyester blended and lycra blended,etc.

Machine is designed and manufactured in accordance with pressure vessel standards GB 150, with maximum working temperature of 140 degrees and maximum working pressure of 0.36 Mpa. All parts in touch with dye liquor is made of corrosion-resistant stainless steel S31603 (316L) material. With a specially-designed nozzle structure, it enables the fabrics in loose and expanded conditions during the dyeing process. It has an excellent performance in dyeing tight and heavy fabrics and can eliminate the crease mark problem,which is usually seen in other dyeing machines. Meanwhile, the machine has two ropes loading capability.

Technical Data
  1.  HT-HP Fabric Dyeing Machine,Low Liquor Ratio; 1:3.5~4.5
  2. Operating Speed: 200~450M per minute
  3. Maximum working temperature: 140'C
  4. Maximum working pressure: 0.36Mpa
  5. Temperature heating rate: 5'C per minute on average from 25 to 100'C, 2.5'C per minute on average from 100 – 130'C (Pressure of dry saturated vapor: 0.5-0.7Mpa)
  6. Temperature cooling rate: 3'C per minute on average from 130 to 100'C, 2'C per minute on average from 100 to 85'C (Cooling water pressure: 0.3Mpa, 25'C).



Model Nrs of Tubes Load (KG) Length(mm) Width(mm) Height(mm) MainPump Install Power(KW)
Power(KW)
OH-300-1 1 300 3500 5400 3400 5.5 13
OH-300-2 2 600 4800 5400 3400 7.5 19
OH-300-3 3 900 5900 5400 3400 15 26
OH-300-4 4 1200 7100 5400 3400 18.5 34
OH-300-6 6 1800 9500 5400 3400 37 54
OH-300-8 8 2400 12500 5400 3400 45 56
Flow chart comparasi

Execellent Performance by using new technologies:

  1. The low liquor ratio fabric dyeing machine vertical heat exchanger enables the condensated water to be drained instantly and reduces time in the shifting between hot and cold water.Also,it can avoid the formation of water scale,extend the service life of heat exchanger.
  2. The inlet pipe of the main pump is optimized,the height of water inlet is lowered and hence the water consumption is reduced significantly.
  3. The U-shaped fabric tank and synchronized fabric plaiting system increase the loading capacity by 20%,meanwhile,by plaiting in multiple directions,tangling problems can be completely avoided.
  4. Leading dyeing control system,in combination with dually balancing flow feeding system and constant pressure and stable flow rate,a uniform dyeing is guaranteed.
  5. The height of machine and operation platform is lowered and size of the operation platform is reduced,making operation much more convenient.The bottom of dye vat is specially designed so as to reduce water storage and lower liquor ratio effectively.
  6. With unique main vat circulation system,the temperature difference of entire dye vat from top and bottom and evennessof feeding is controlled at optimum conditions.
  7. Rotating spray is adopted from main vat cleaning and the whole vat is within the range of cleaning,ensuring a thorough cleaning.
  8. Dye liquor runs longitudinally,Longitudinal running of dye liquor and multidirection suction system greatly reduces the liquor ratio and optimizes the evenness of dye liquor.

Eco-friendly,energy saving and high-efficiency:

  1. The low liquor ratio dyeing machine reduces water consumption greatly.
  2. Comparing with traditional dyeing machine,the water/Chemicals/steam/power consumption can be saved more than 50%
  3. The lowest installed power,hence lowest electrical energy consumption.
  4. Fast dyeing cycle,enhanced productivity.Max loading Capacity in 300kg per chamber.
  5. User-friendly operation and easy maintenance.
Company Information

Sunsky is an experienced machinery manufacturer since 2004,it's located in Wuxi,JiangSu Province,China(50mins by train from Shanghai).We're focusing on dyeing and finishing machines for various textiles.After a decade of innovations and development, Sunsky becomes an expert in the field of textile dyeing machines, including normal temperature dyeing machine, high temperature dyeing machine, pre-treatment and after-treatment machines. We make designs according our customer's requirement, continuously improve our techniques, optimize designs and also take the issue of environment into consideration. Sunsky dyeing machine has been well received by domestic and foreign customers.On the basis of 10years professional manufacturing experience,we have successfully developed a new generation of liquor ratio 1:3.5~4.5(1:4.5 for cotton fabric), energy saving type OH/UH,and 1:2.8~3.5 yarn dyeing machine model SS241H.

Detailed Images

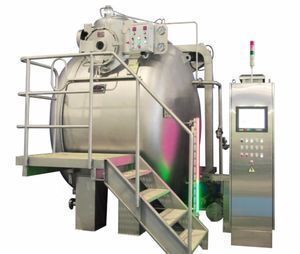

Model:OH-300-4(4Chambers)HTHP,Fabric Maximum loading capacity at 1,200kgs.Main Pump 18.5KW,total install power 34KW.Liquor ratio 1:3.5~4.5(1:4.5 max-cotton),High efficiency energy saving fabric dyeing machine.Low liquor ratio;Low power consumption;Low maintenance cost.
