Automatic cardboard box making flexo machine price carton printing slotting machine

Supplier: Cangzhou Ocean Carton Machinery Manufacturer Co., Ltd.
Region: Hebei, China
Contact: Mr Peter Lee
Price: $26800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Speed:	150 PCS/min;	Max Feeding size:	1400*2600;
Type:	automatic printer slotter die cutter;	Product name:	Automatic High Speed High Definition Printing Machine;
Automatic grade:	Full-Atuomatic;	Package Preview:	;
Colors:	1--6colors;	Supply Ability:	10 Set/Sets per Month;
Applicable Industries:	corrugated carton making industry;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
After-sales Service Provided:	1 Year;	Voltage:	220V/380V/440V;
Place of origin:	Dongguang Cangzhou Hebei China;	Port:	Tianjin xingang;
Packaging Detail:	plastic film for Automatic cardboard box making flexo machine price carton printing slotting machine;	Application:	Carton Box Making Machine;
Brand name:	Huali;

Automatic cardboard box making flexo machine price carton printing slotting machine

Product Description

Function and characteristic:

1.Lead edge feeding system , vaccum adsorption transmission, suitable for all kinds of corrugated cardboard. Increase tissue paper board and bend cardboard transmission stability, high speed and precision.

2.Main motor. fan motor phase motor controlled by inverter, adjust speed smooth, save electricity, accurated and reliable.

3.High precision gear transmission, accurate and durable: 20CrMnTi high-frequency quenching, hardness HRC58-62, up to the national level 6 precision, use for a long time, high overprinting accuracy.

4.Total machine automatic reset zero system,storing common order, change order quickly, operation is convenient.

5.Main drive bearing Japan NSK, other bearing brands for domestic HRB, ensure the transmission stability.

6.Mechanical automatic uo oil lubrication system, equiped with automatic balancing device, increase the service life of gear.

Moldel	920	1224	1426	1628
Max speed (pcs/min)	300	250	180	160
Feeding precision(mm)	±1
Min sheet size(mm)	300*600	420*600	450*600	450*600
Max sheet size(mm)	860*2100	1150*2500	1350*2700	1500*2900
Skip sheet size\|(mm)	1200*2100	1500*2500	1800*2700	2000*2900
Max printing area(mm)	900*2000	1200*2400	1400*2600	1600*2800
Printing precision(mm)	±0.5
Plate thickness(mm)	7.2
positive knife Min slotting distance negative knife	130130130*130	140140140*140	150150150*150
positive knife Min slotting distance negative knife	23065230*65	23070230*70	24075240*75
Max slot depth	230	300	360	400
Max slot depth	increase the blade, increase the slot depth
Slotting precision(mm)	±1
Max die cutting size(mm)
Die cutting precision(mm)	±1

Details

Feeding Unit

1,Roller type front feeding structure,rounds,multipoint suction feeding,high friction,high speed,paper feeding
smoothly and accurate.
2,Frequency conversion of suction can adjust the wind volume,and the wind pressure can be adjusted by the
size of the paperboard,increase the thin board and the bend board convey stability and accurately

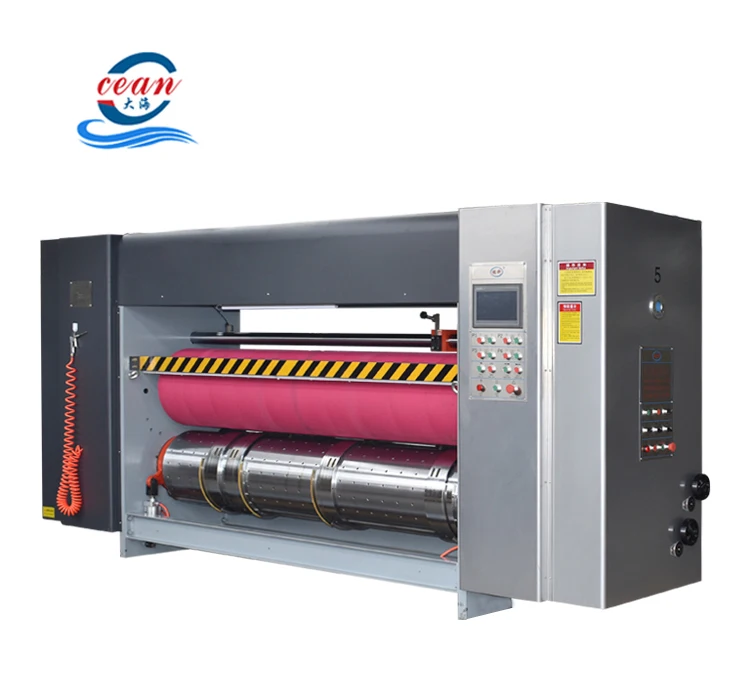

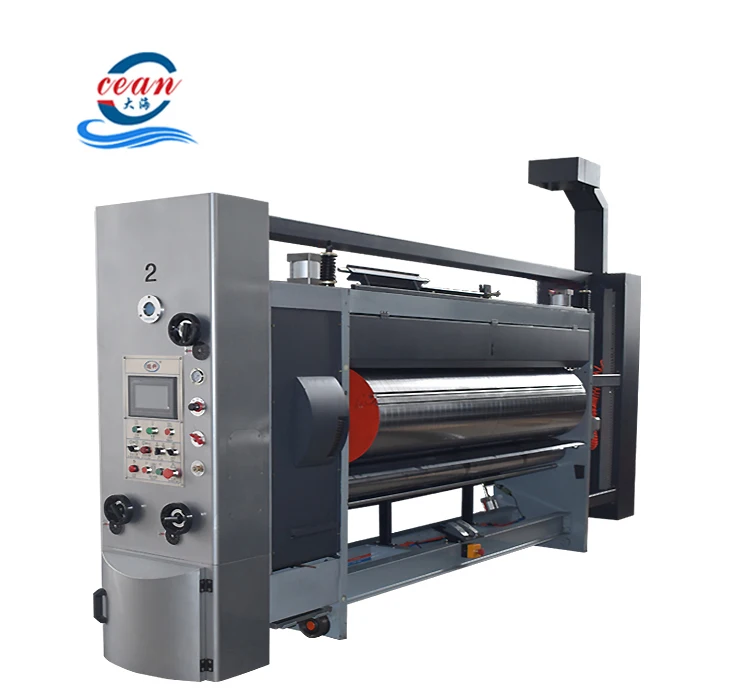

Printing Unit

1.The printing roller and trace pressing roller adopt good quality without gap steel roller ,surface is treated by lapping finish, after balance correct and hard chrome plating, smooth operation.
2.Adopting the hang printing plate system,it is easy to change printing plate ,and installed switch by feet ,which is convinent to hang printing plate

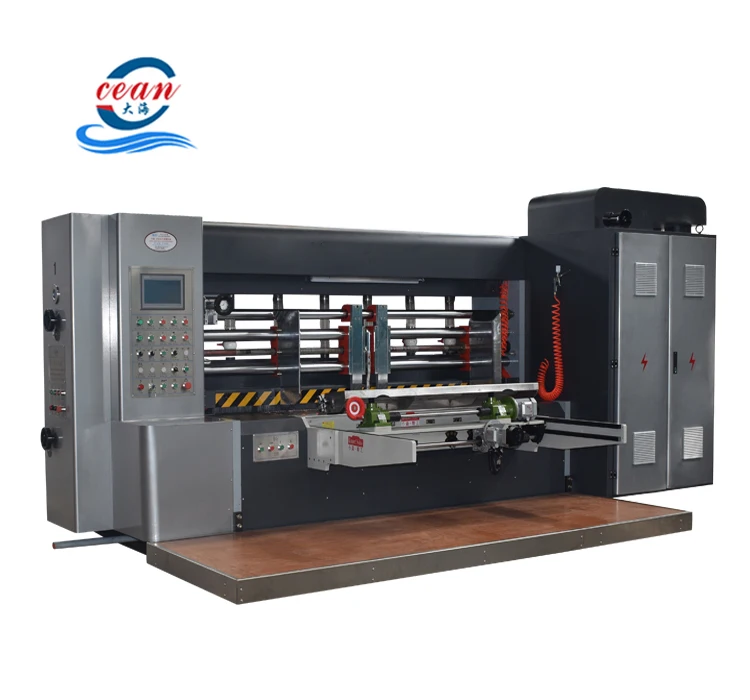

Die Cutting Unit

1. mechanical type horizontal 40 mm, move device, die-cutting equalizer automatic compensation linear speed , can make the die cutting rubber gasket even wear, prolong service life.

2.repair adopt electric repair device, improve the rubber gasket repeat utilization rate, can repair 3-4 times.

3. die cutting roller automatic pneumatic separation device, reduce wear maxduia rubber gasket , thus improve the service life.

Can adopt slotting blade to make nomal shape carton

Company Information

Our Company is the professional manufacture for the carton box machinery , now we already export more than 40 counties , like : USA ,Mexico ,Poladn, Spain, Russia ,South korea ,Malaysia ,India,egypt ,Kenya and so on . we always stick to the "good quiality , high credibility " business purpose , adhering to the " pioneering spirit , realistic and innovative ,strick management, keep improving " the enterprise spirit ,establish a "people - oriented " managenment philosophy and the " customer first " business strategy . Our company produces complete product specification ,elegant appearance, complete machine type, to meet the needs of different customers.Our product has a reputation for timely delivery, good service to win the user's high praise.ln the future, we will take the market-oriented, science and technology development as main power , sincerely to cooperate with the users, constantly to updated products, continuously improve product quality, perfect after-sales service, sincerely return society.

Packaging & Shipping

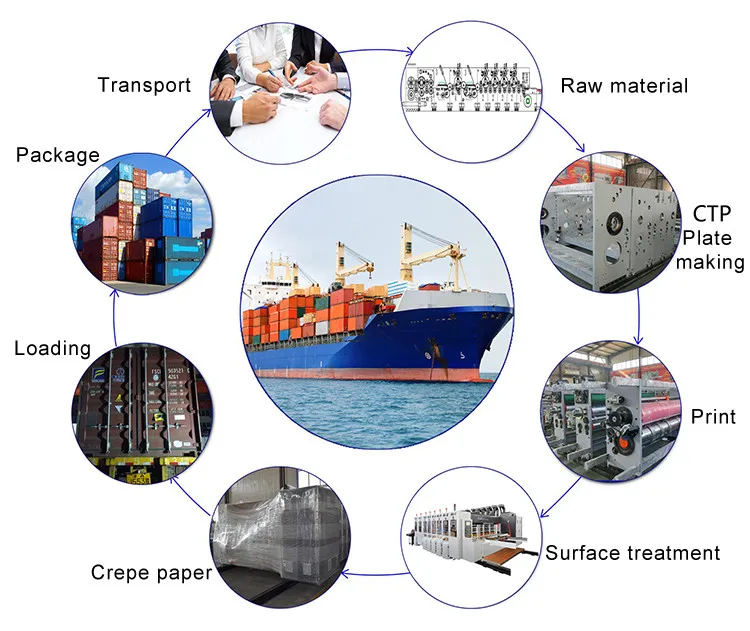

Company process

Our Services

Pre-sales

As long as you tell us your detail requirement then we will supply the appropriate and cost-effective machines for you. And we have the R&D department and can customize for you. For all your request, we will supply best suggestion and solution on time.

On sale

During the manufacturing time, if you have any query, you can contact with us freely You could contact us by e-mail, or by Skype, Whatsup, or Wechat and QQ.

Welcome you to visit our factory to check the machine. We will pick you up from airport or train station.

After-sale service

We have the engineers available for overseas service, Installation and setup and train your worker for running the machine. If you meet anything you can not solve then you can conatct us freely. We will cooperate with you to solve it.

All our machine will be tested by our QC department before shipping, to ensure every machine will work well after they reach you. The QC is through all production, from raw materials, processing, assembling, finished machine testing.

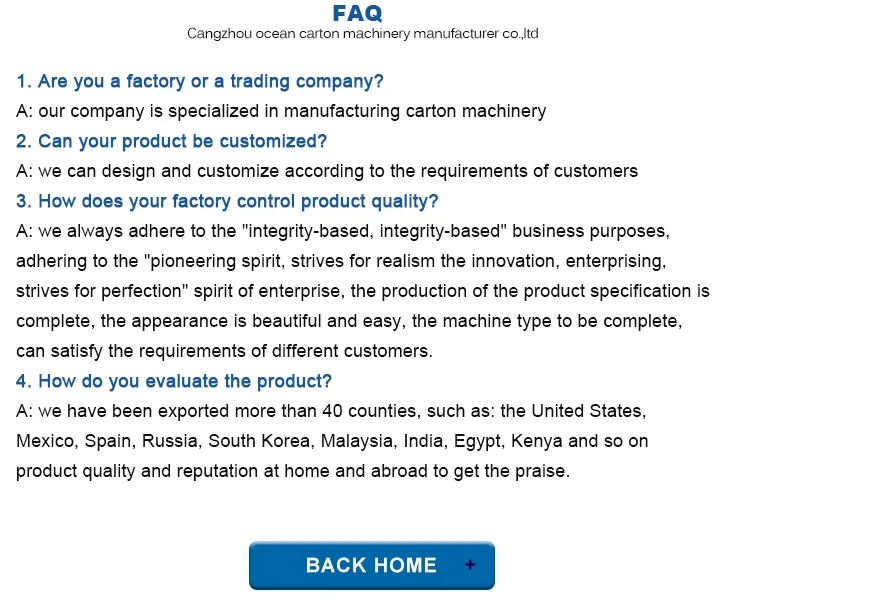

FAQ
