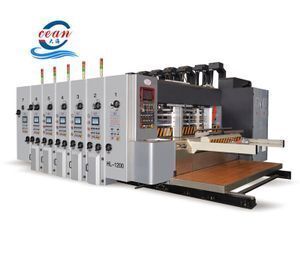

High definition high speed flexo printer slotter die-cutter stacker machine

Supplier: Cangzhou Ocean Carton Machinery Manufacturer Co., Ltd.
Region: Hebei, China
Contact: Mr Peter Lee
Price: $50000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	printing colors:	1-6 colors;
Type:	flexographic printers;	Product name:	automatic high speed high definition printing machine;
max working speed:	200pcs/min;	tinted precision:	0.5mm;
Machine Type:	High Speed Flexo Printing Machine;	Supply Ability:	10 Set/Sets per Month;
electric compoment:	schneider ,simens;	feeding way:	automatic;
die cutting precison:	1mm;	printing plate thickness:	7mm;
Application:	Carton Box Making;	Port:	tianjin port;
Packaging Detail:	Bubble film,Metal tray and wood packaging;

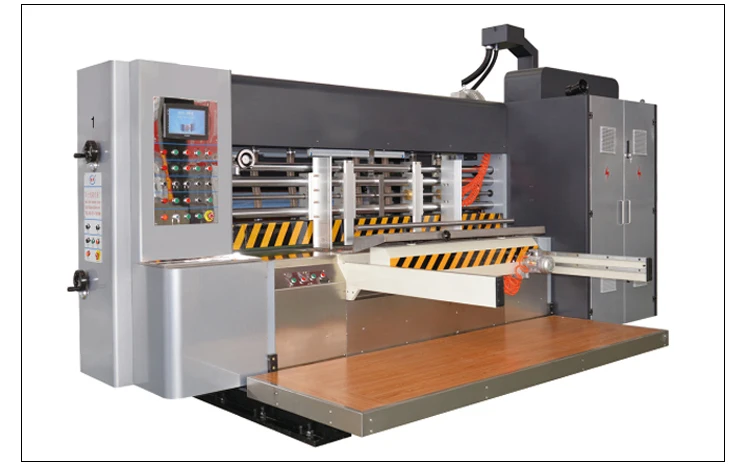

Product show

Frequency conversion of suction can adjust the wind volume,and the wind pressure can be adjusted by the size of the paperboard,increase the thin board

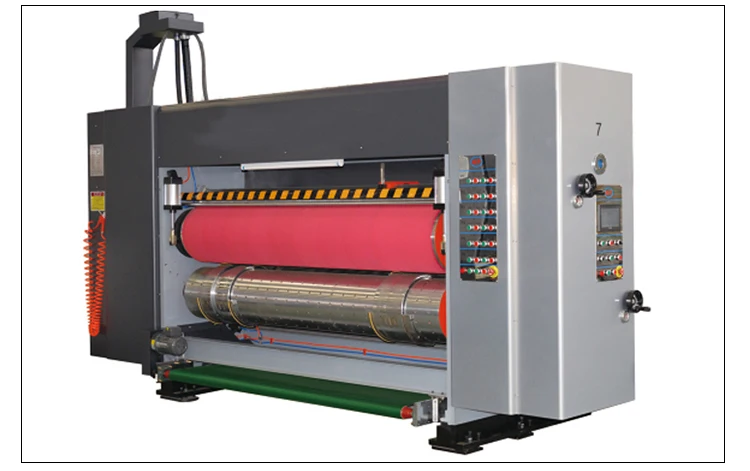

Double conveyor roller structure:A set of paper feed roller adopt pneumatic type elastic paper plastic shaft,in order not to destroy the strength of the corrugated paperboard.

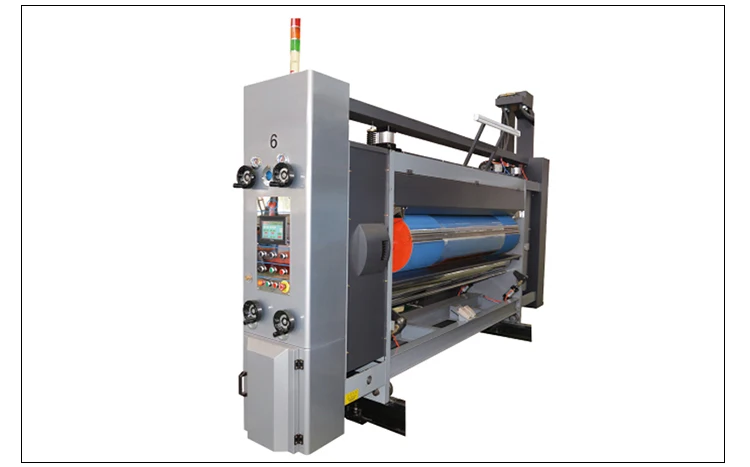

The printing roller and the transmission shaft are all adopt high quality steel,computer dynamic balancing correction,eliminate the centrifugal force.Grinding process,hard chrome plating.

Differential compensation device,automatic adjust the revolutions of the rubber gasket roll,make the shape of the die cutting carton box as same as the knife mold.Rubber roller cutting repair mechanism,rubber gasket can be used repeatedly,thereby,it can greatly save the cost.

Color group	to be configured according to user’s needs
Printing paper	A,B,C,A/B,B/C and A/B/C type corrugated paperboard (the maximum interval 11mm)
Width of machine inside	2200mm	2600mm		2800mm
Max.paper size	900×2000mm	1200×2400mm		1400 ×2600mm
Max.printing size	900×1800mm	1200×2200mm		1400 ×2400mm
Skip feeding paper	1100×2000mm	1400×2400mm		1600 ×2600mm
Min.paper size positive knife negative knife	300×640mm 300×720mm	350×720mm 350×740mm		400 ×720mm 400 ×740mm
Printing plate thickness	7.2mm	7.2mm		7.2mm
Design speed(piece/min)	200pcs/min	180pcs/min		150pcs/min
Economic speed(piece/min)	80-180pcs/min	80-160 pcs/min		80-130pcs/min
Tinted precision	4( color) ±0.5mm	4( color) ±0.5mm		4( color) ±0.5mm
Slotting precision	±1.5mm	±1.5mm		±1.5mm
Max.slotting depth	7 ×220mm	7×300mm		7×350mm
Max.slotting depth	increase the blade, increase the slot depth
Min. Slot distance positive knife negative knife	150 ×150 ×150 ×150mm 250 ×90 ×250 ×90mm	170×170×170×170mm 260×90×269×90mm	170×170×170×170mm 260×90×269×90mm
Max.die-cutting size	900 ×1900mm	1200×2300mm	1400×2500mm
Printing plate diameter (contain plate thickness)	300 mm	405mm	480mm

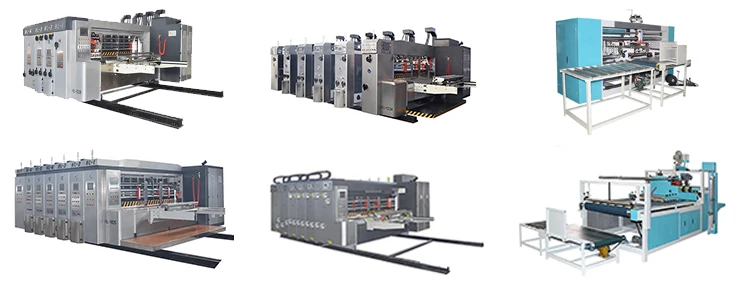

Hot sale product

Company profile

Our Company is the professional manufacture for the carton box machinery , now we already export more than 40 counties , like : USA ,Mexico ,Poladn, Spain, Russia ,South korea ,Malaysia ,India,egypt ,Kenya and so on . we always stick to the "good quiality , high credibility " business purpose , adhering to the " pioneering spirit , realistic and innovative ,strick management, keep improving " the enterprise spirit ,establish a "people - oriented " managenment philosophy and the " customer first " business strategy . Our company produces complete product specification ,elegant appearance, complete machine type, to meet the needs of different customers.Our product has a reputation for timely delivery, good service to win the user's high praise.ln the future, we will take the market-oriented, science and technology development as main power , sincerely to cooperate with the users, constantly to updated products, continuously improve product quality, perfect after-sales service, sincerely return society.
