Applicable Industries: | Other; | Packaging Detail: | Cartons(1pic/ctn) 290*290*225mm in seaworthy cartons or customized. 2017 Hydroponic Ventilation 4/6/8/10 inch sirocco fan blower; |
Warranty: | 3 years; | Type: | Centrifugal Fan; |
Model Number: | DPT20-54A; | Certification: | ce,CCC; |
Connection box: | ABS(FR); | Motor: | External rotor motor; |
Payment Terms: | L/C,T/T; | Blade Material: | Cast Iron; |
Mounting: | Duct Fan; | Casing: | ABS(FR) by injection molding; |
Port: | Zhongshan; | Class: | Insulation Class F, Enclosure class IP 44; |
Impeller: | Backward-curved centrifugal impeller; | Ball Bearing: | NSK ball bearing; |
Supply Ability: | 3000 Piece/Pieces per Day; | name: | sirocco fan blower; |
Dimension: | Packing: 290*290*225mm; | Place of Origin: | Guangdong China; |
Brand Name: | Nussun; | Color: | Grey and any other color; |
Customized support: | OEM; | After-sales Service Provided: | Overseas service center available,Free spare parts; |
Electric Current Type: | AC; |

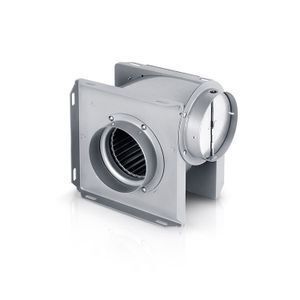

Hydroponic Ventilation 4/6/8/10 inch sirocco fan blower
Dimensions Table ↑↑ | ||||||
Model | DJT100P | DJT125P | DJT150P | DJT160P | DJT200P | DJT250P |
A | 100 | 125 | 150 | 160 | 200 | 250 |
B | 245 | 245 | 350 | 350 | 350 | 350 |
C | 193 | 193 | 218 | 218 | 220 | 200 |
D | 25 | 25 | 30 | 30 | 30 | 30 |
E | 40 | 40 | 40 | 40 | 40 | 40 |
performance parameter | ||||||||||
Model | Voltage(V) |
frequency (Hz) |
Airflow |
Static Pressure (Pa) |
Noise (dB) |
Speed (r.p.m) |
Power (W) |
current (A) |
weight (kg) |
|
CMH | CFM | |||||||||
DJT10U-25P | 220~230 | 50 | 275 | 163 | 340 | 63 | 2550 | 69 | 0.32 | 2.3 |
DJT10A-25P | 110 | 60 | 325 | 193 | 440 | 65 | 3020 | 78 | 0.71 | 2.3 |
102 | 220~230 | 50 | 375 | 222 | 325 | 62 | 2475 | 74 | 0.34 | 2.4 |
DJT12A-35P | 110 | 60 | 435 | 256 | 400 | 65 | 2950 | 83 | 0.75 | 2.4 |
DJT15U-45P | 220~230 | 50 | 575 | 341 | 400 | 65 | 2210 | 96 | 0.44 | 3.4 |
DJT15A-45P | 110 | 60 | 840 | 498 | 485 | 68 | 2650 | 128 | 1.15 | 3.4 |
DJT16U-45P | 220~230 | 50 | 640 | 380 | 396 | 65 | 2470 | 127 | 0.60 | 3.6 |
DJT16A-45P | 110 | 60 | 880 | 522 | 475 | 66 | 2960 | 133 | 1.20 | 3.6 |
DJT20U-46P | 220~230 | 50 | 990 | 587 | 575 | 66 | 2280 | 166 | 0.77 | 3.8 |
DJT20A-46P | 110 | 60 | 1000 | 593 | 730 | 68 | 2740 | 178 | 1.62 | 3.8 |
DJT25U-66P | 220~230 | 50 | 1080 | 640 | 580 | 67 | 2350 | 174 | 0.80 | 3.9 |
DJT25A-66P | 110 | 60 | 1160 | 688 | 705 | 69 | 2820 | 190 | 1.73 | 3.9 |
Welcome to contact us and send samples for free
Q: Are you trading company or manufacture?
A:We are the factory and manufacture for ventilation fans with top high quality and competitive price.
Q:How long is your delivery time?
A:For samples order, 3-5 working days, For mass production, 20-25 working days.
Q:Do you provide the sample? Is it free to extra.
A:Yes, we would like to support you one free sample, but not support the actually freight cost.
Q:What is your terms of payment?
A:TT and Ali trade assurance.
Hydroponic Ventilation 4/6/8/10 inch sirocco fan blower
Hydroponic Ventilation 4/6/8/10 inch sirocco fan blower
Hydroponic Ventilation 4/6/8/10 inch sirocco fan blower
