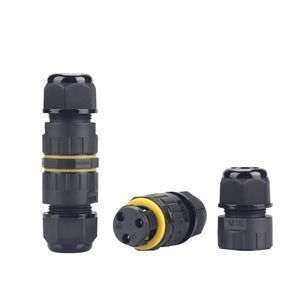

Type: | ADAPTER; | Keywords: | Waterproof Connector; |
Certificate: | SAA, TUV, CE, ROHS, UL,; | Rated Voltage: | 400V; |
Waterproof protection: | IP68; | Selling Units: | Multiple of 1,000; |
Rated Current: | 17.5A; | Package size per batch: | 42X30X34 cm; |
Color: | Black; | Wire Section: | 0.5mm2~1.5mm2; |
Gross weight per batch: | 17.5 KG; | Contacts: | Brass; |
Brand Name: | E-Weichat; | Model Number: | EW-M16; |
Gender: | Other; | Application: | Electrics,such as LED lightings, outdoor lightings; |
Place of Origin: | Guangdong China; | Packaging Detail: | inner: 100 PCS/Bag outer: 1000 PCS/CTN It can be changed according to your requirement Electrical Outdoor Led Lighting Plastic Water Proof IP68 Power M16 2Pin Connectors; |
Temperature Range: | -40℃~+105℃; | Material: | PA66/Copper; |
Pins: | 2P; |
Specifications |
Number of Poles | 2Pin |
Operating current | 17.5A |
Operating voltage | 400V |
Protection against solid/water (IP) | IP68(4m, 365 days) |
Wire cross-section min.-max. (stranded cable) |
0.5mm² - 1.5mm² |
Wire cross-section min.-max. (solid cable) |
0.5mm² - 1.5mm² |
Cable Diameter min-max | 3.5mm- 7mm,7mm- 10mm (for cables with diameter cables please take the proper accessory) |

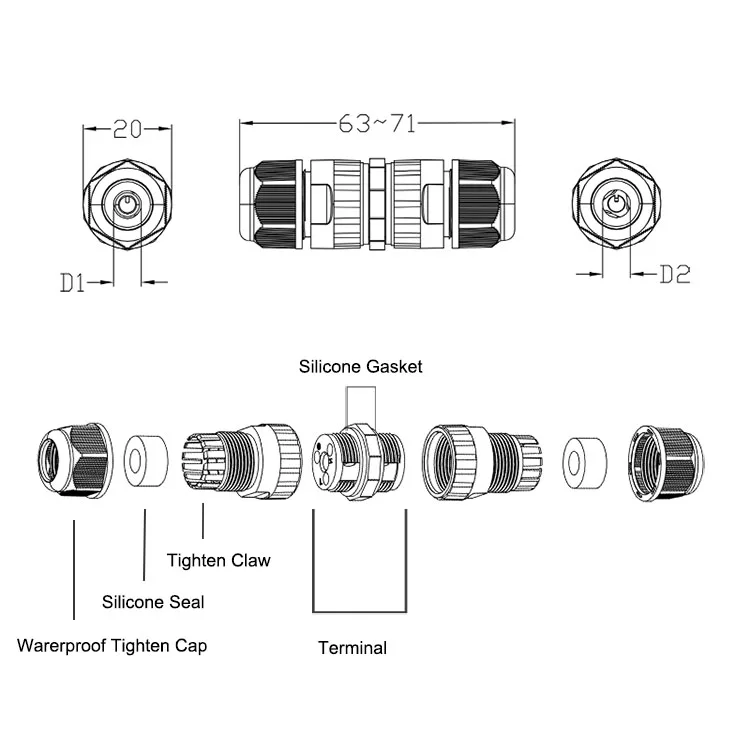

Details |
Connector housing | PA66 UL94 V2 |
Cable gland | |
Sealing | silicone |
Grommets | silicone |
Contacts | brass |
Screws | Zinc |
Material properties | Halogen Free |
Operating temperature range | -40℃/+105℃ |
Shenzhen E-Weichat Technology Co., Ltd |
Shenzhen Weichat Technology, established in 2016, is a professional manufacturer engaged in the research, development, production, sale and service of IP68 Waterproof Connectors;Cable Gland;Push Wire Connector.High quality and continuous improvement is key to our service.So we adopting advanced equipment and high-quality raw materials(Pa66,silicone,brass). All our products are through CE \ ROHS \ UL certification.And we can design and manufacture the product based on your ideas or your requirements.
Click here for more information!
Why Choose Us? |
Customers Reviews |
Click here for more information!
Trade term: EXW, FOB, CIF
Port: Shenzhen
MOQ: 300pcs
Sample Availability: Yes
Supply capability: 10000 pcs/week
Shipment: ocean or air transportation, international express
Payment: T/T, Western Union, etc
Normal lead time: 3 days for sample order; 7-15 days for the production
Packing: carton box
Q 1. How can we get the samples? Is it free?
We provide free samples by express, but the express charge should be paid by your side .
Q 2. Do you have a minimum order?
Yes, usually our MOQ is 300pcs
Q 3. What about the lead time?
We have this item in stock, mass production needs further discussion.
Q 4.Can I print my logo on the watertight ip68 connectors?
Yes. We welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our sample.
Q 5.How long is the delivery time?
It depends on the quantity.
A few goods,we promise to sent in 1-3 days. Most have in stock.
A big order,we promise to sent in 15-30 days.
Q 6.Which shipping method do you provide?
A few goods will be sent by express.
A big order can be sent by air or by sea, just according to your demand.
